Installation Procedure

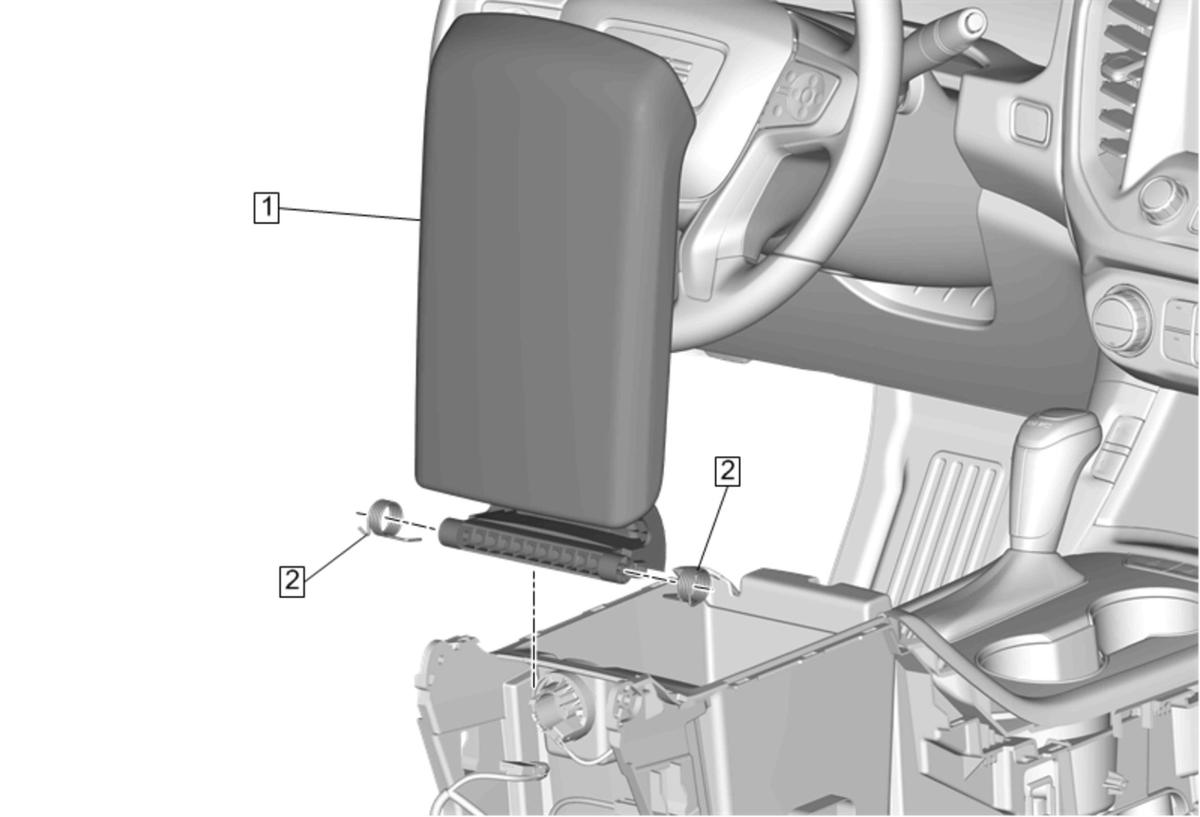

  1. Install the front floor console armrest (1) to the front floor console assembly.
    GM4418795Courtesy of GENERAL MOTORS COMPANY

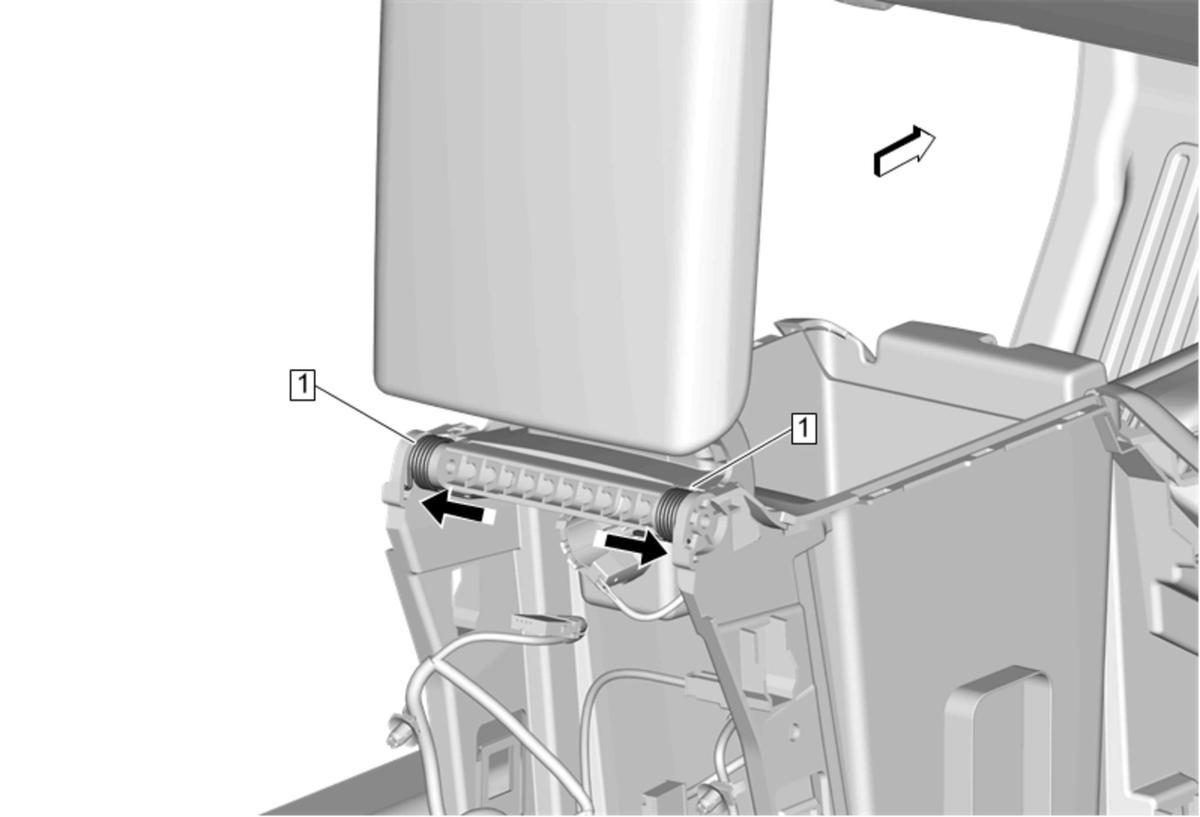

  2. Attach the ends of the front floor console armrest hinge spring (1) to the front floor console assembly.
    GM4418793Courtesy of GENERAL MOTORS COMPANY

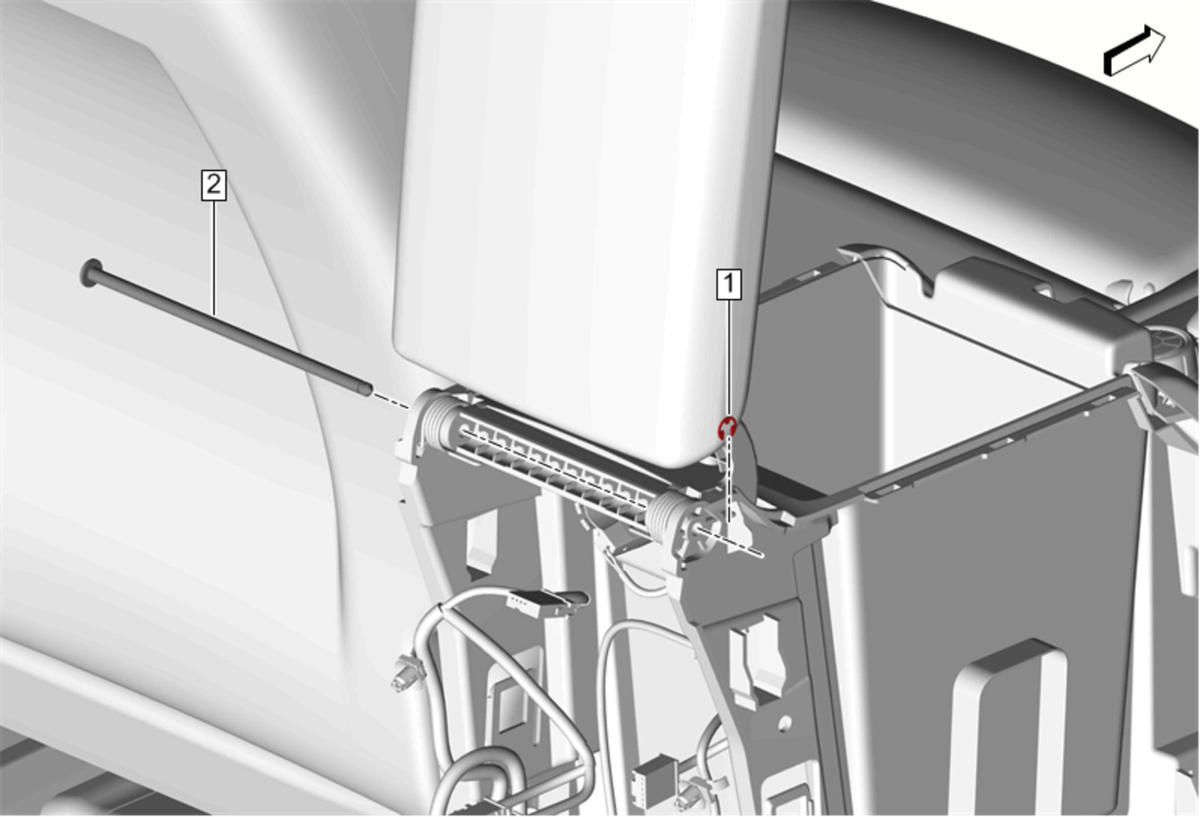

  3. Install the front floor console compartment door hinge pin (2) to the armrest assembly.
    GM4418788Courtesy of GENERAL MOTORS COMPANY
  4. Install the front floor console compartment door hinge pin retainer (1) to the hinge pin.
  5. Front Floor Rear Console Side Trim Panel - Right Side - Install Front Floor Rear Console Side Trim Panel Replacement - Right Side
  6. Front Floor Rear Console Side Trim Panel - Left Side - Install Front Floor Rear Console Side Trim Panel Replacement - Left Side
