Right Rear Door Components
NOTE:

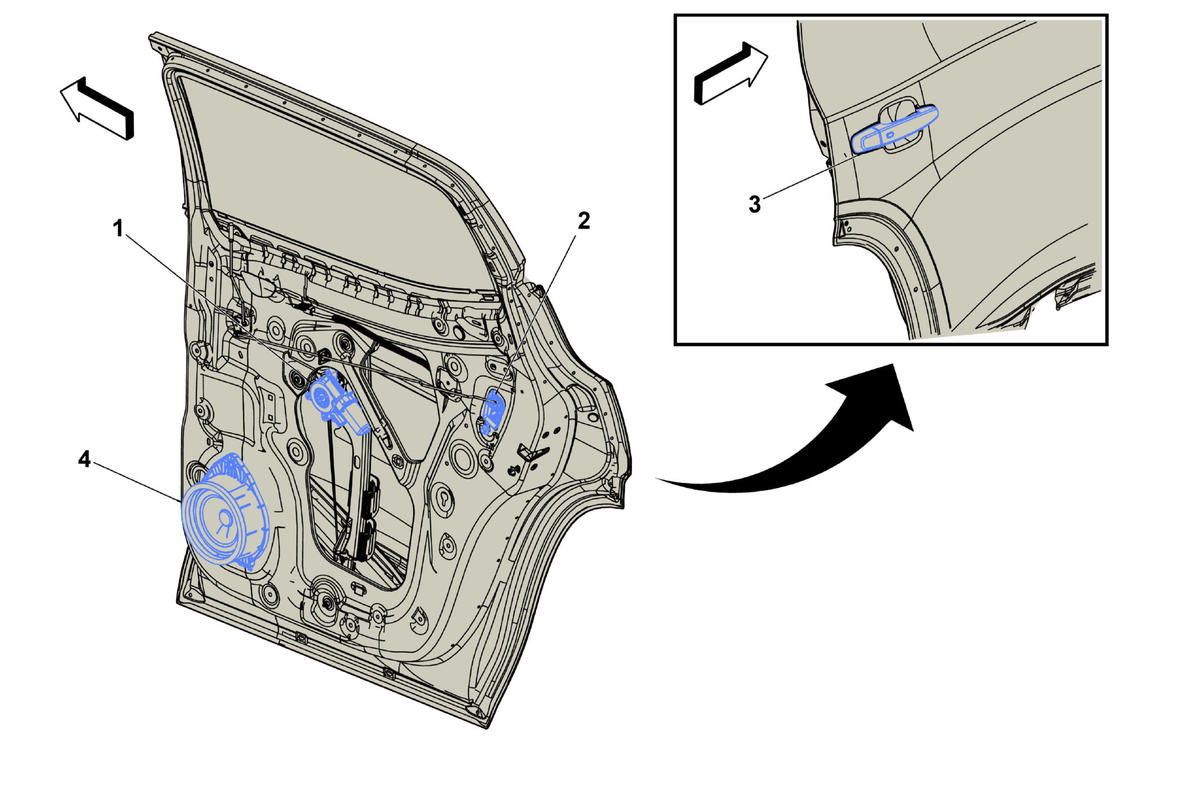

Callouts in the following chart represent components shown in graphic above.
Right Rear Door Components
| Component Name | Callout |
|---|---|
| M74RR Window Motor - Right Rear (AEQ) M74RR Window Motor - Right Rear | 1 |
| A23RR Door Latch Assembly - Right Rear A23RR Door Latch Assembly - Right Rear | 2 |
| A24RR Door Handle Assembly - Right Rear Exterior (ATH/ATS) A24RR Door Handle Assembly - Right Rear Exterior (ATH/ATS) | 3 |
| P19AM Speaker - Right Rear Door P19AM Speaker - Right Rear Door (UQA) , or P19AM Speaker - Right Rear Door (UQF) | 4 |
