Outside Rearview Mirror Glass Replacement

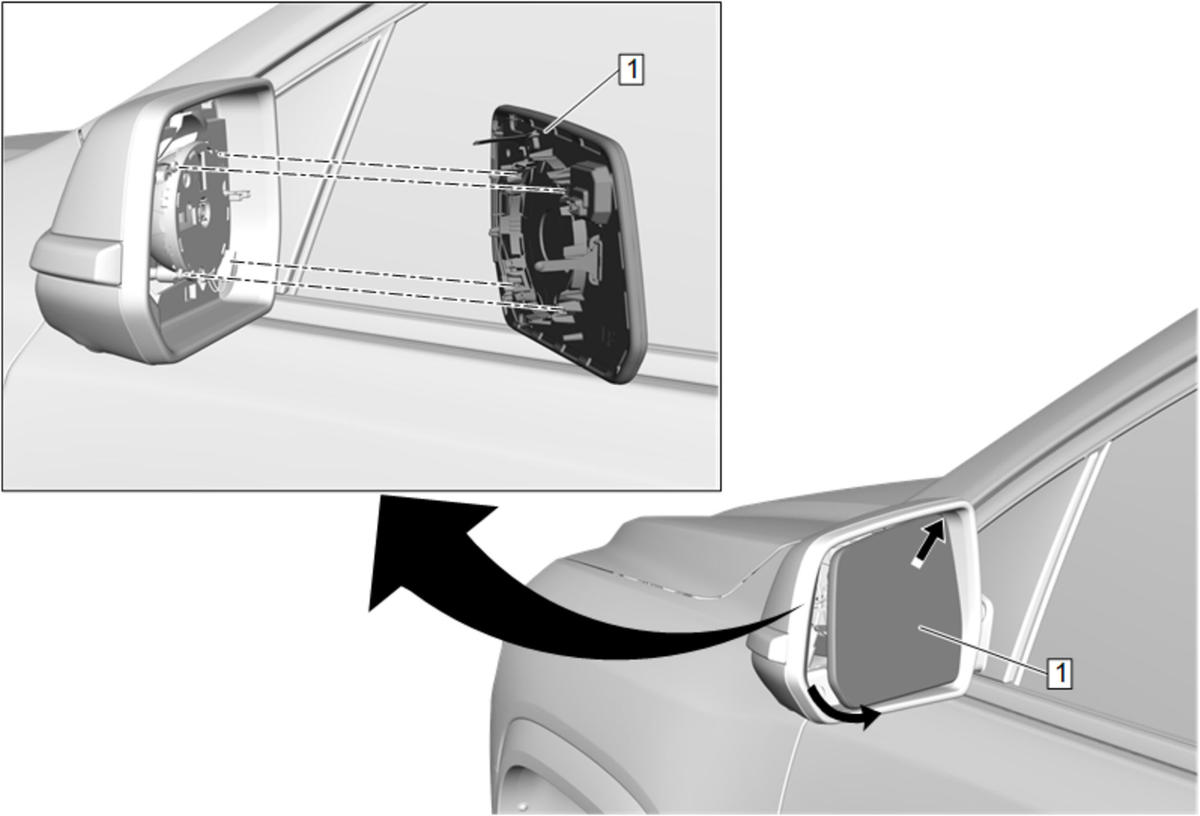

GM5342700Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name
1
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Outside Rearview Mirror Glass

Procedure

  1. Place masking tape over the mirror glass.
  2. Apply pressure inward at the top of the mirror face until full travel is reached.
  3. Retaining pressure on the mirror face, pull outward until the mirror face is released.
  4. Disconnect the electrical connectors.
