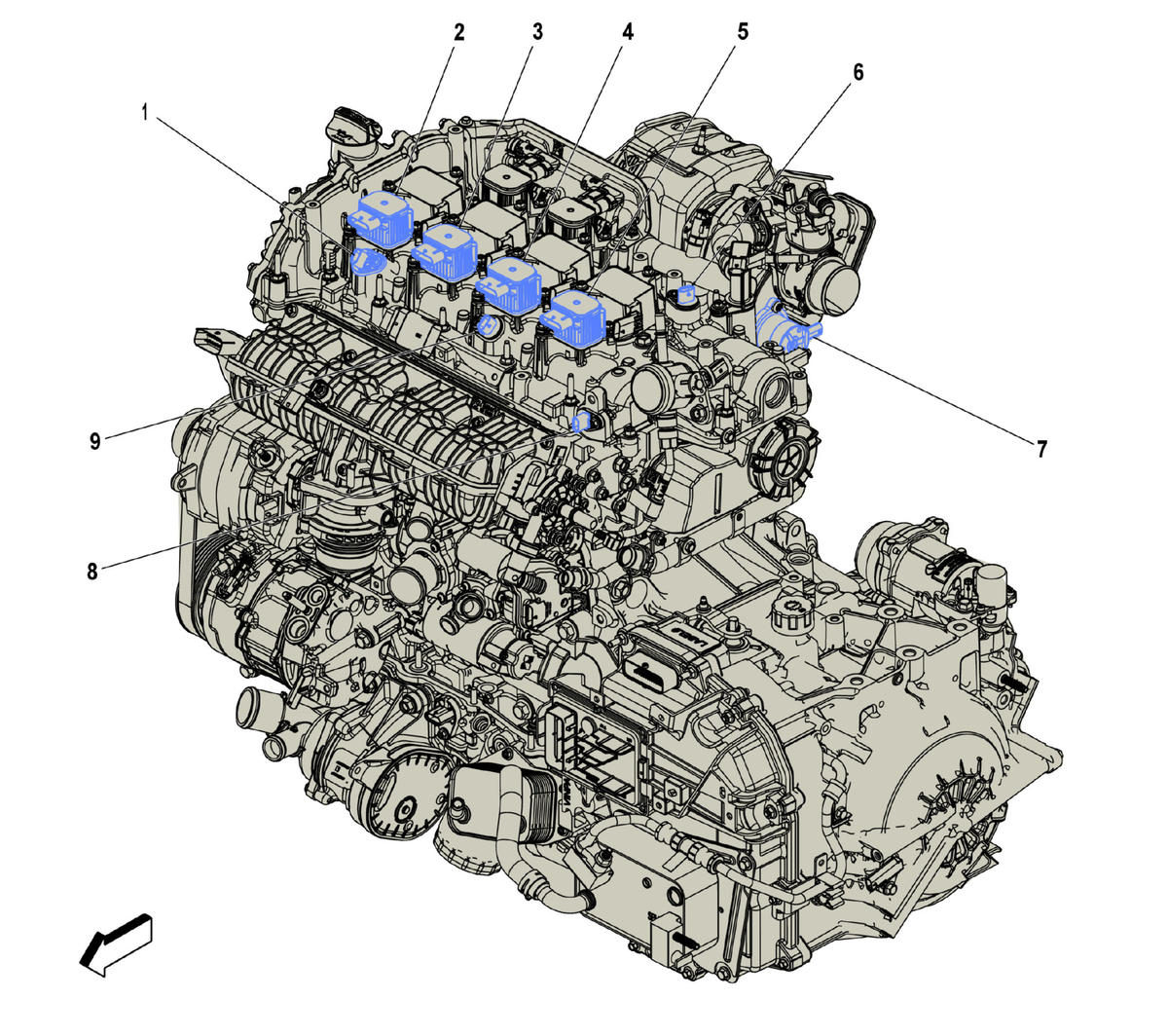

Engine Components - Left Side (LSY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Engine Components - Left Side (LSY)
| Component Name | Callout |
|---|---|
| B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake | 1 |
| M129A Intake Camshaft Profile Actuator 1 (LSY) M129A Intake Camshaft Profile Actuator 1 (LSY) | 2 |
| M129B Intake Camshaft Profile Actuator 2 (LSY) M129B Intake Camshaft Profile Actuator 2 (LSY) | 3 |
| M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 (LSY) | 4 |
| M129D Intake Camshaft Profile Actuator 4 (LSY) M129D Intake Camshaft Profile Actuator 4 (LSY) | 5 |
| Q40 Turbocharger Bypass Solenoid Valve Q40 Turbocharger Bypass Solenoid Valve | 6 |
