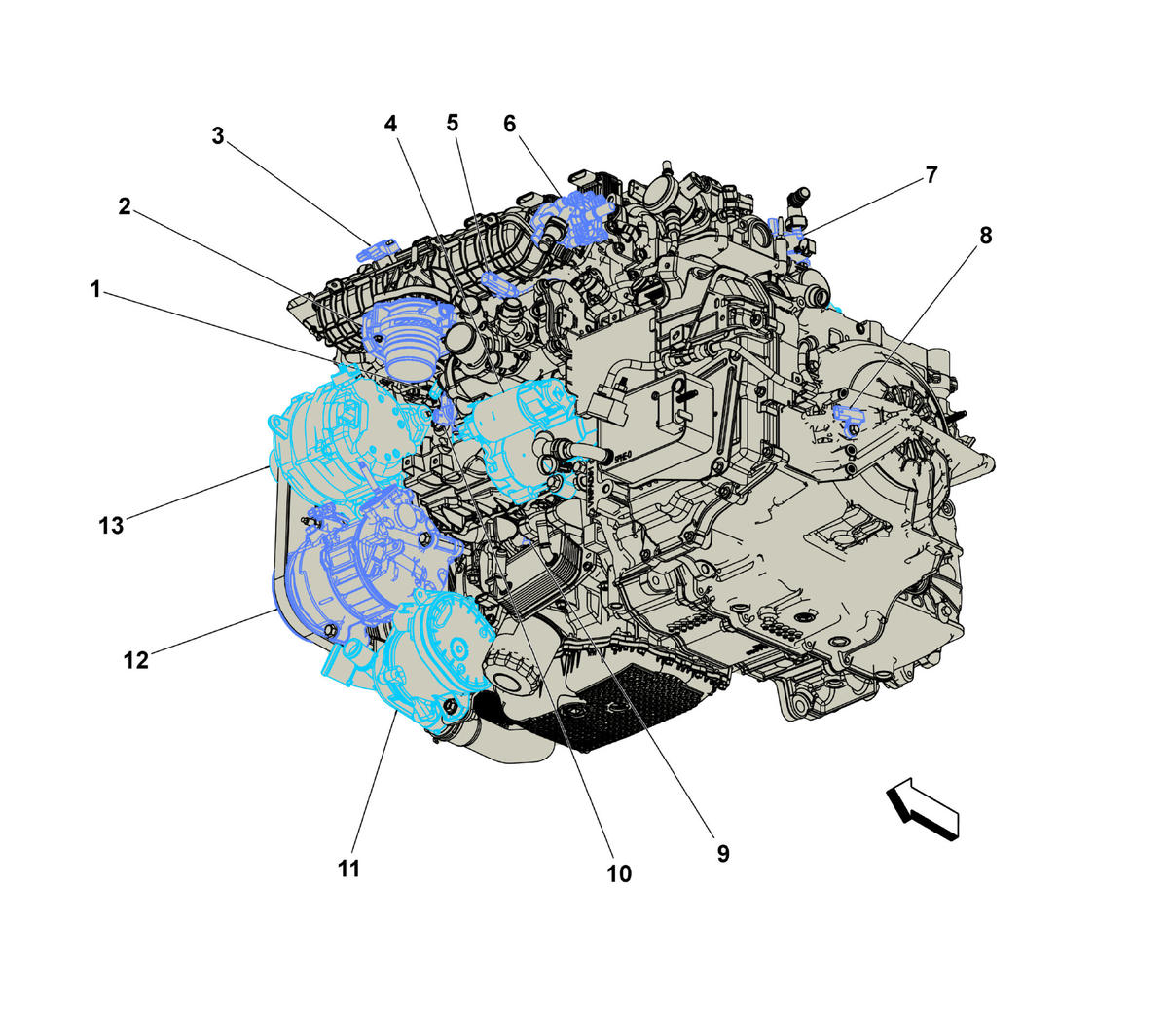

Engine Components - Left Bottom (LSY)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Engine Components - Left Bottom (LSY)
| Component Name | Callout |
|---|---|
| B34B Engine Coolant Temperature Sensor 2 (LSY) B34B Engine Coolant Temperature Sensor 2 (LSY) | 1 |
| Q38 Throttle Body Q38 Throttle Body | 2 |
| B65 Intake Manifold Pressure and Air Temperature Sensor (LSY) B65 Intake Manifold Pressure and Air Temperature Sensor (LSY) | 3 |
| M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2 (-LSY) | 4 |
| B68B Knock Sensor 2 B68B Knock Sensor 2 (LSY) | 5 |
| G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump | 6 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LSY) | 7 |
| B14E Transmission Input/Intermediate Shaft Speed Sensor B14E Transmission Input/Intermediate Shaft Speed Sensor | 8 |
| B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LSY) | 9 |
| Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve | 10 |
| G59 Engine Coolant Pump G59 Engine Coolant Pump | 11 |
| Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve | 12 |
| G13 Generator G13 Generator X1 , or G13 Generator X2 | 13 |
