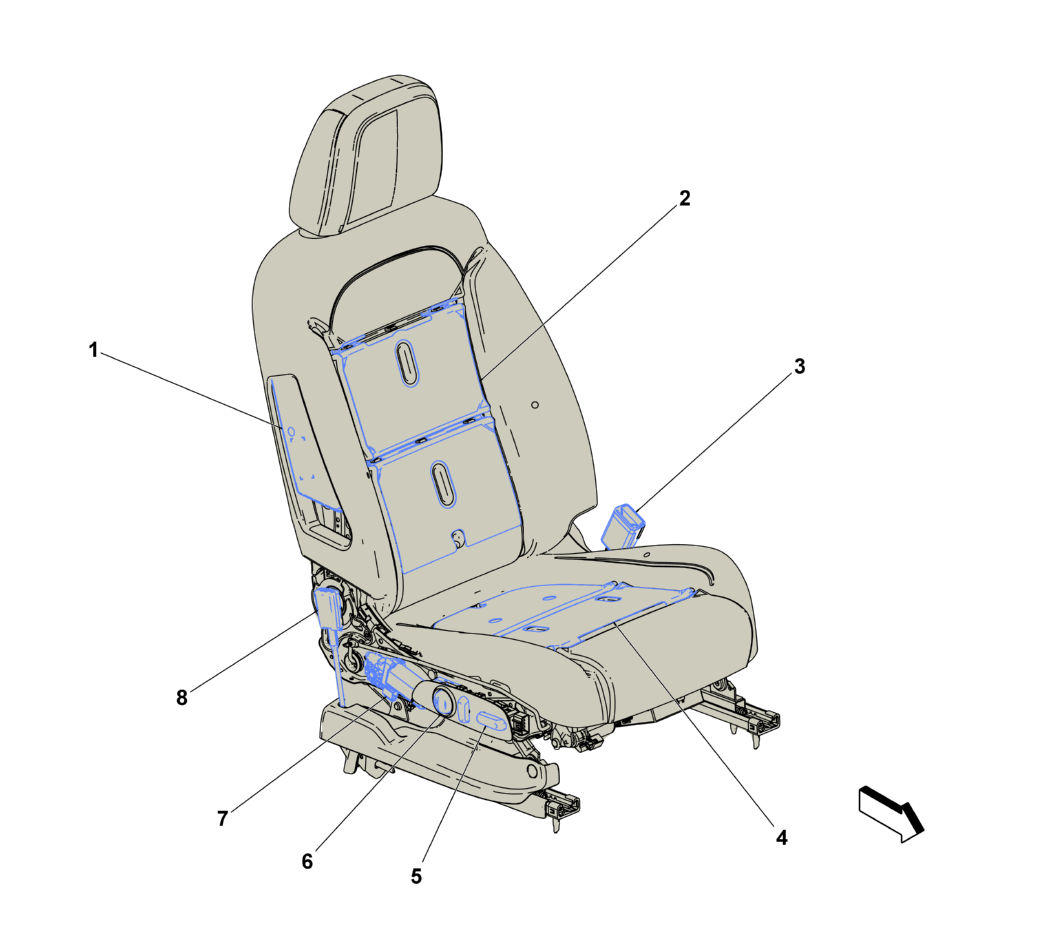

Driver Seat Components (Holden)
NOTE:
Callouts in the following chart represent components shown in graphic above.
Driver Seat Components (Holden)
| Component Name | Callout |
|---|---|
| F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver | 1 |
| E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1) | 2 |
| B88D Seat Belt Switch - Driver | 3 |
| E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion (KA1) | 4 |
| S64D Seat Adjuster Switch - Driver (AHT) S64D Seat Adjuster Switch - Driver | 5 |
| S65D Seat Lumbar Support Switch - Driver (AL9) S65D Seat Lumbar Support Switch - Driver (AL9) | 6 |
| M55D Seat Rear Vertical Motor - Driver (AHT) M55D Seat Rear Vertical Motor - Driver (AHT) | 7 |
| F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver | 8 |
