Installation Procedure

  1. Battery Monitor Module (3) - Install

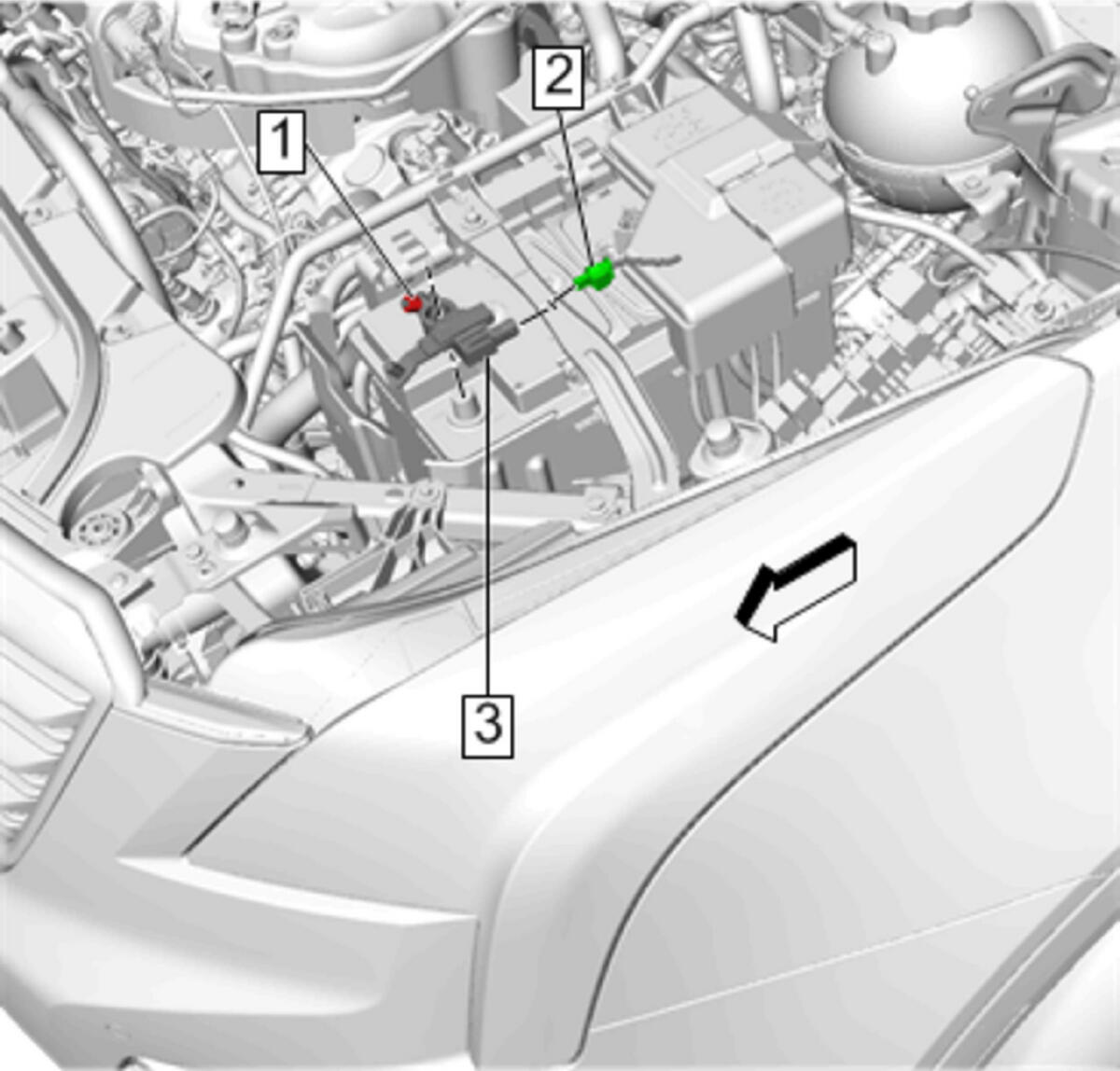

    GM4285192Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Post Negative Cable Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)
  3. Electrical Connector (2) - Connect
  4. Battery Negative Cable (3) - Install

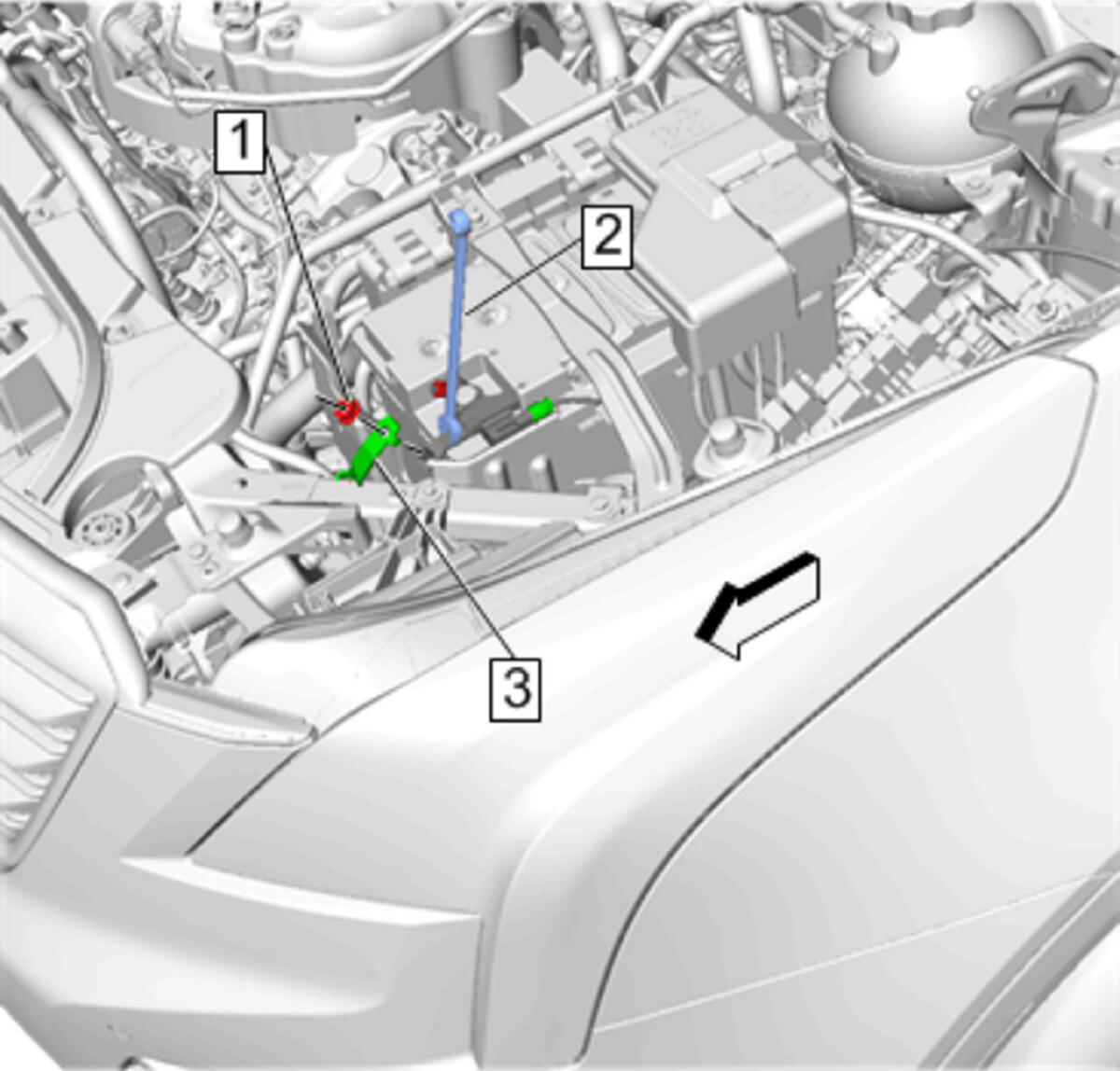

    GM4285190Courtesy of GENERAL MOTORS COMPANY
  5. Use an open ended wrench to hold the battery sensor ground tab, while tightening the battery negative cable nut. (2)
  6. Battery Negative Cable Nut (1) @ Battery Monitor Module - Tighten 11 N.m (97 lb in)
  7. Perform the battery sensor learn procedure. Battery Sensor Module Learn
