Installation Procedure

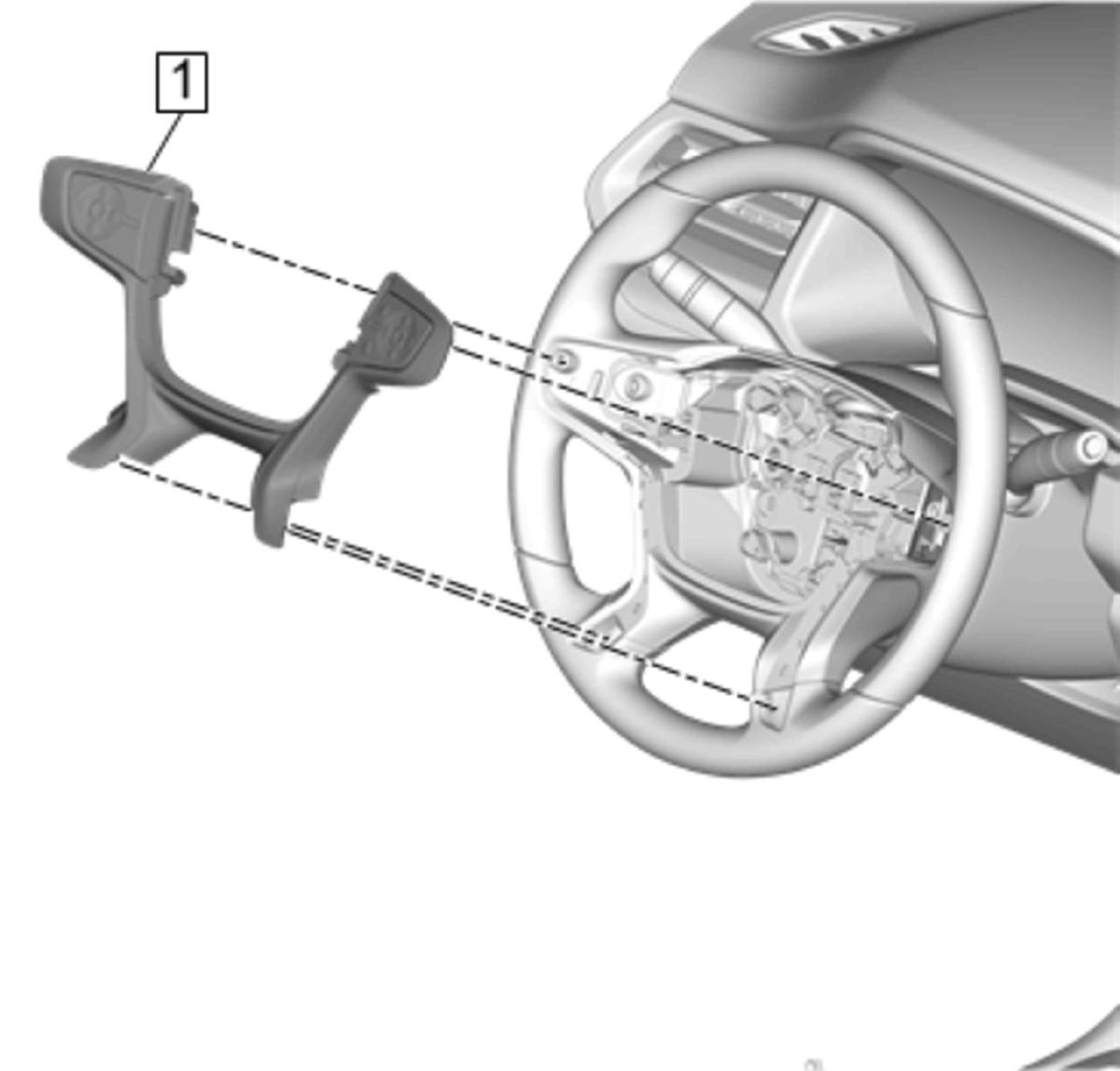

  1. Perform the following steps to install the steering wheel spoke cover (1):
    GM4380734Courtesy of GENERAL MOTORS COMPANY
    1. Secure the steering wheel spoke cover, cruise control switch, and radio control switch to the steering wheel.
    2. Connect the electrical connectors.

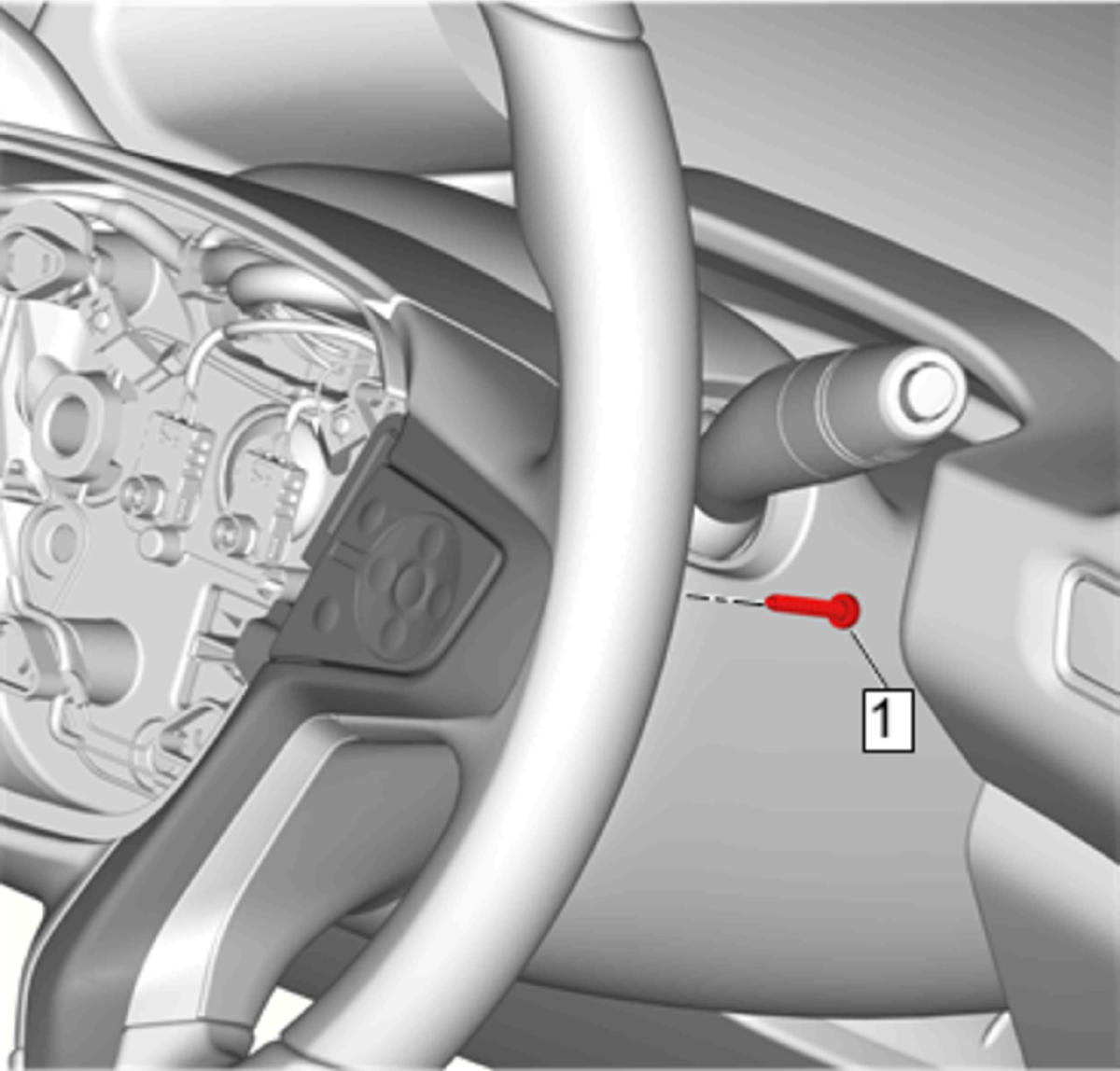

  2. Steering Wheel Spoke Cover Fastener-Right Rear (1) - Install and tighten 2.5 N.m (22 lb in)
    GM4380731Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

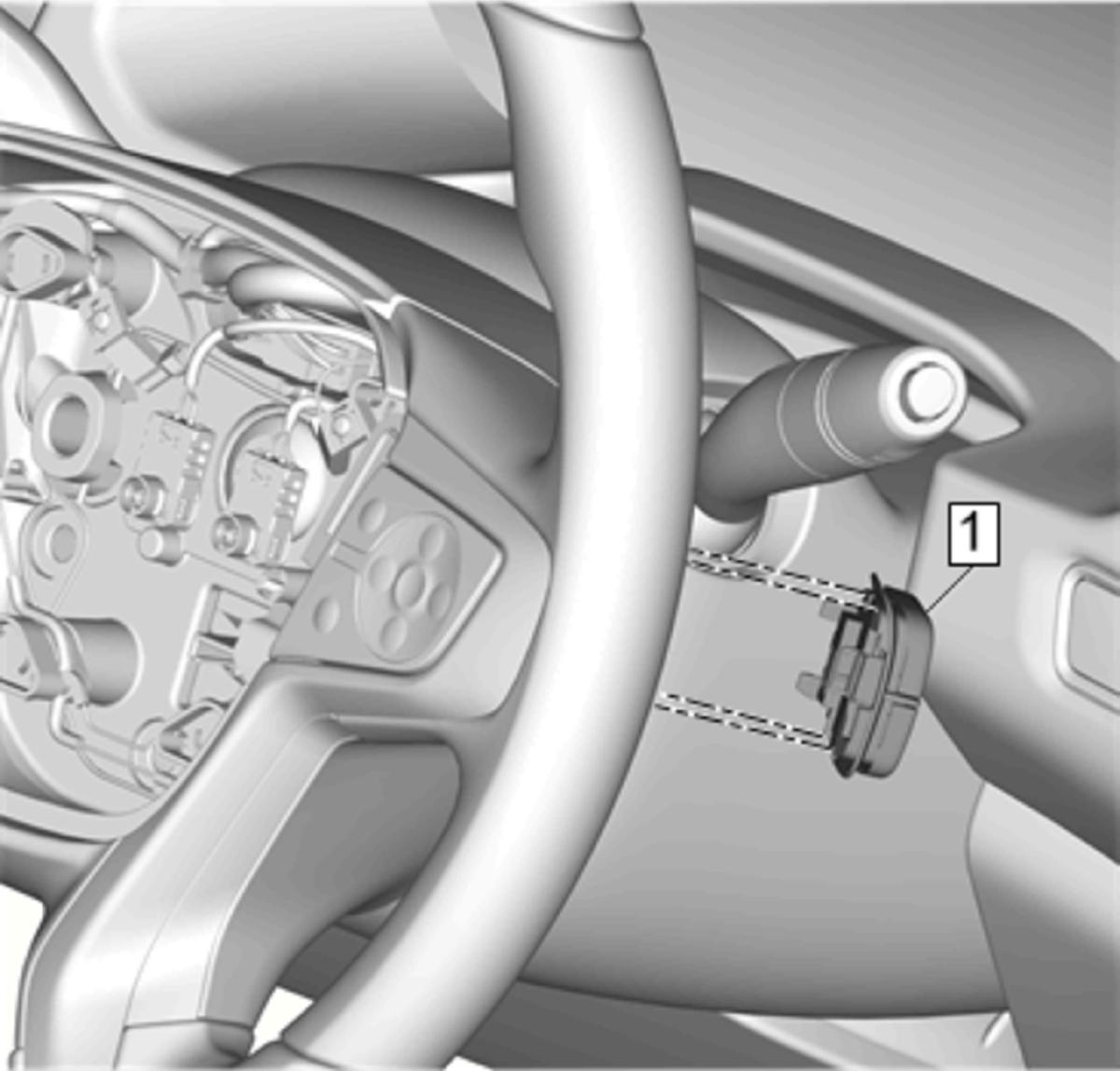

  3. Radio Control Switch - Steering Wheel-Right Rear (1) - Install - Radio Control Switch Replacement - Steering Wheel
    GM4380730Courtesy of GENERAL MOTORS COMPANY

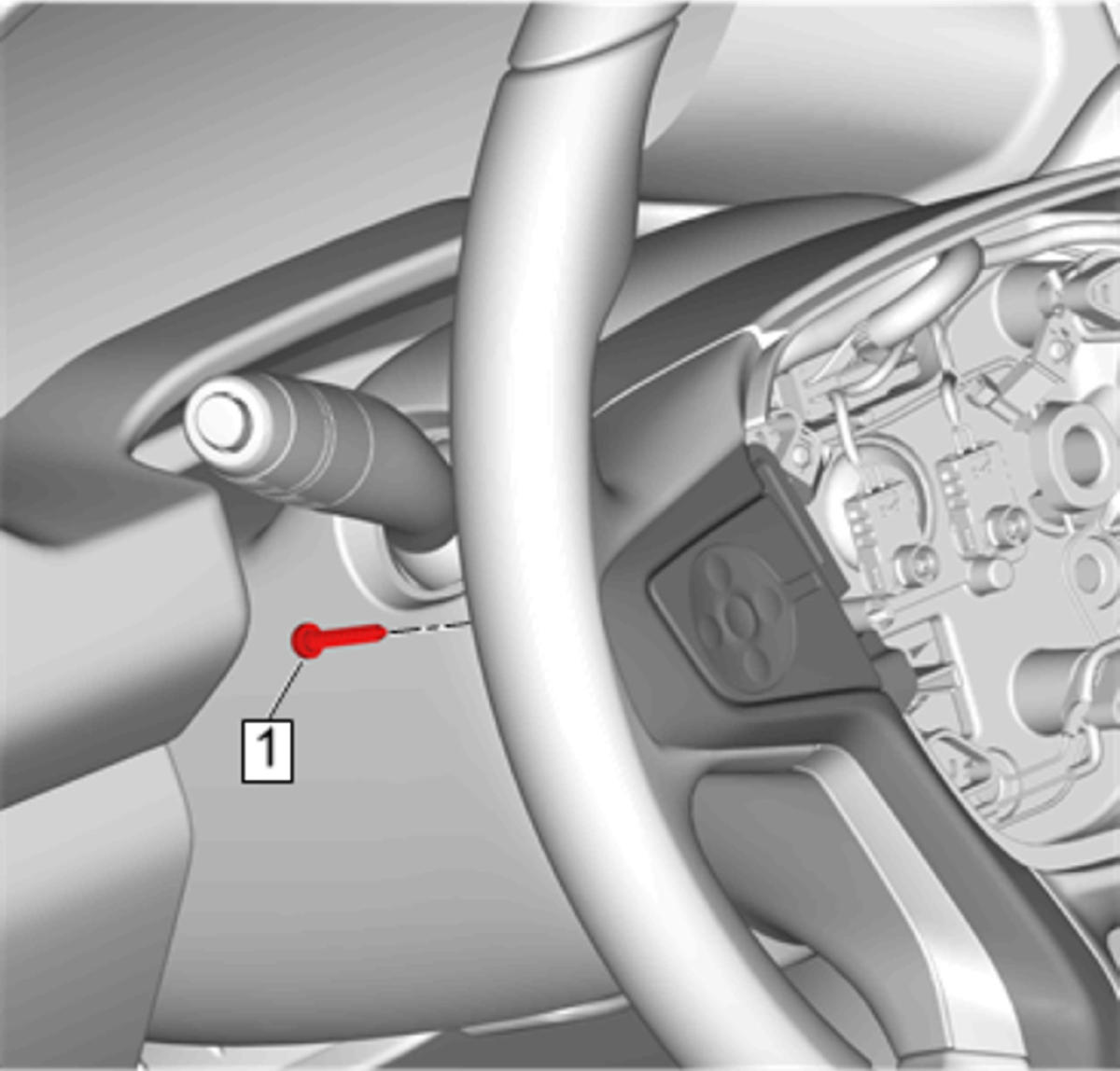

  4. Steering Wheel Spoke Cover Fastener-Left Rear (1) - Install and tighten 2.5 N.m (22 lb in)
    GM4380733Courtesy of GENERAL MOTORS COMPANY

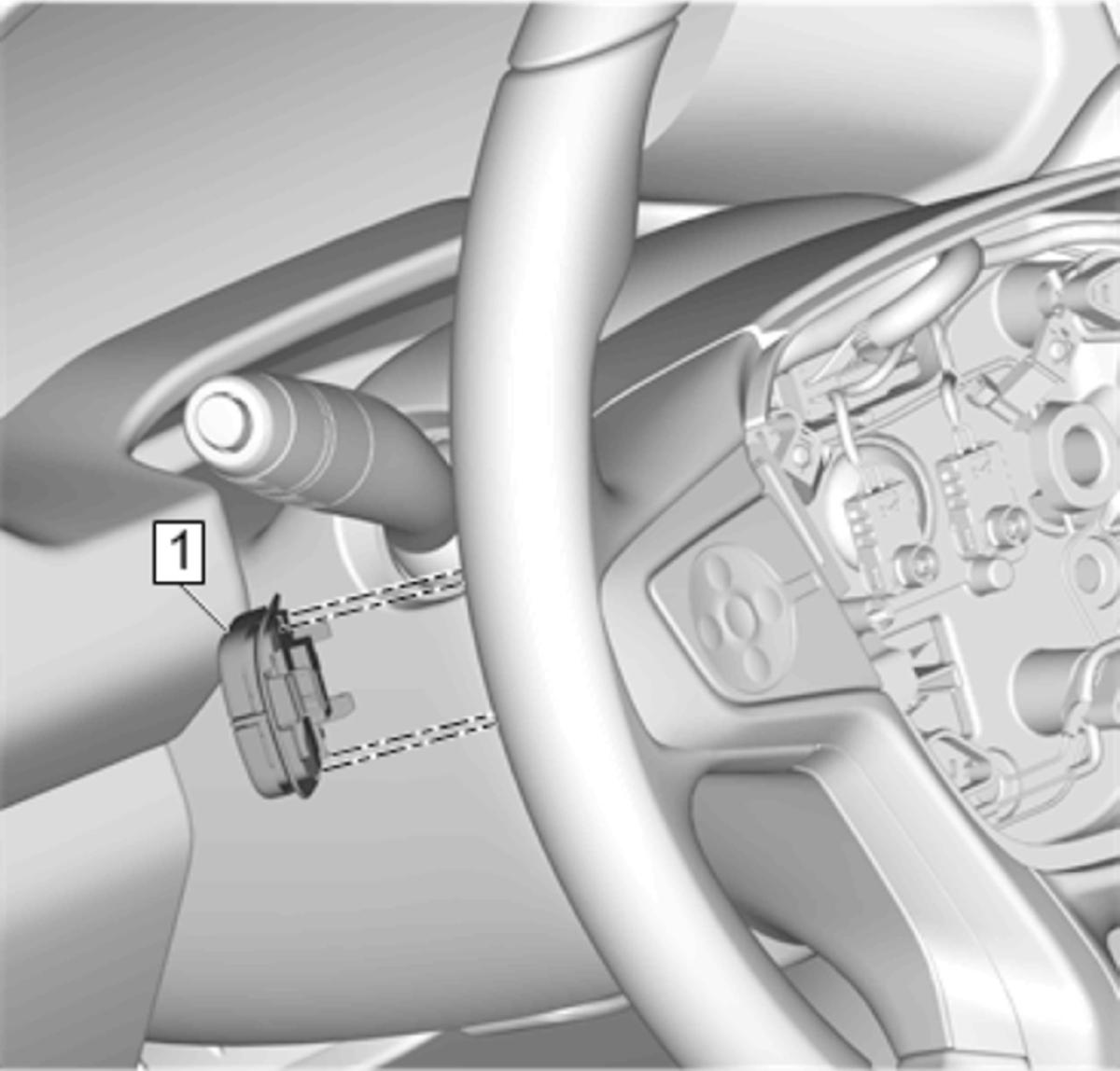

  5. Radio Control Switch - Steering Wheel-Left Rear (1) - Install - Radio Control Switch Replacement - Steering Wheel
    GM4380732Courtesy of GENERAL MOTORS COMPANY

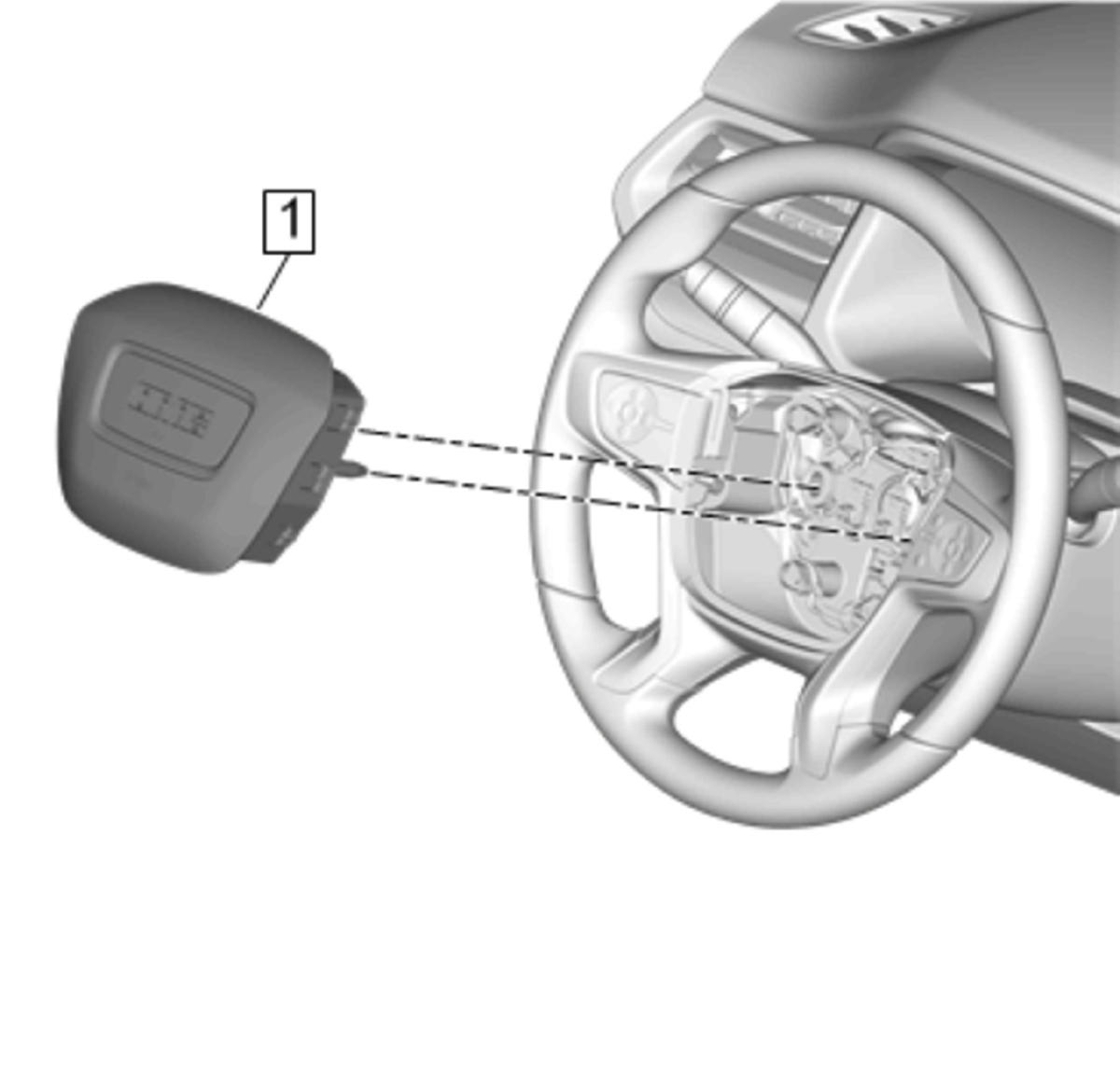

  6. Steering Wheel Airbag (1) - Install- Steering Wheel Airbag Replacement
    GM4380751Courtesy of GENERAL MOTORS COMPANY
