Installation Procedure

  1. Steering Wheel Shroud (1) - Install
    GM5046761Courtesy of GENERAL MOTORS COMPANY
  2. {If equipped} Connect the steering wheel heat control module electrical connectors.

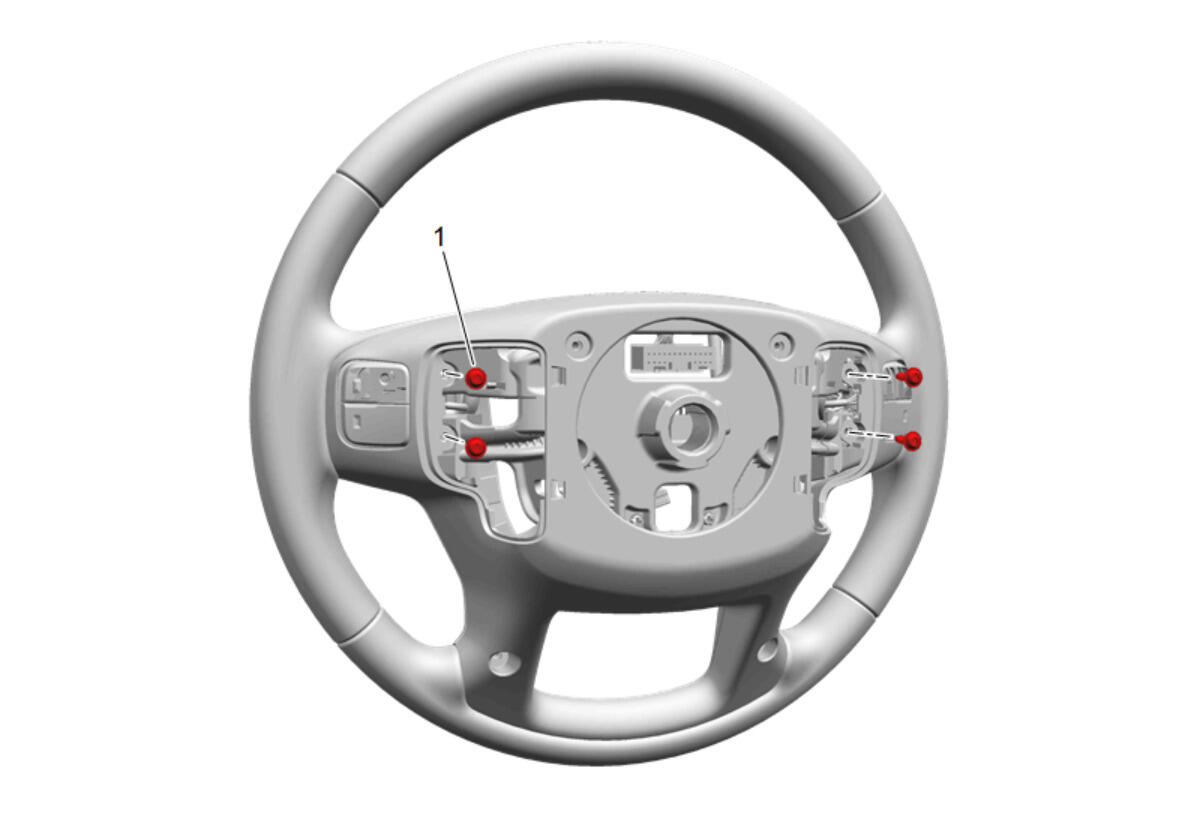

  3. Install the 4 steering wheel rear switch screws (1) and tighten to 3.5 N.m (31 lb in).
    GM5067800Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

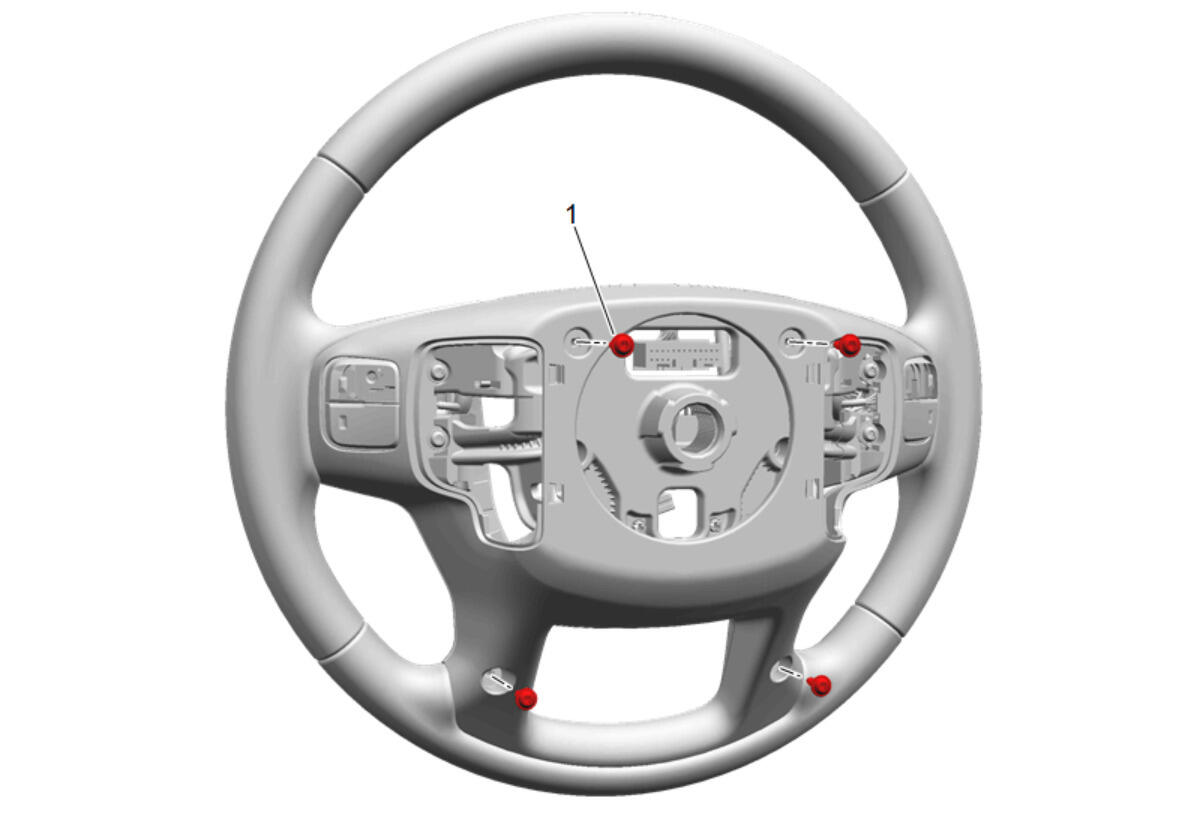

  4. Install the 4 steering wheel screws (1) and tighten to 1.1 N.m (10 lb in).
    GM5067803Courtesy of GENERAL MOTORS COMPANY

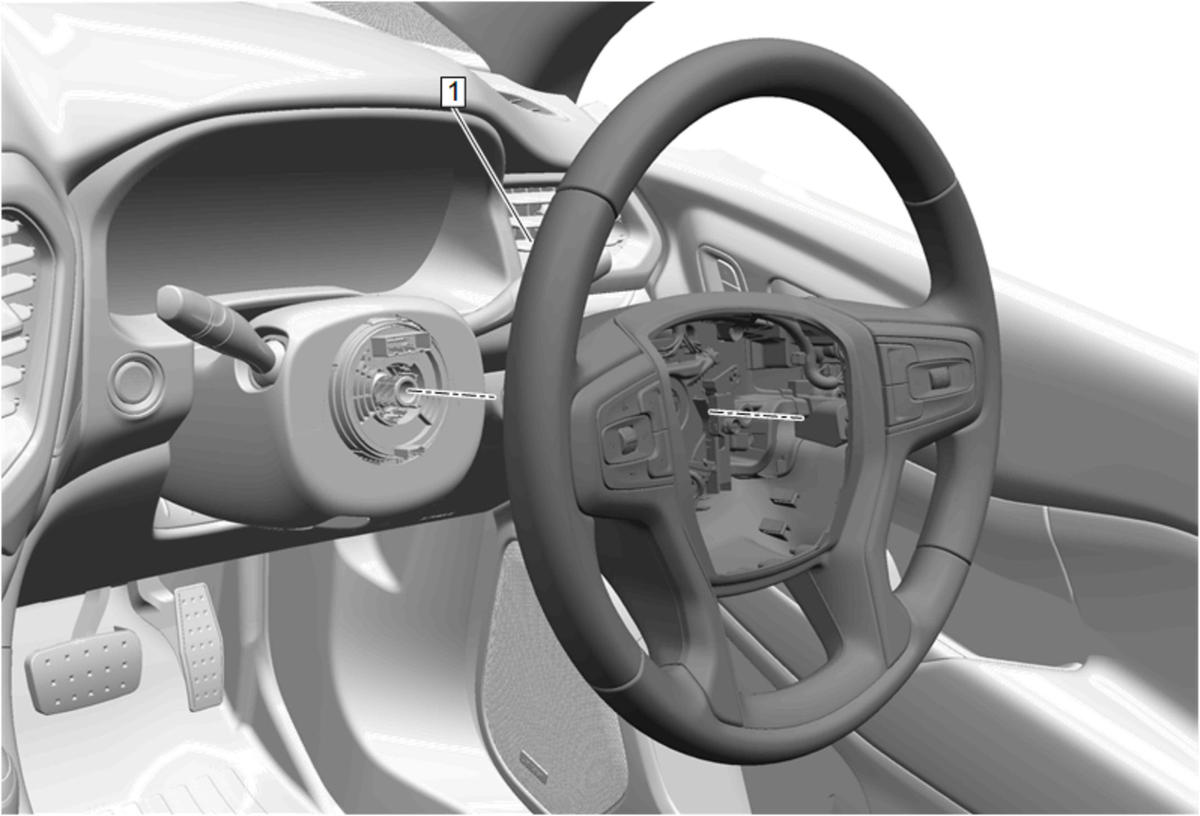

  5. Install the steering wheel.(1) Steering Wheel Replacement
    GM5046718Courtesy of GENERAL MOTORS COMPANY
  6. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement

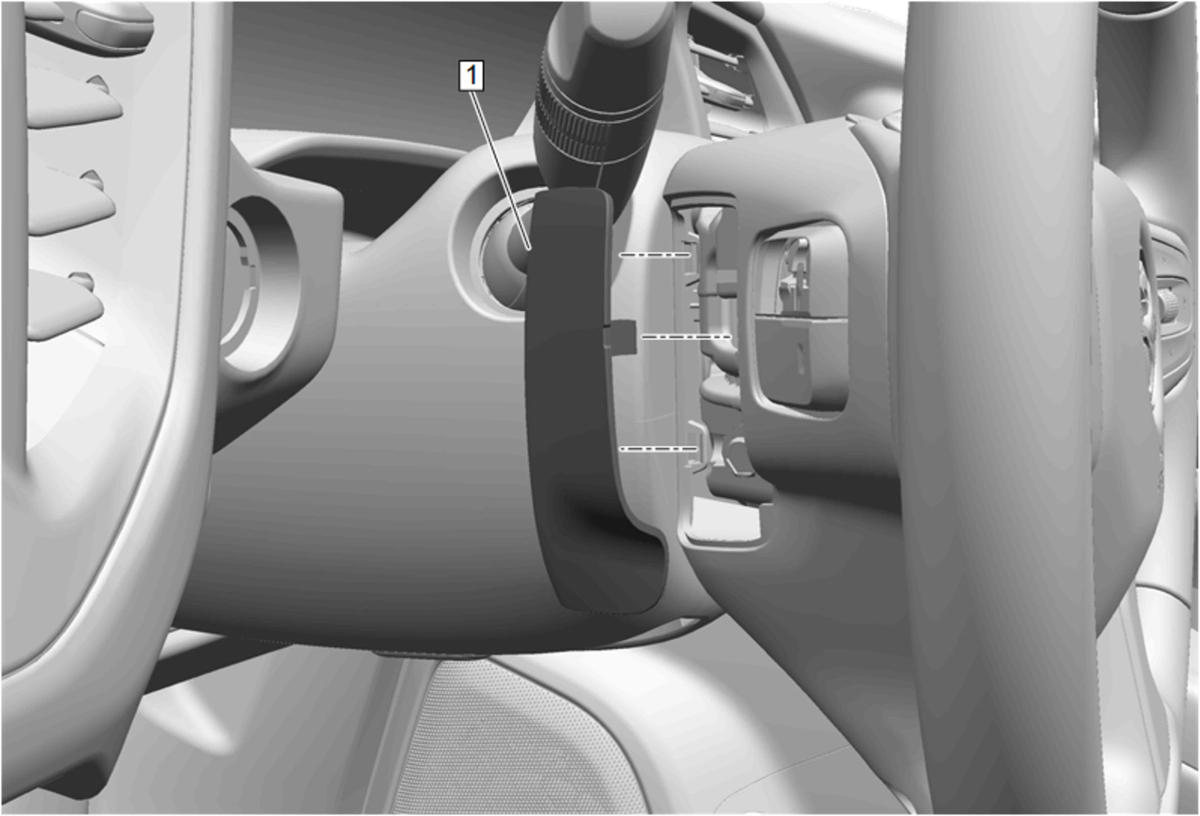

  7. Install the 2 steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
    GM5046720Courtesy of GENERAL MOTORS COMPANY
