Forward Range Radar Bracket Replacement
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

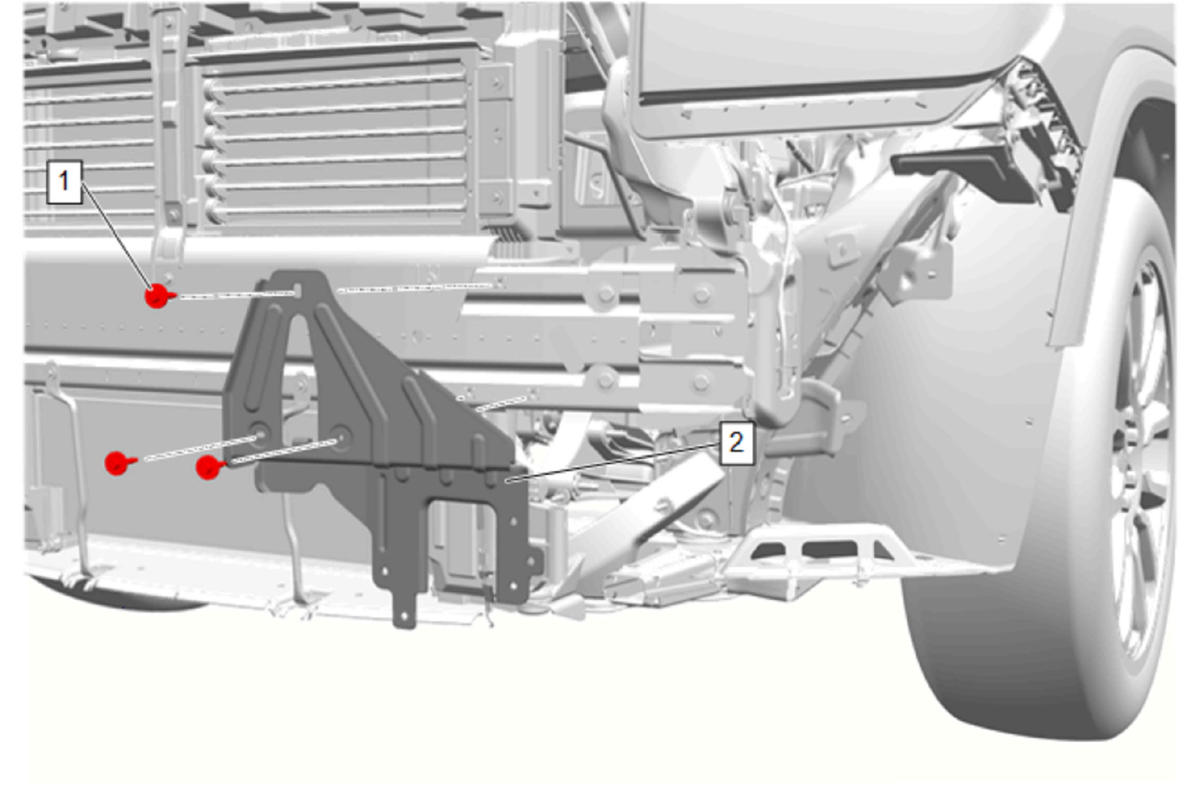

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Forward Range Radar Sensor Replacement |
|
| 1 | Forward Range Radar Bracket Bolt [3x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Forward Range Radar Bracket |
