Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Position the front stabilizer shaft (2) on the drivetrain and front suspension cradle.
- Front Stabilizer Shaft Insulator Clamp Bolt (1) - Install and tighten [4x]
Install NEW bolts.
Tighten
- First Pass: 30 N.m (22 lb ft)
- Final Pass: (90 - 105 degrees)

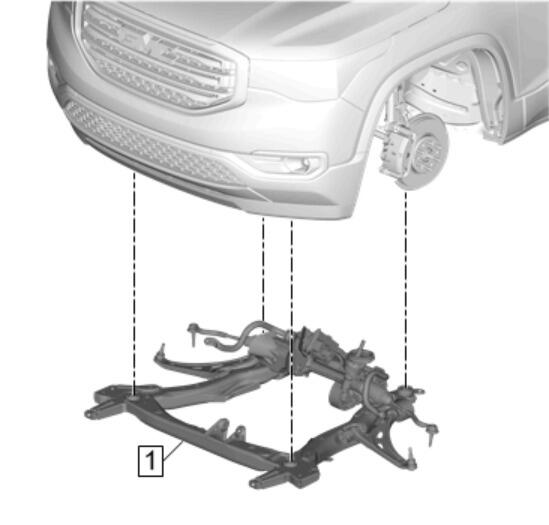

Drivetrain and Front Suspension Cradle (1) - Install - Drivetrain and Front Suspension Cradle Replacement
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
