Installation Procedure

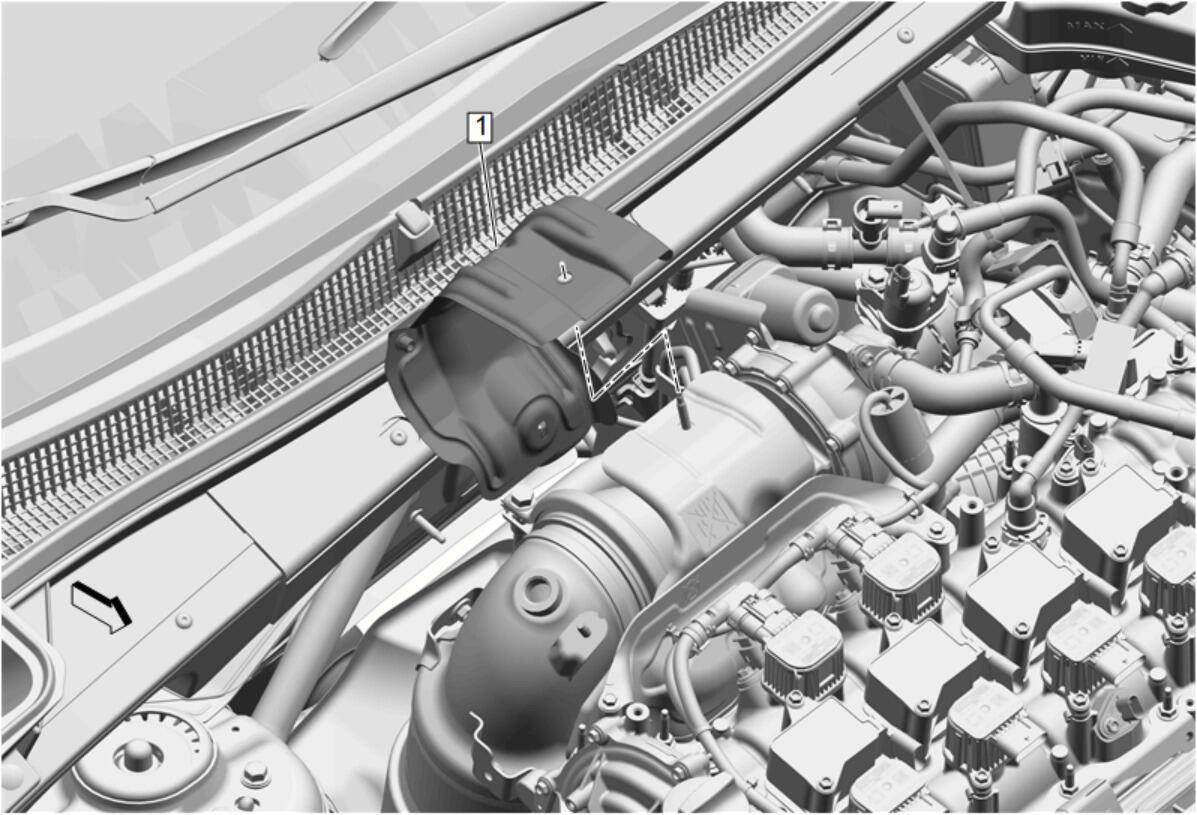

  1. Turbocharger Heat Shield (1) - Install
    GM5044750Courtesy of GENERAL MOTORS COMPANY

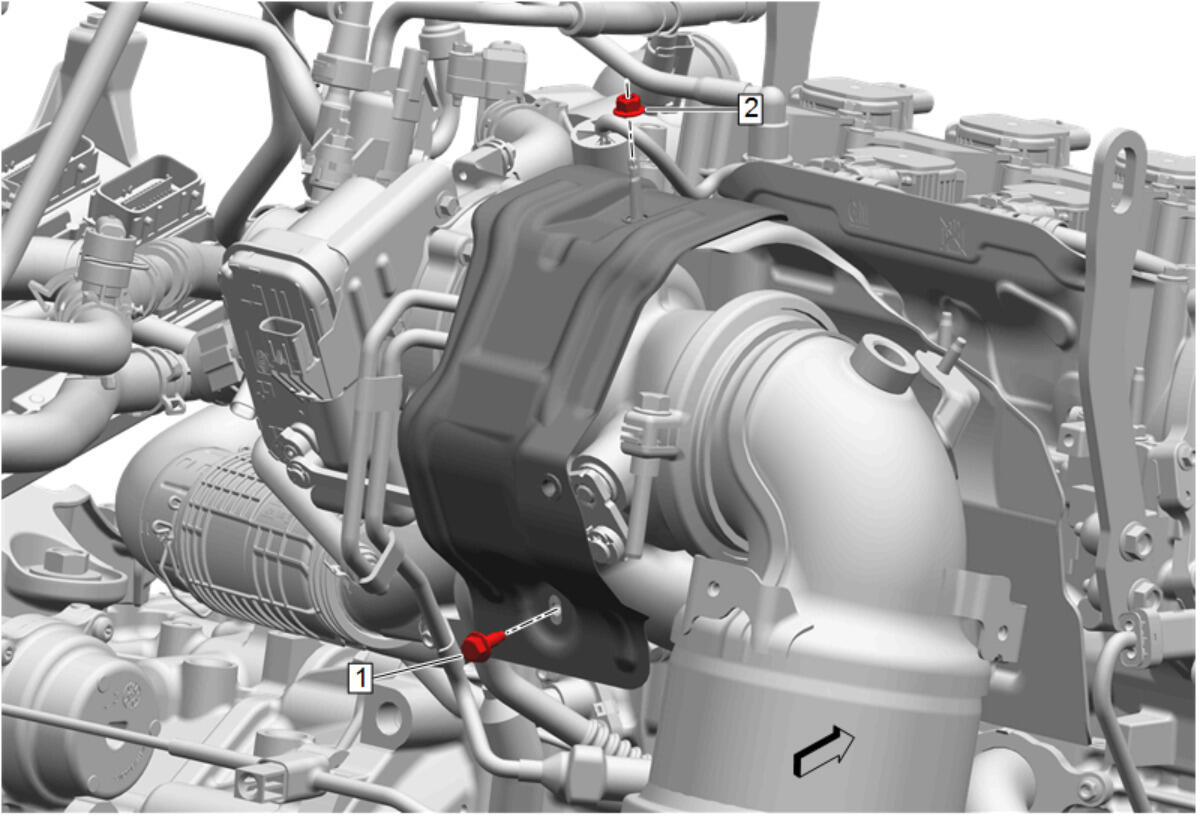

  2. Turbocharger Heat Shield Nut (2) - Install and tighten 9 N.m (80 lb in)
    GM5044452Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Turbocharger Heat Shield Bolt (1) - Install and tighten 9 N.m (80 lb in)

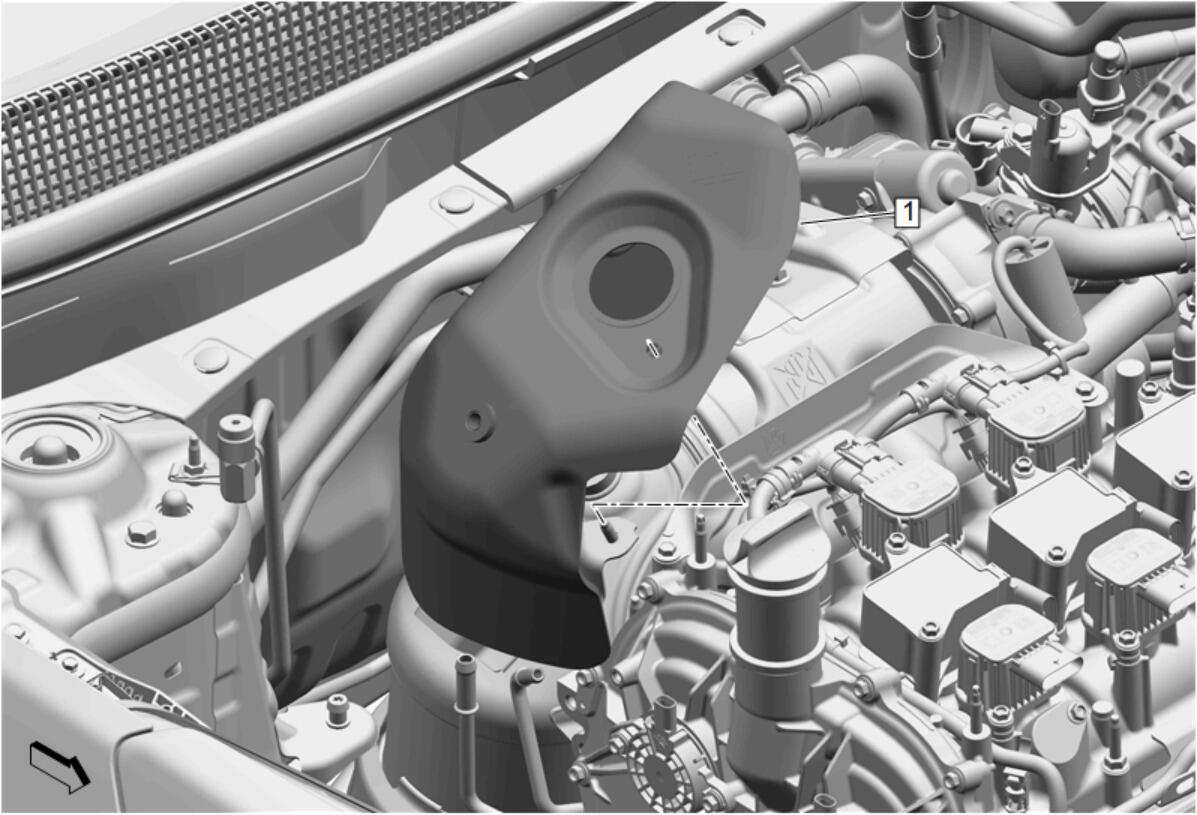

  4. Catalytic Converter Heat Shield (1) - Install - Catalytic Converter Heat Shield Replacement - Upper (LSY)
    GM5168474Courtesy of GENERAL MOTORS COMPANY
