Removal Procedure

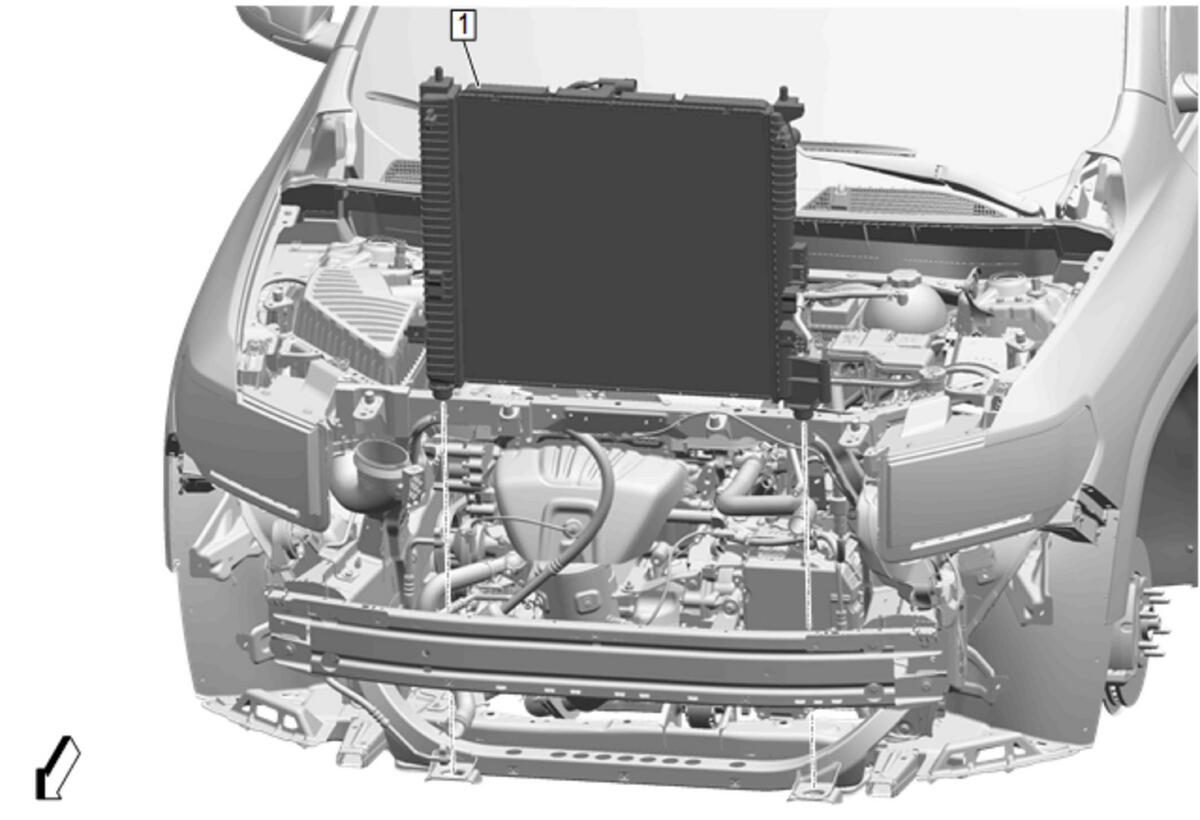

  1. Engine Coolant Fan Module Radiator (1) - Remove - Engine Coolant Fan Module Radiator Assembly Removal and Installation (LSY)
    GM5340777Courtesy of GENERAL MOTORS COMPANY

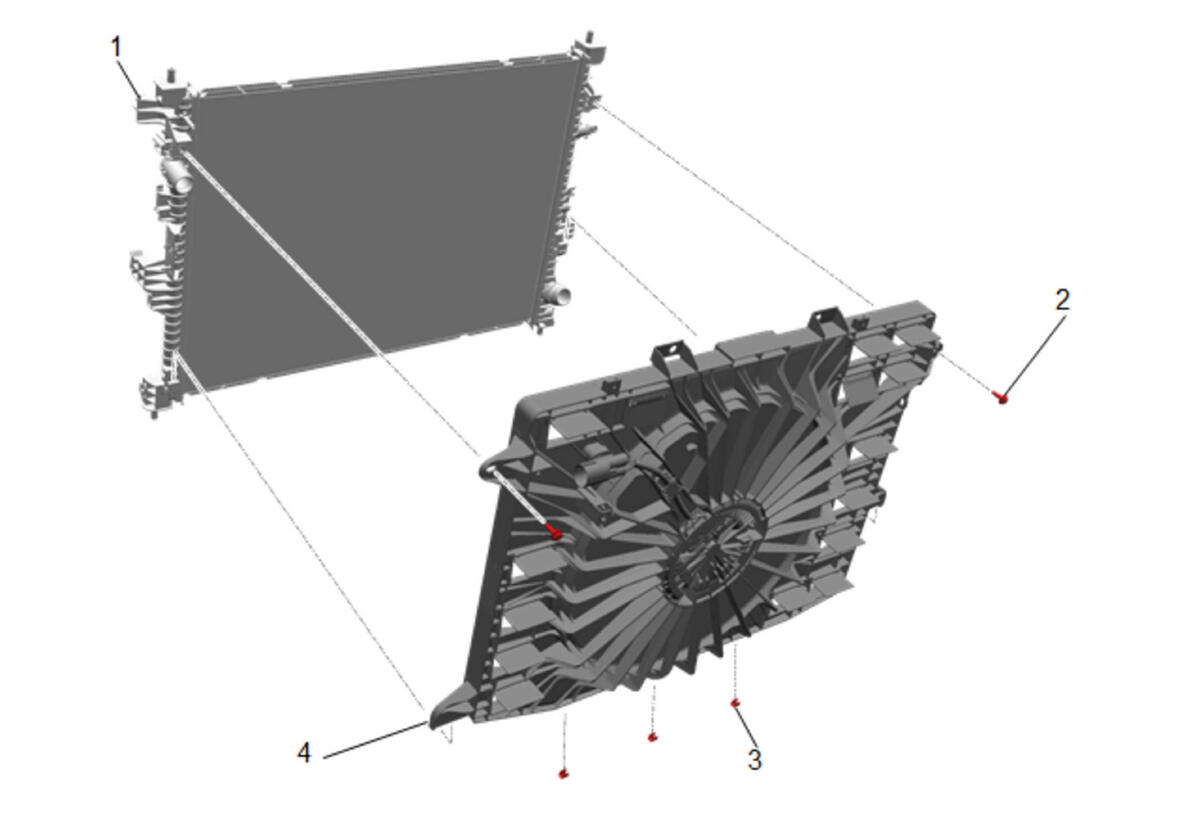

  2. Engine Coolant Fan Bolt (2) - Remove [2x]
    GM5191720Courtesy of GENERAL MOTORS COMPANY
  3. Engine Coolant Fan Shroud Retainer (3) Remove [3x]
  4. Engine Coolant Fan (4) @ Radiator (1) - Remove
  5. Transfer components as necessary.
