Installation Procedure

  1. Engine Coolant Fan (3) @ Radiator (1) - Install

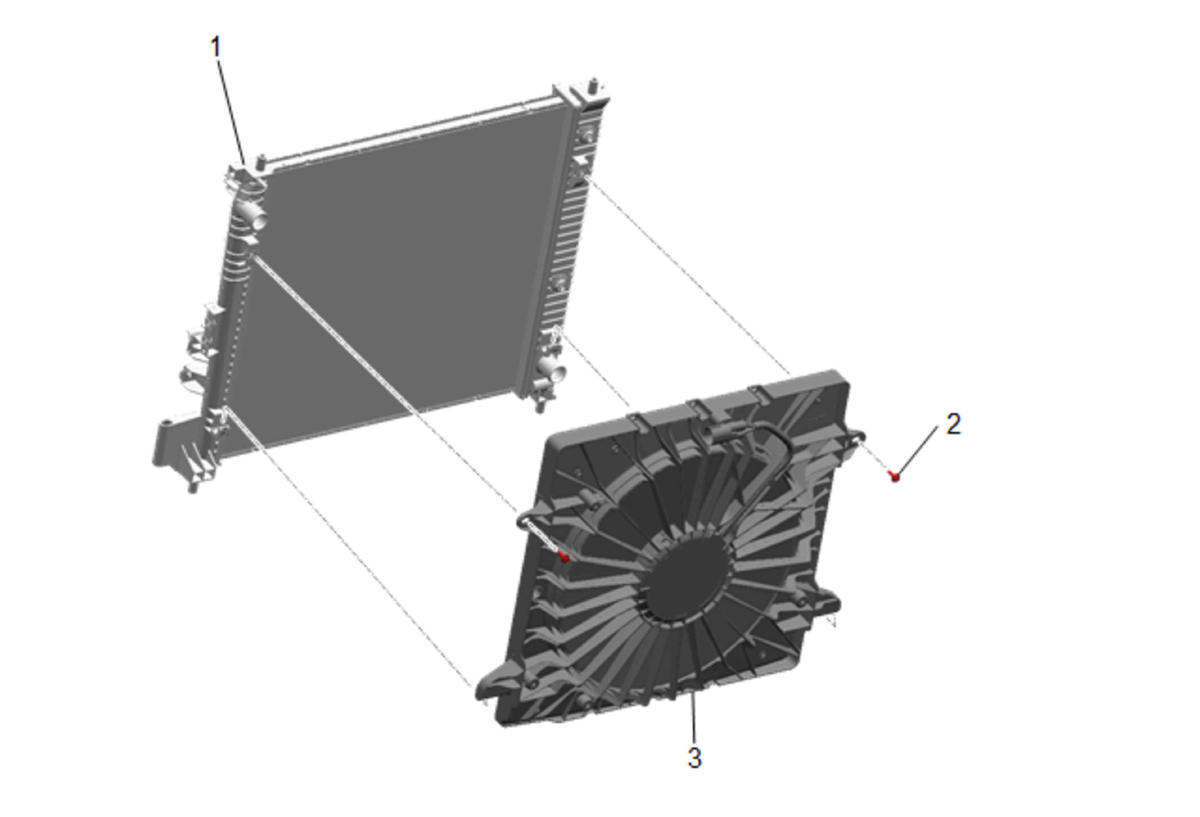

    GM5340924Courtesy of GENERAL MOTORS COMPANY
    2. CAUTION:

    Refer to Fastener Caution

  2. Engine Coolant Fan Motor Bolt (2) - Install and tighten [2x] 5 N.m (44 lb in)
  3. Engine Coolant Fan Module Radiator (1) - Install - Engine Coolant Fan Module Radiator Assembly Removal and Installation (LGX with V08) , or Engine Coolant Fan Module Radiator Assembly Removal and Installation (LGX without V08)

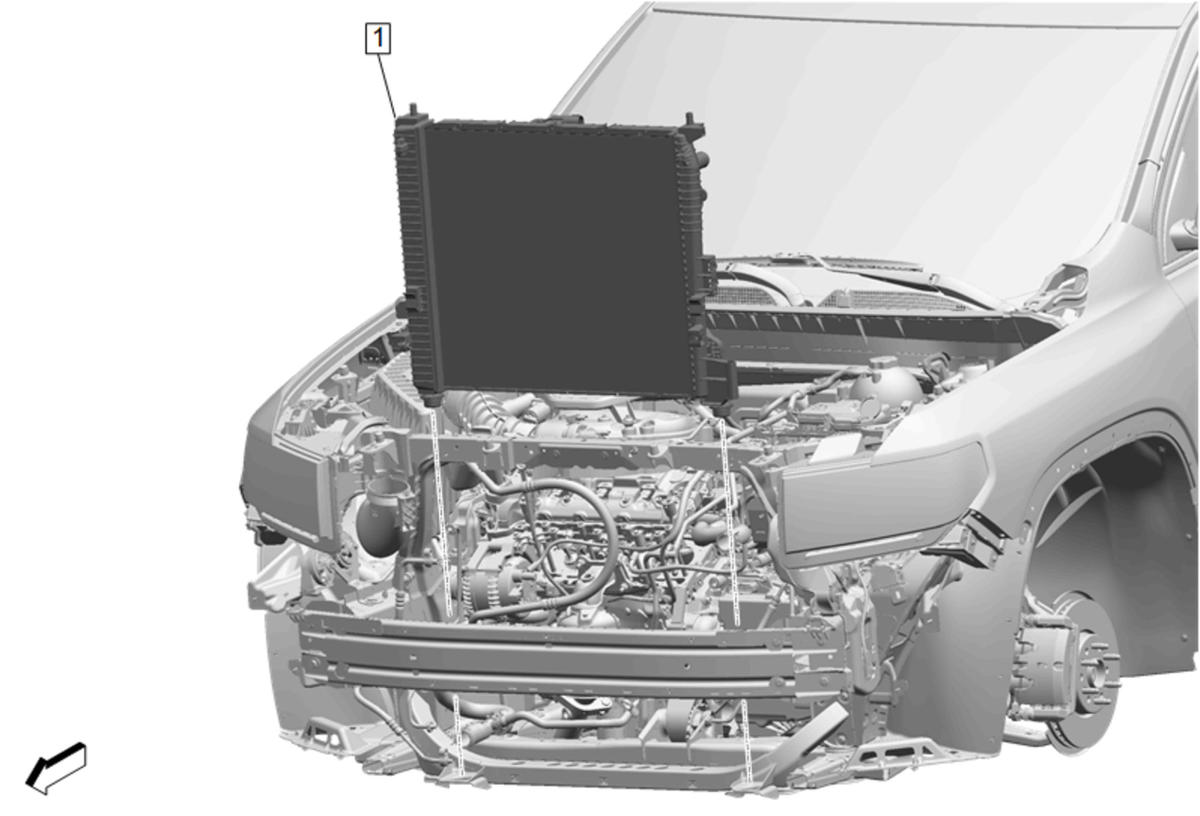

    GM5351777Courtesy of GENERAL MOTORS COMPANY
