Installation Procedure

CAUTION:

Generator Nut (2) - Install and tighten 22 N.m (16 lb ft)
Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

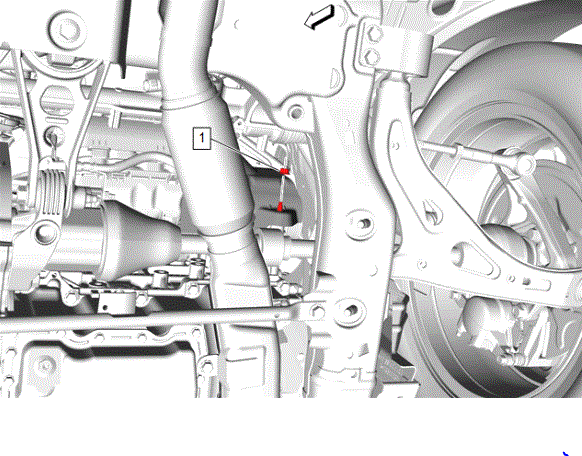

Generator Nut (1) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Drive Belt (1) (1) - Install - Drive Belt Replacement
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

If necessary, connect the fuel feed pipe (1). Fuel Feed Front Pipe Replacement
Courtesy of GENERAL MOTORS COMPANY

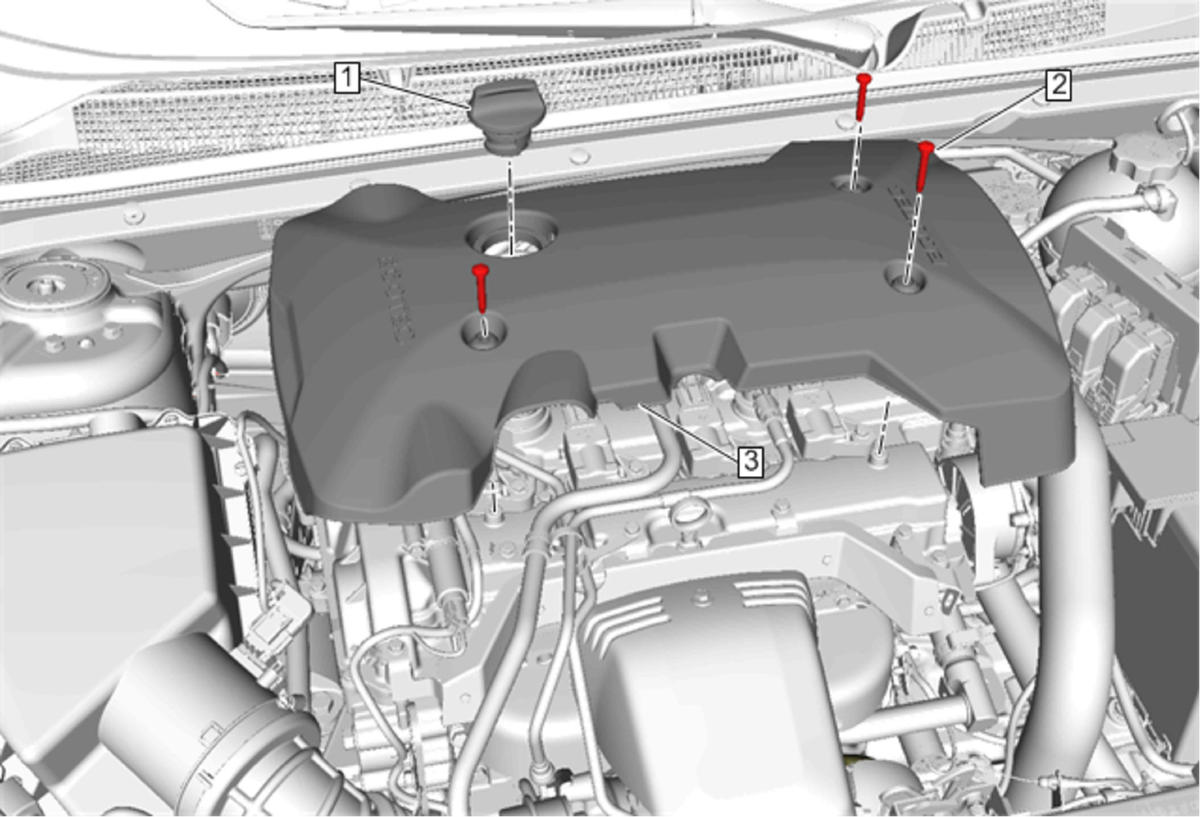

Intake Manifold Cover (3) - Install - Intake Manifold Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

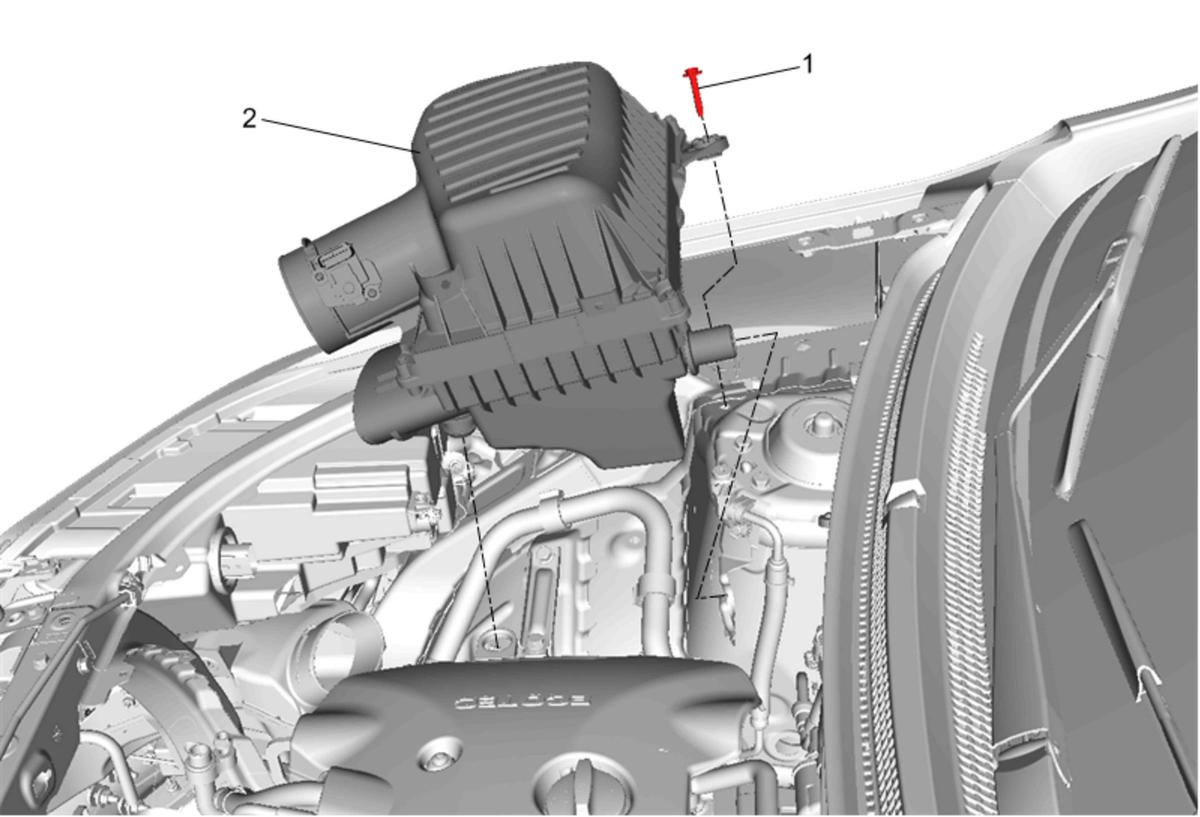

Air Cleaner Assembly (2) - Install - Air Cleaner Assembly Replacement
