Installation Procedure

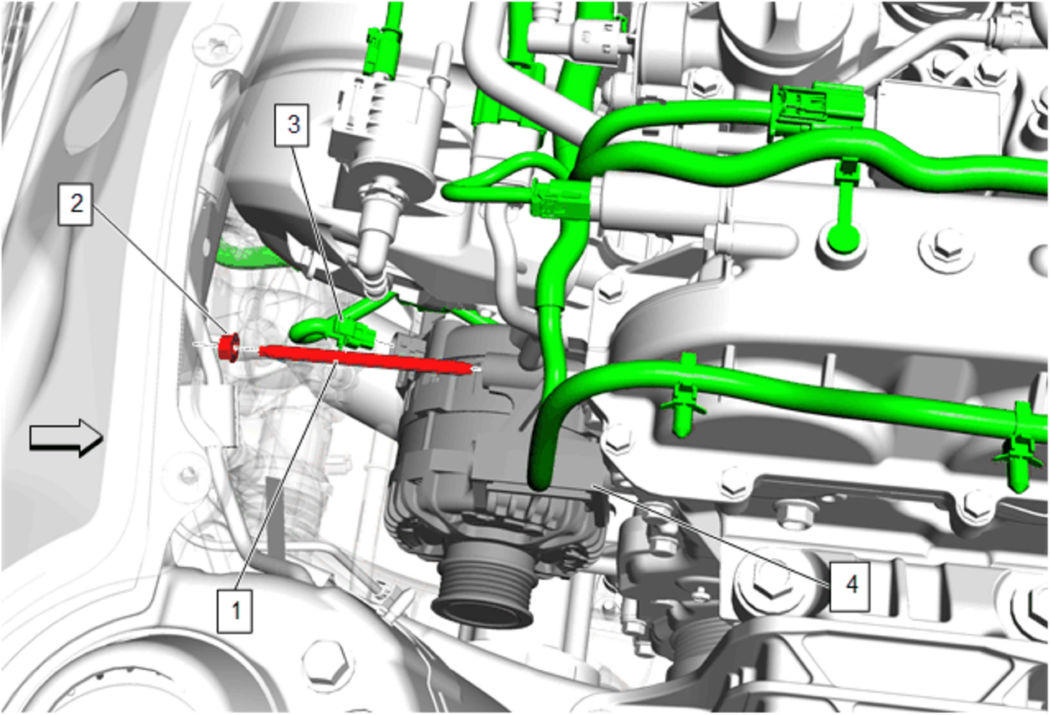

  1. GM5285495Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    It will be necessary to rotate and maneuver the generator in order to install.

    Generator (4) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Stud (1) - Install and tighten 9 N.m (80 lb in)
  3. Generator Nut (2) - Hand tighten
  4. Electrical Connector (3) - Connect
  5. Raise and support the vehicle. Lifting and Jacking the Vehicle

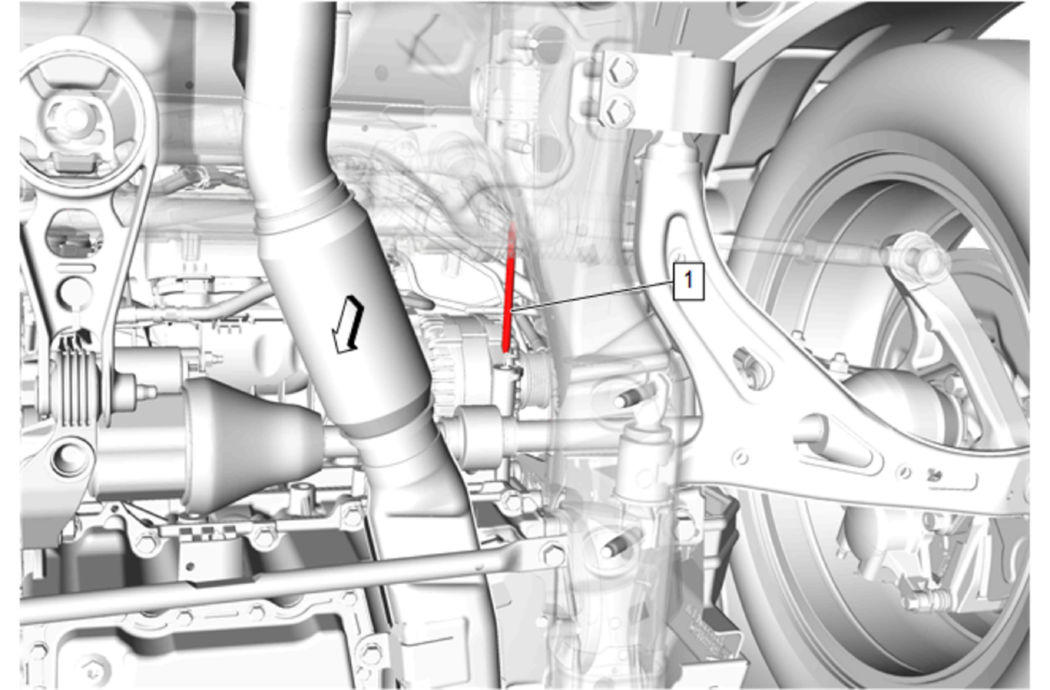

  6. GM5549470Courtesy of GENERAL MOTORS COMPANY

    Stud (1) - Install and tighten 9 N.m (80 lb in)

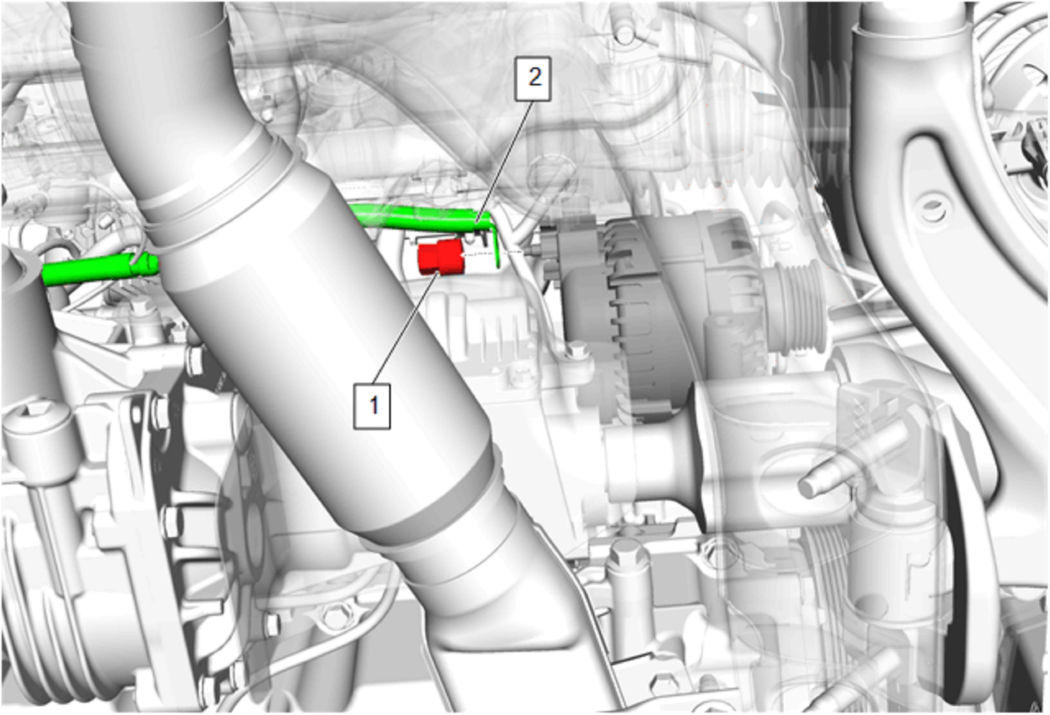

  7. GM5285415Courtesy of GENERAL MOTORS COMPANY

    Starter Solenoid Cable (2) - Install

  8. Battery Positive Cable Nut (1) - Install and tighten 15 N.m (11 lb ft)
  9. Lower the vehicle.

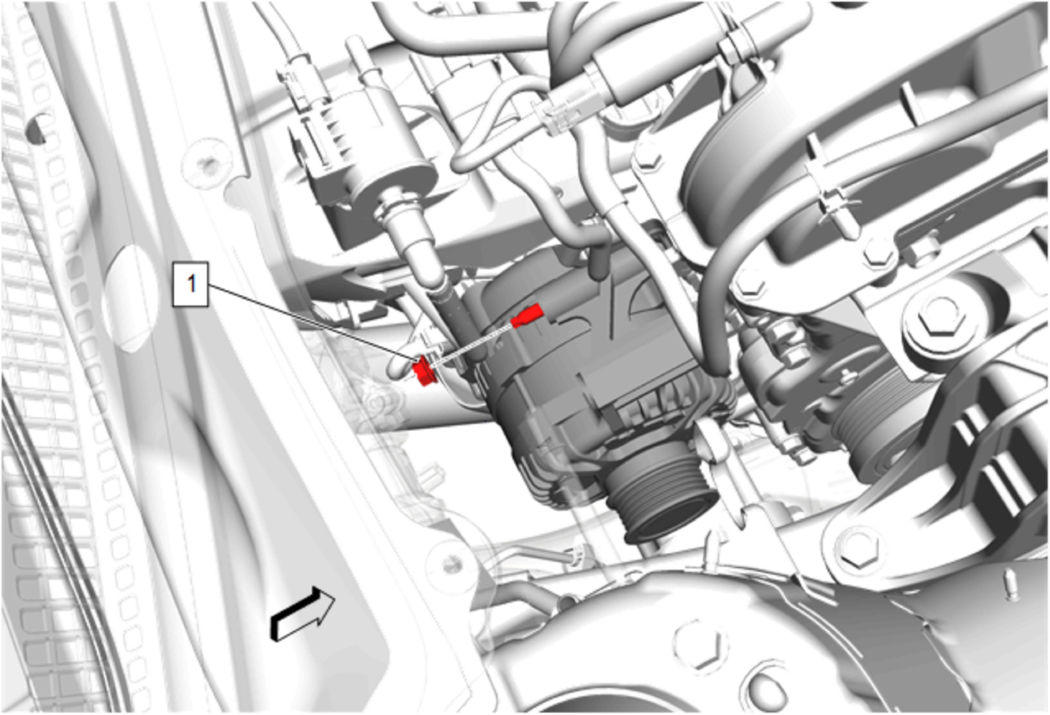

  10. GM5285366Courtesy of GENERAL MOTORS COMPANY

    Generator Nut (1) - Remove

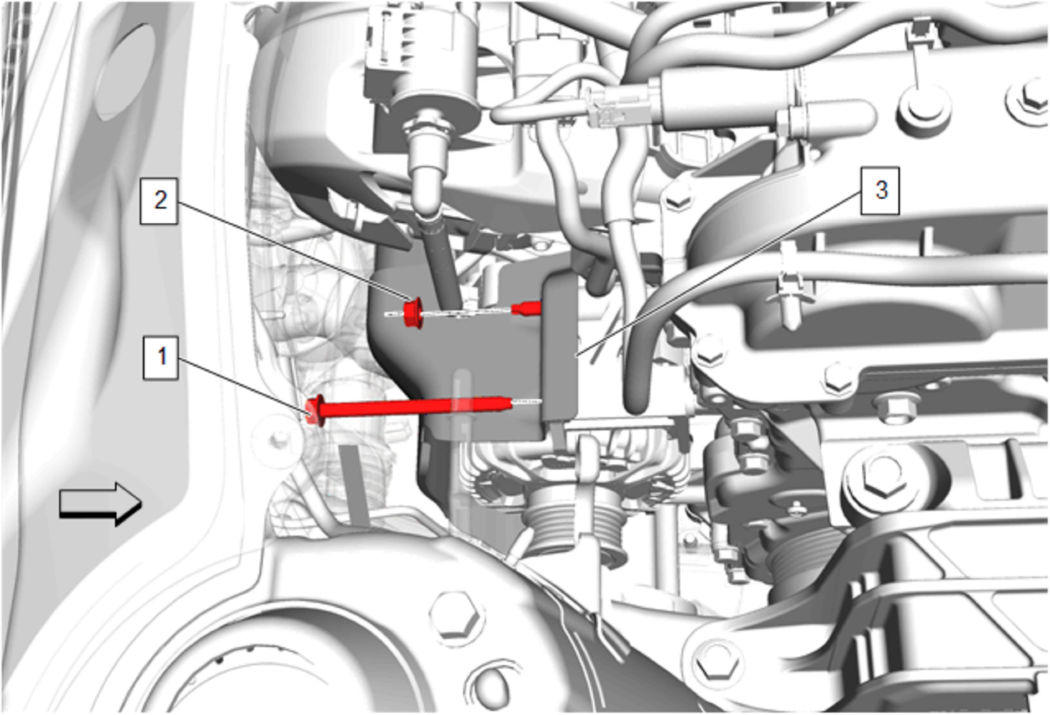

  11. GM5285312Courtesy of GENERAL MOTORS COMPANY

    Generator Shield (3) - Install - Generator Shield Replacement (LTG)

  12. Drive Belt (1) - Install - Drive Belt Replacement

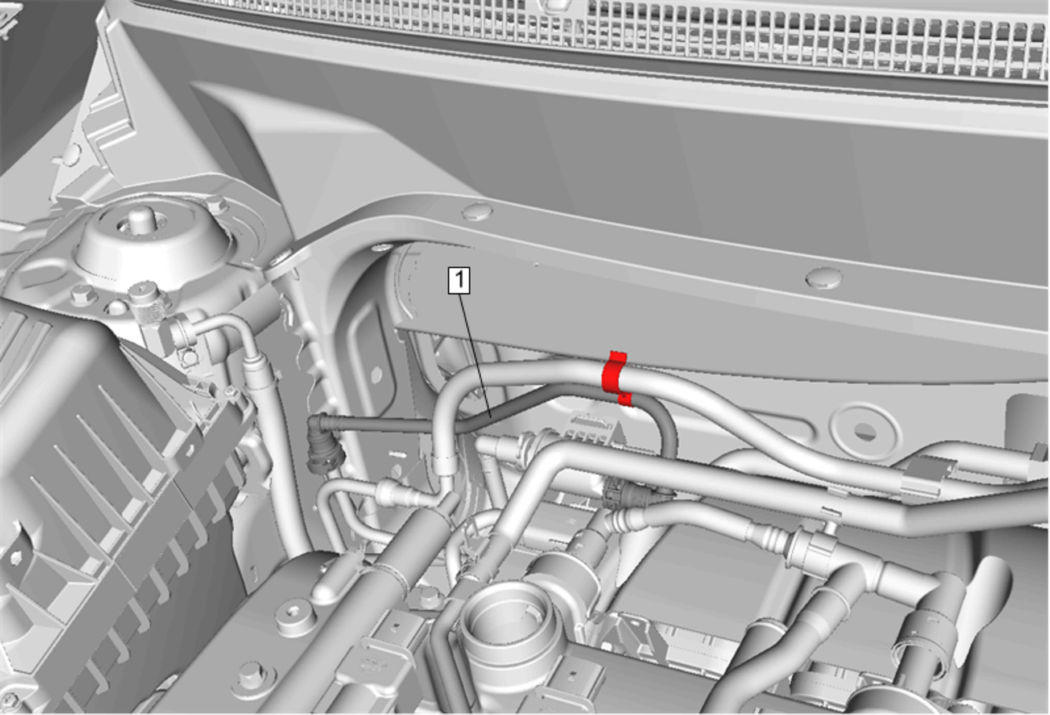

  13. GM4640422Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Front Hose (1) - Install - Evaporative Emission Front Hose Replacement

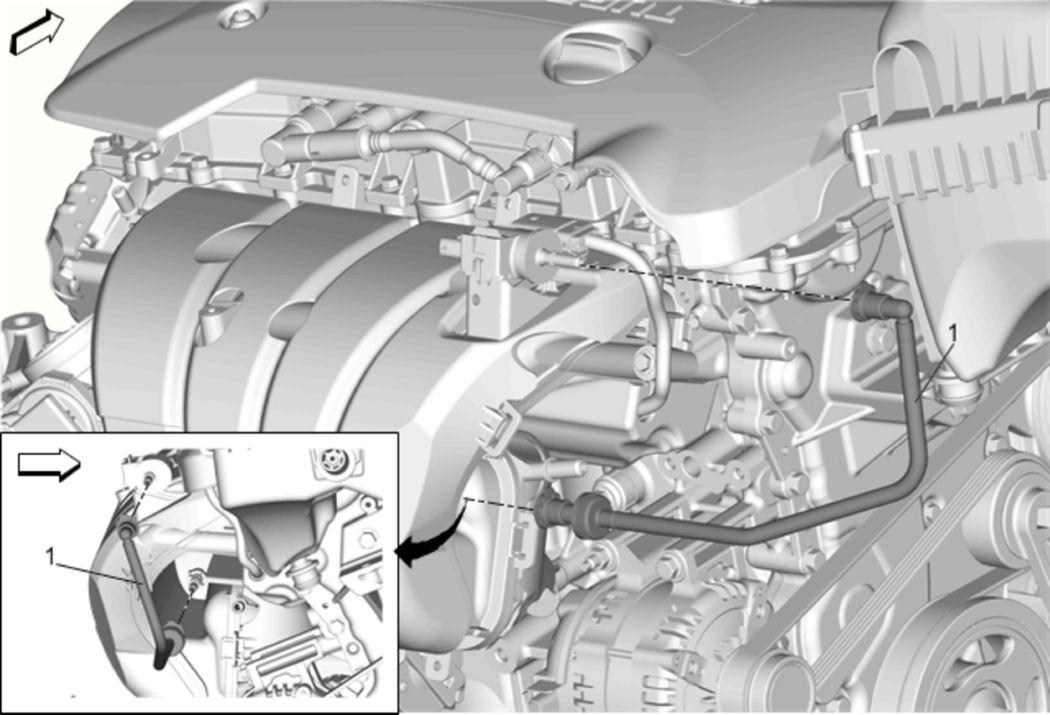

  14. GM3829325Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) - Install - Evaporative Emission Canister Purge Tube Replacement

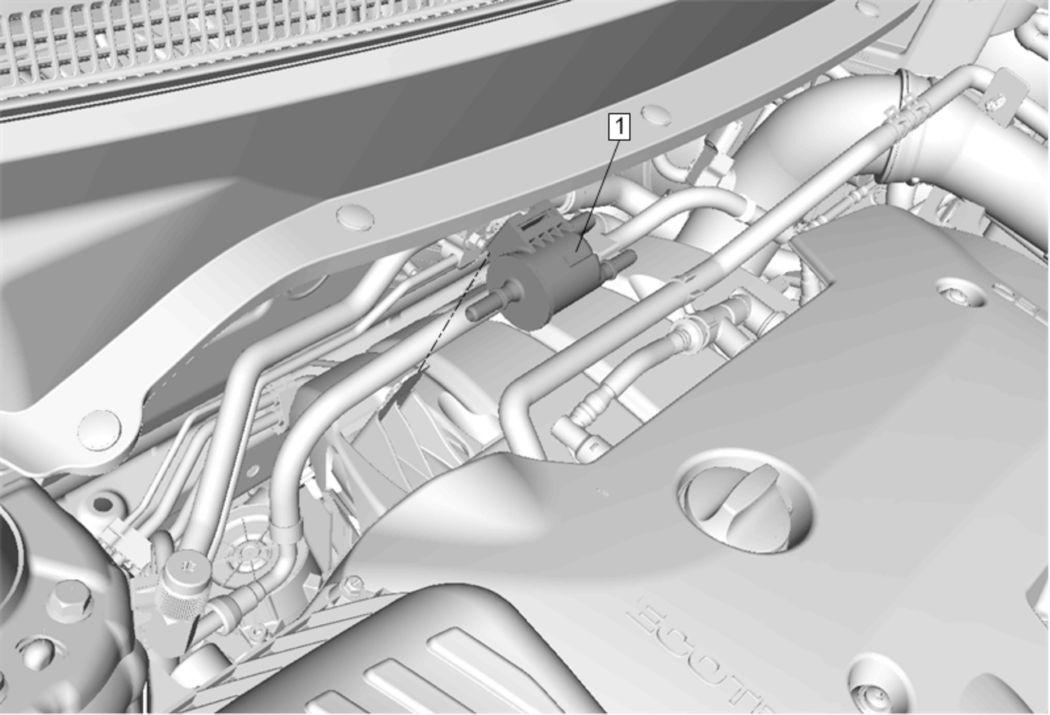

  15. GM4641391Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Solenoid Valve (1) - Install - Evaporative Emission Canister Purge Solenoid Valve Replacement

  16. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (KL9)
