Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

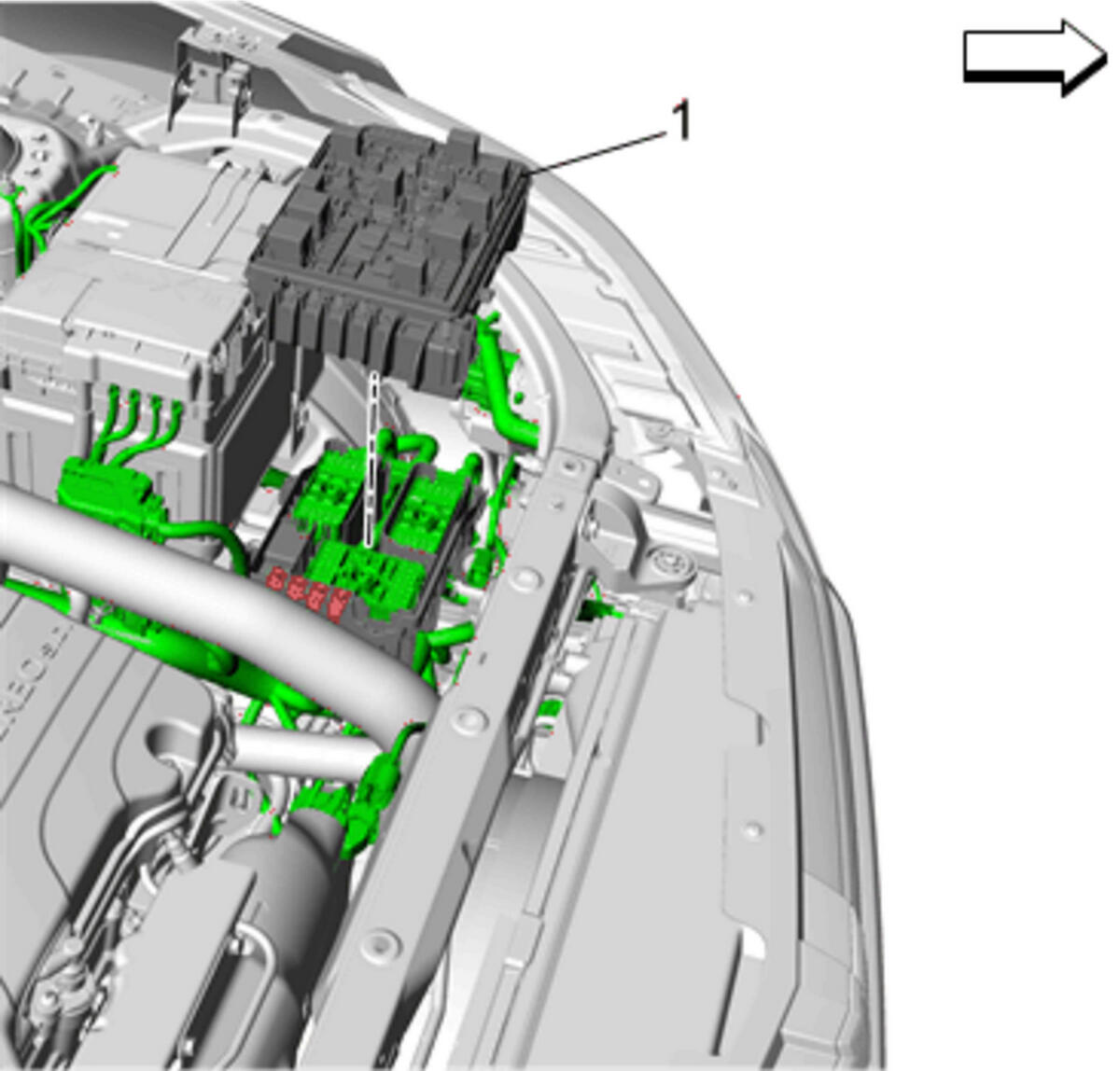

Engine Wiring Harness Junction Block (1) - Install
Courtesy of GENERAL MOTORS COMPANY

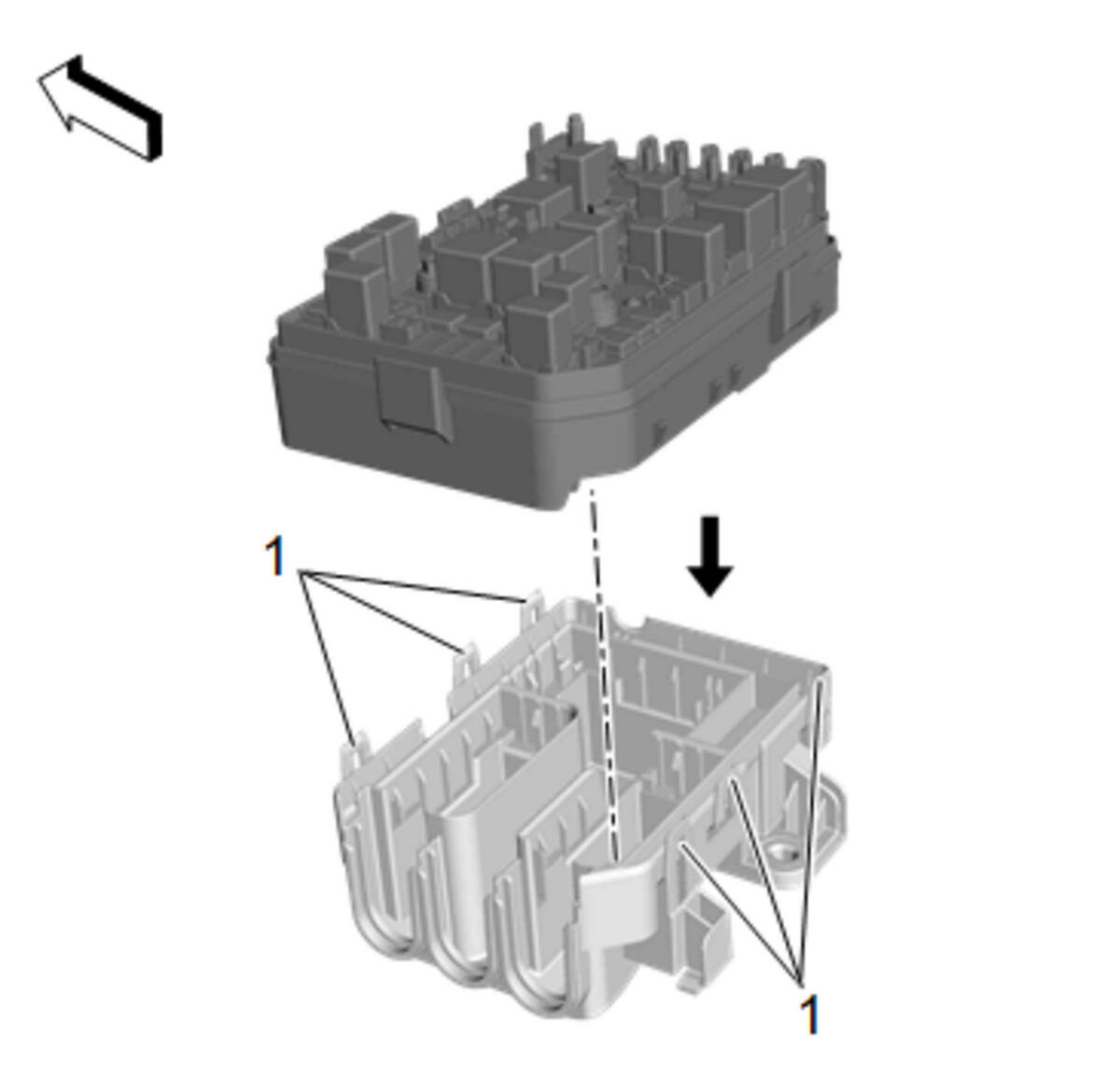

Retaining Tab (1) - Engage [6x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

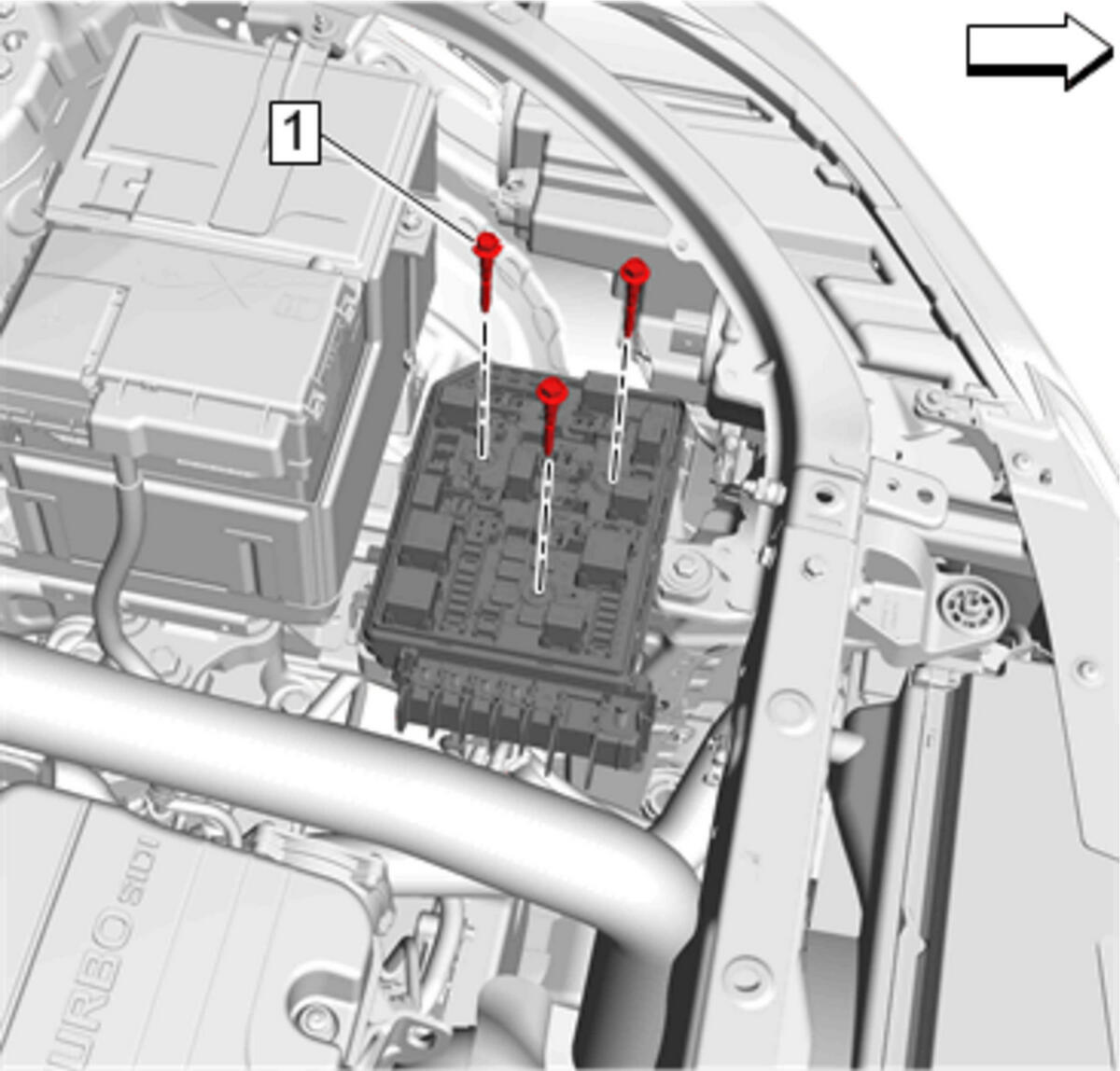

Engine Wiring Harness Junction Block Mounting Bolt (1) - Install and tighten [3x] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

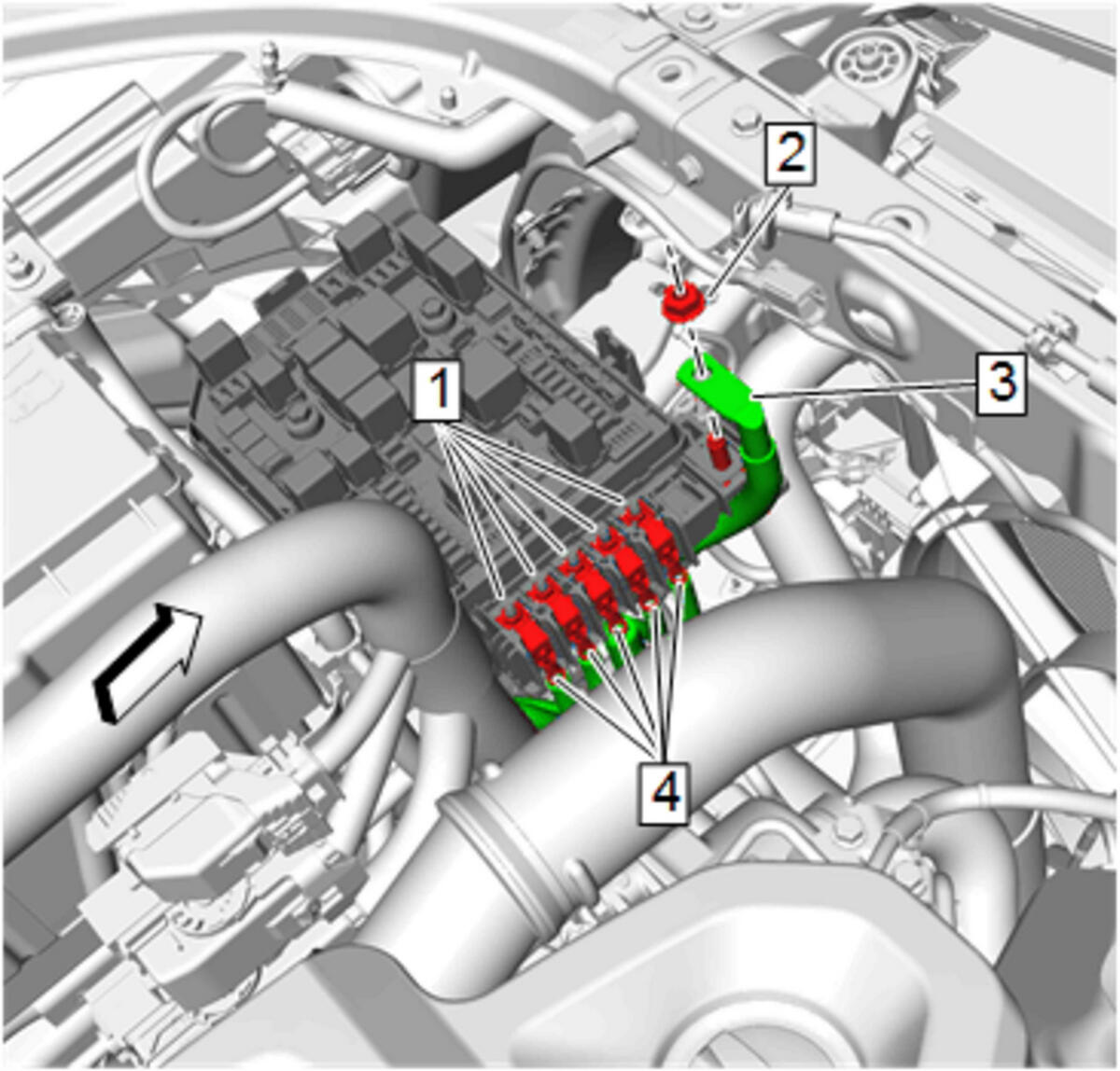

Wiring Harness Terminal (4) - Install [5x]
Engine Wiring Harness Junction Block Nut (1) - Install and tighten [5x] 4.7 N.m (42 lb in)
Battery Positive Junction Block Cable (3) - Install
Battery Positive Junction Block Cable Nut (2) - Install and tighten 12 N.m (106 lb in)
Courtesy of GENERAL MOTORS COMPANY

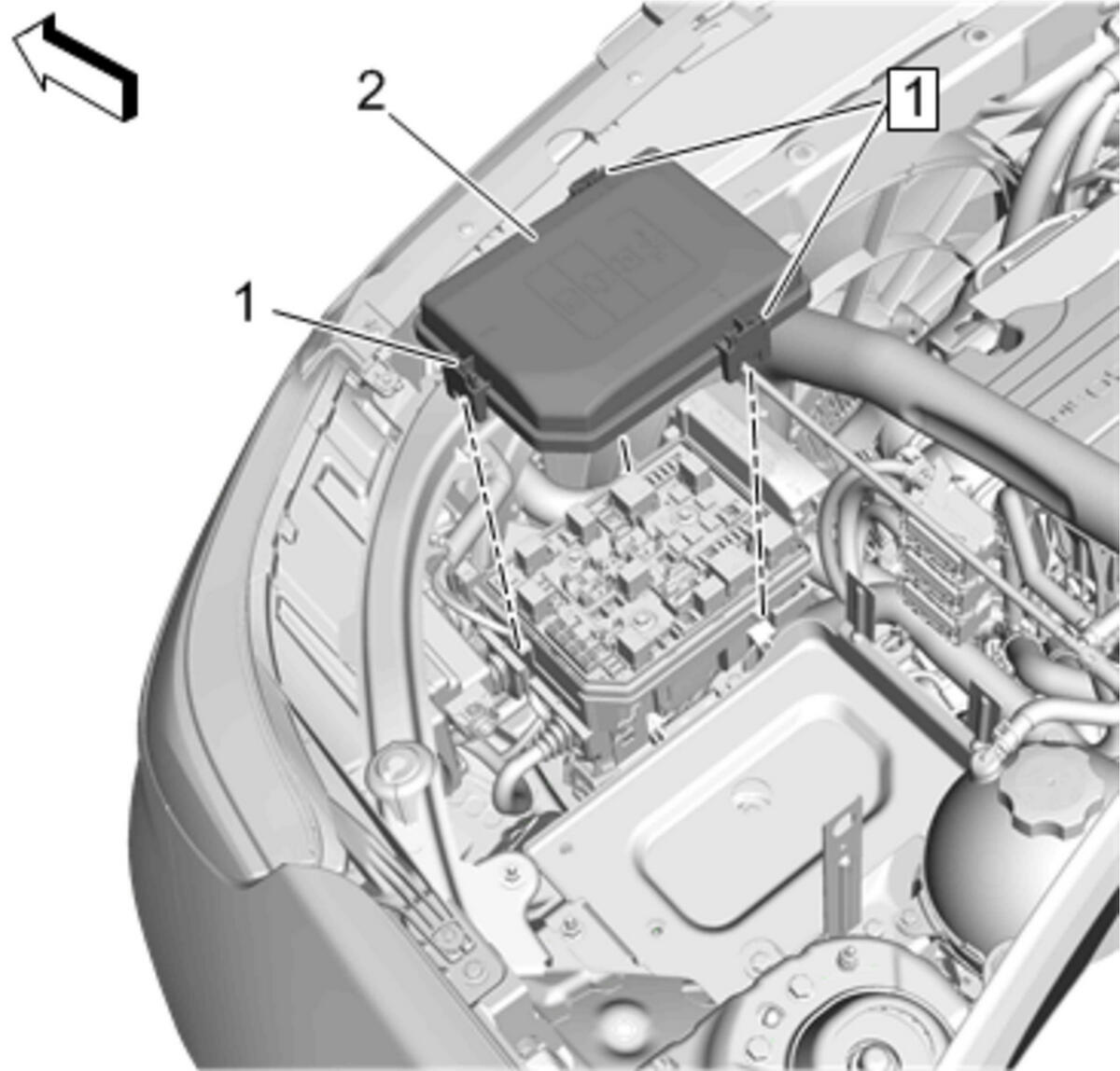

Junction Block Cover (2) - Install
Retaining Tab (1) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Junction Block Cover (2) - Install
Retaining Tab (1) - Engage [3x]
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
