Installation Procedure

  1. GM4582676Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

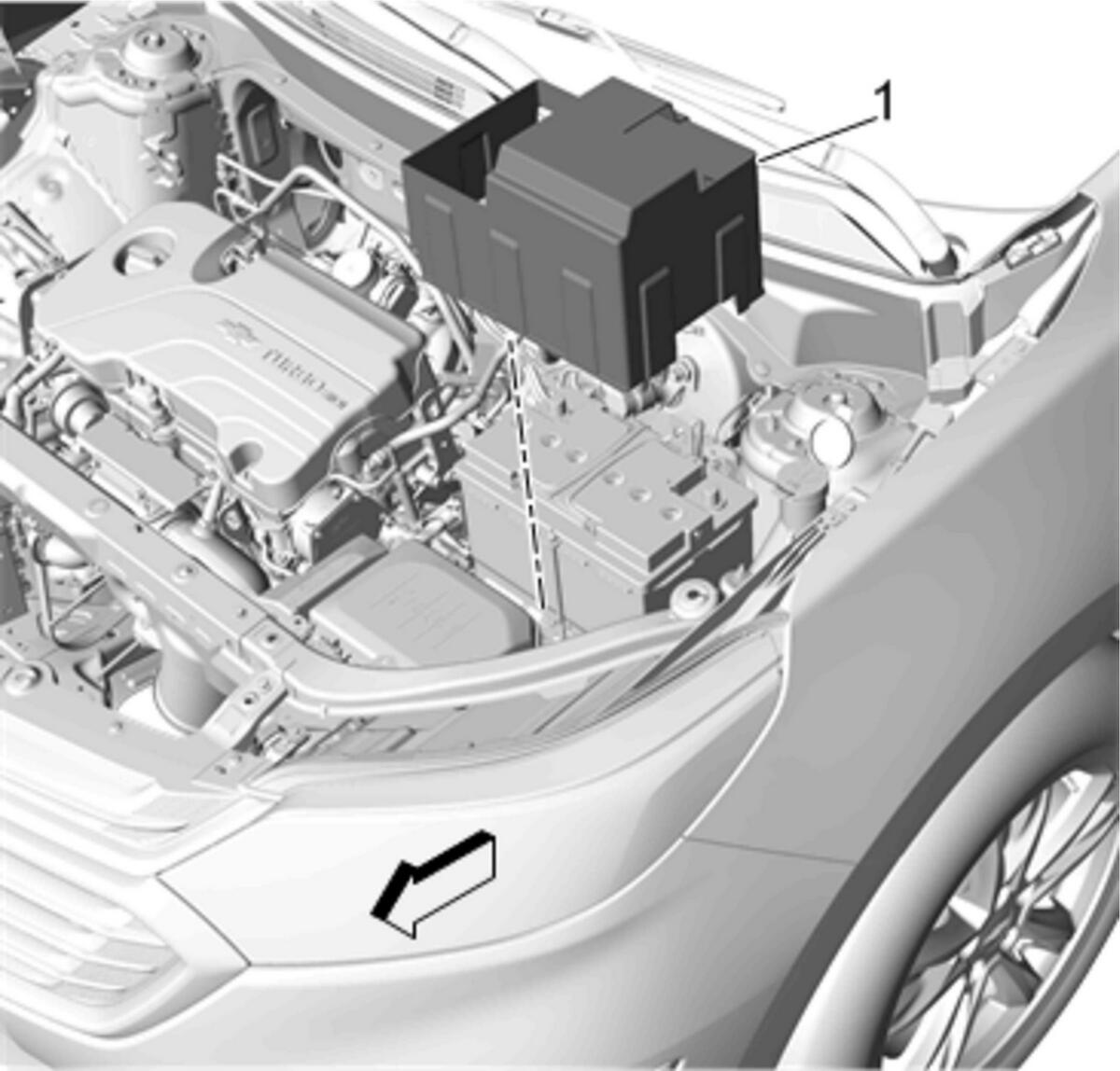

  2. GM4819667Courtesy of GENERAL MOTORS COMPANY

    Battery Cover (1) - Install

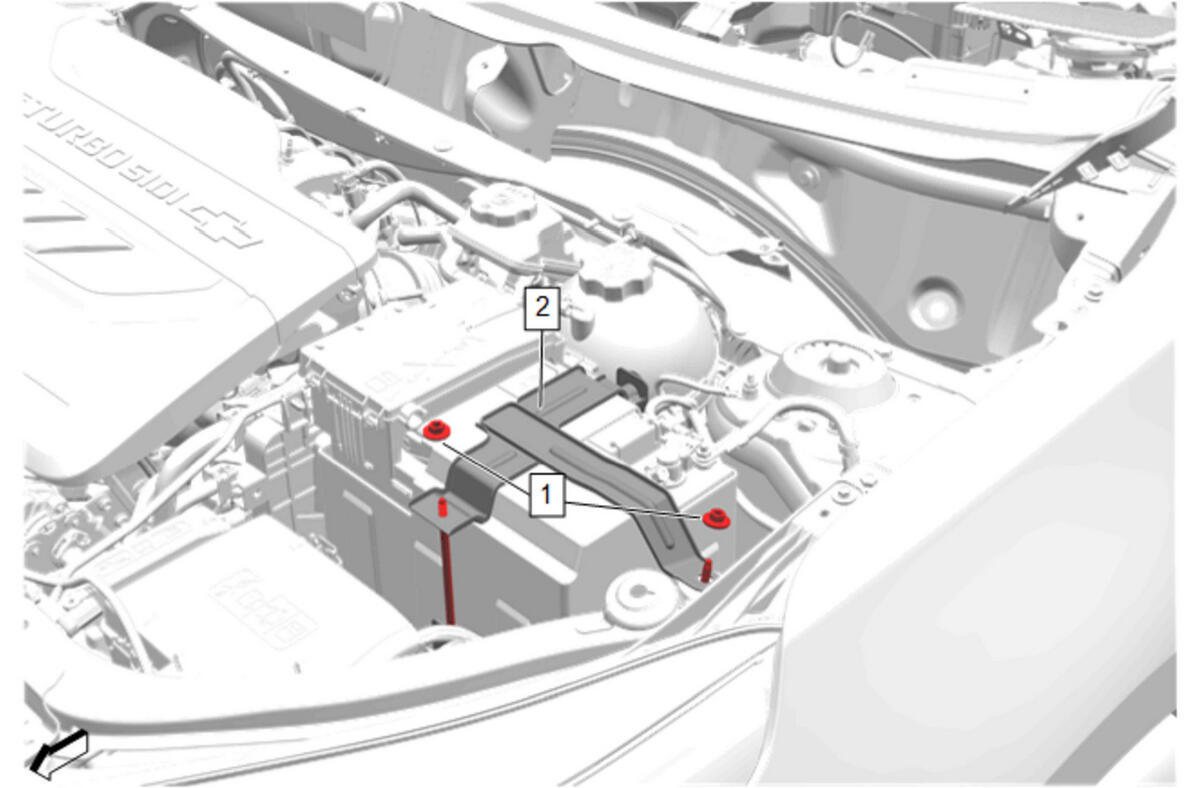

  3. GM4582675Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

    4. CAUTION:

    Refer to Fastener Caution

  4. Battery Hold Down Retainer Nut (1) - Install and tighten [2x] 5 N.m (44 lb in)

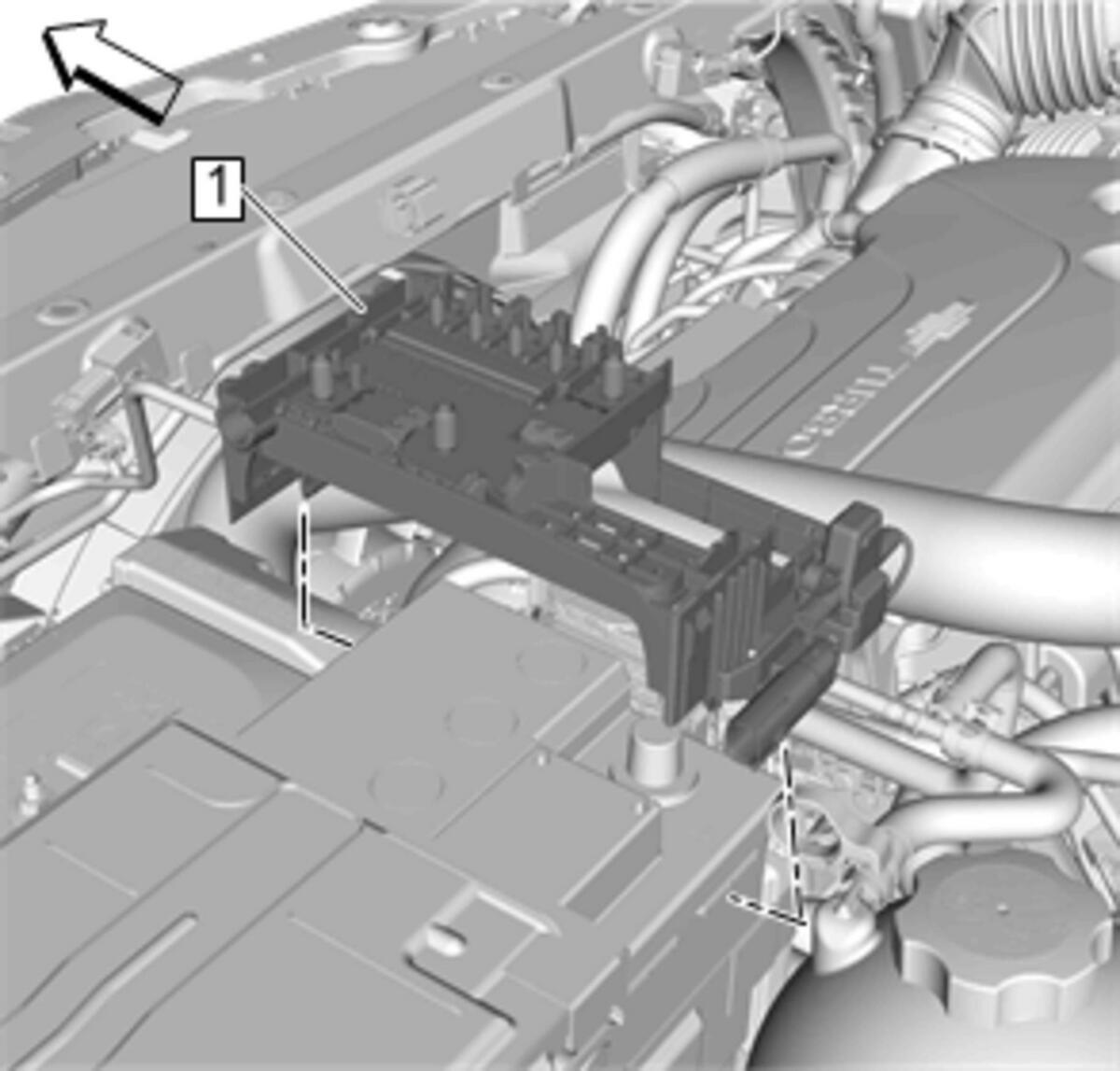

  5. GM4578547Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (1) - Install - Battery Distribution Engine Compartment Fuse Block Replacement

  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
