Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)

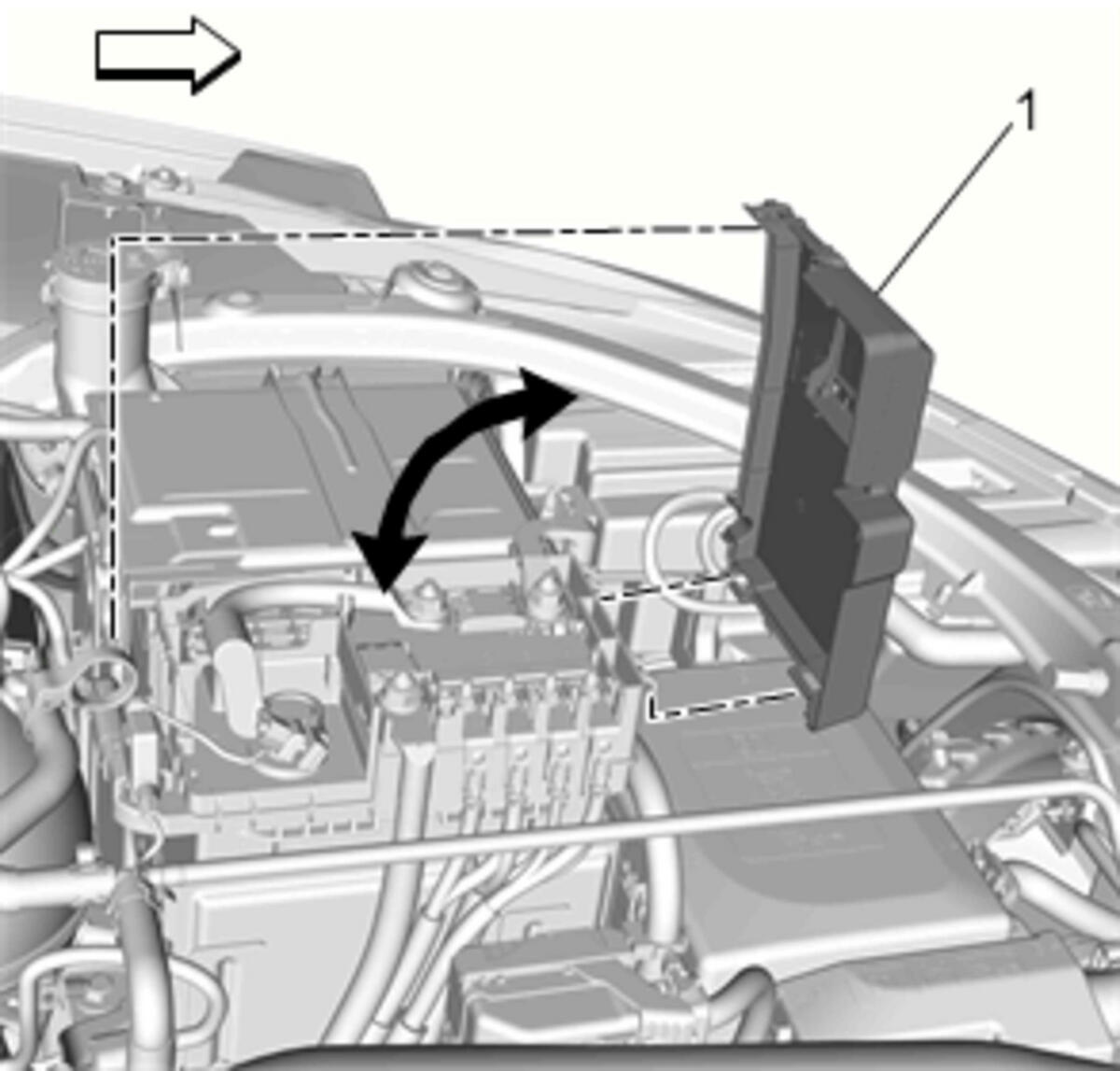

  2. GM4578539Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (1) - Open

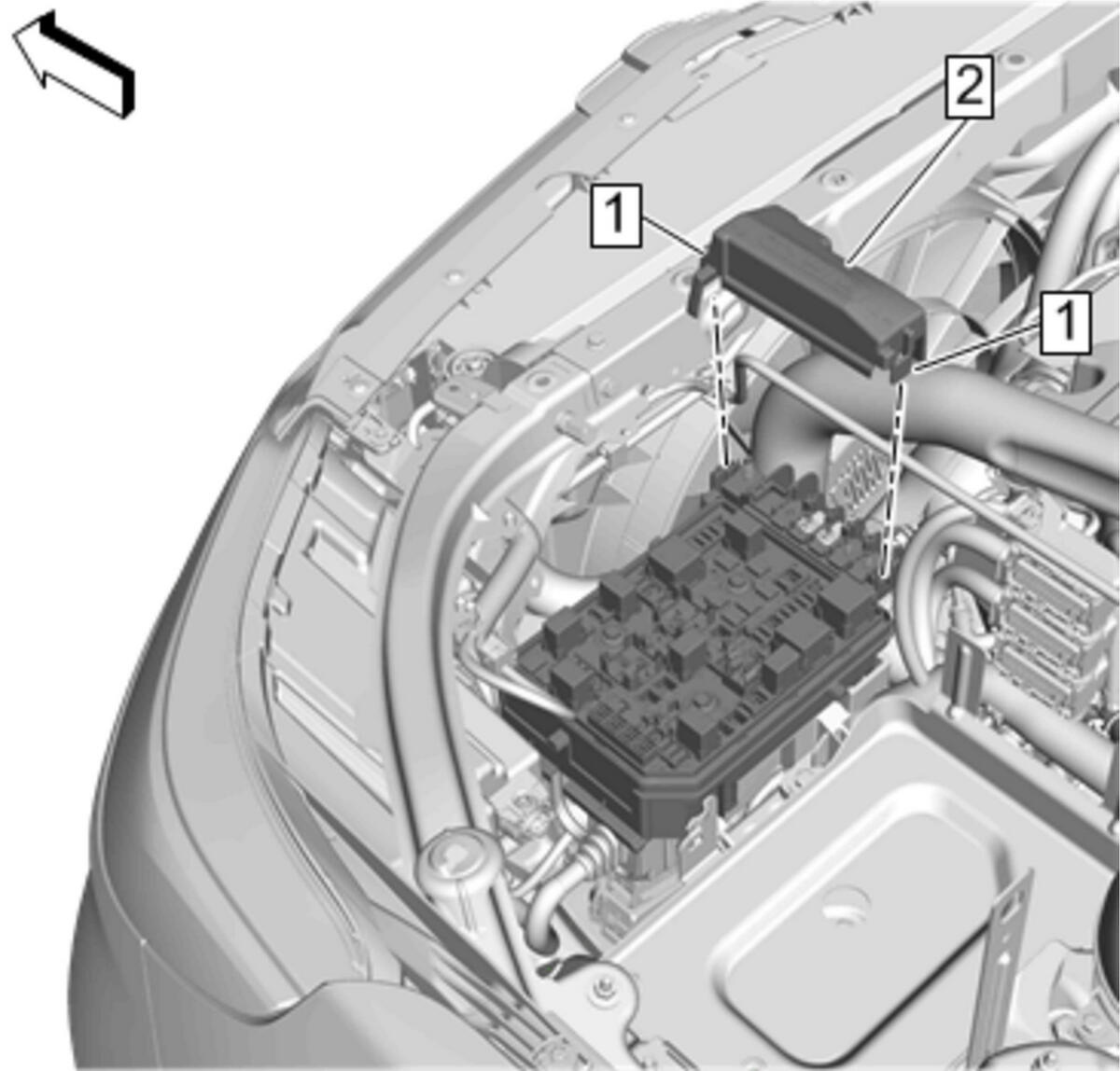

  3. GM4583403Courtesy of GENERAL MOTORS COMPANY

    Retaining Tab (1) - Disengage [2x]

  4. Junction Block Cover (2) - Remove

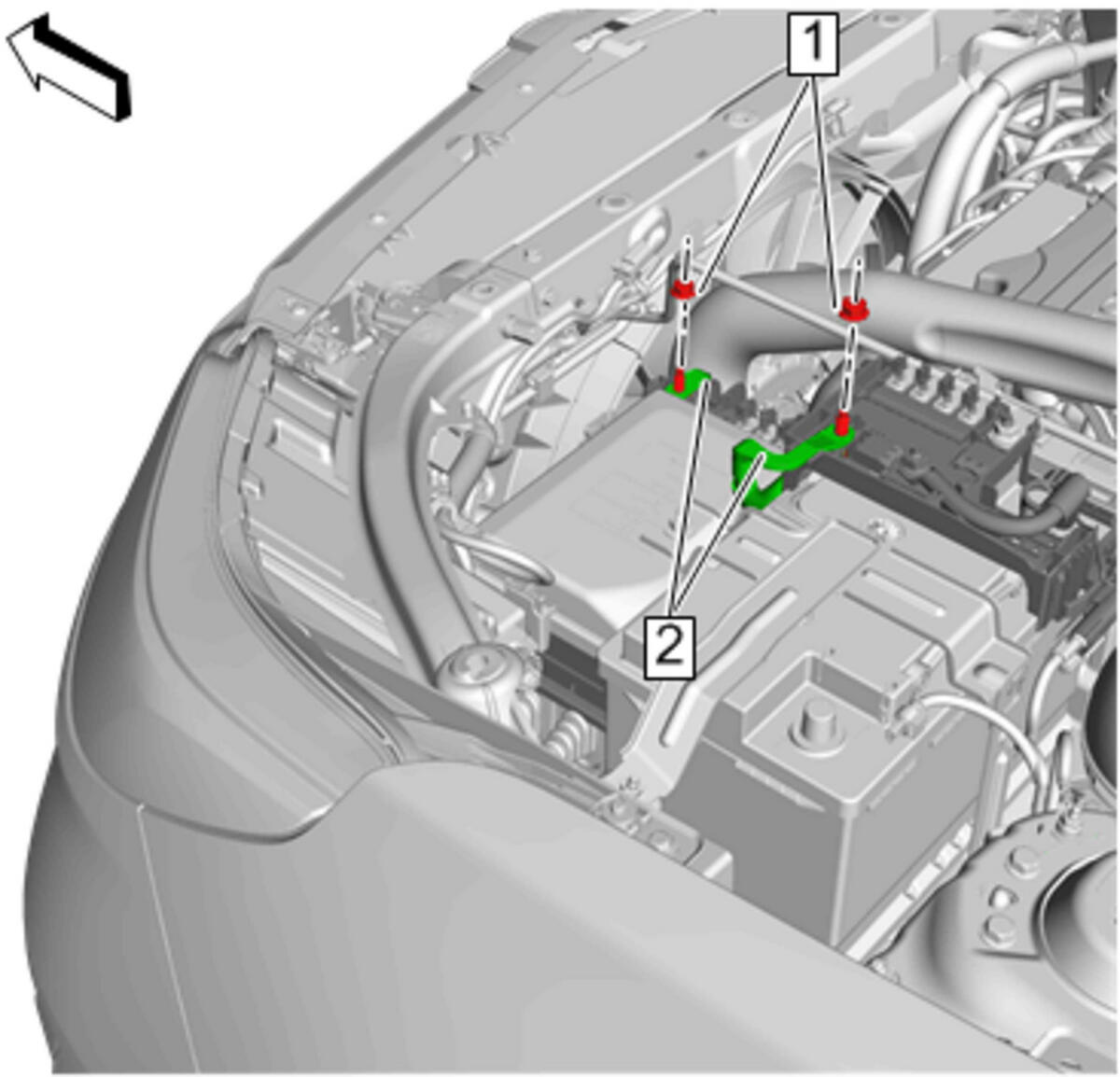

  5. GM4583646Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Junction Block Cable Nut (1) - Remove [2x]

  6. Battery Positive Junction Block Cable (2) - Reposition away

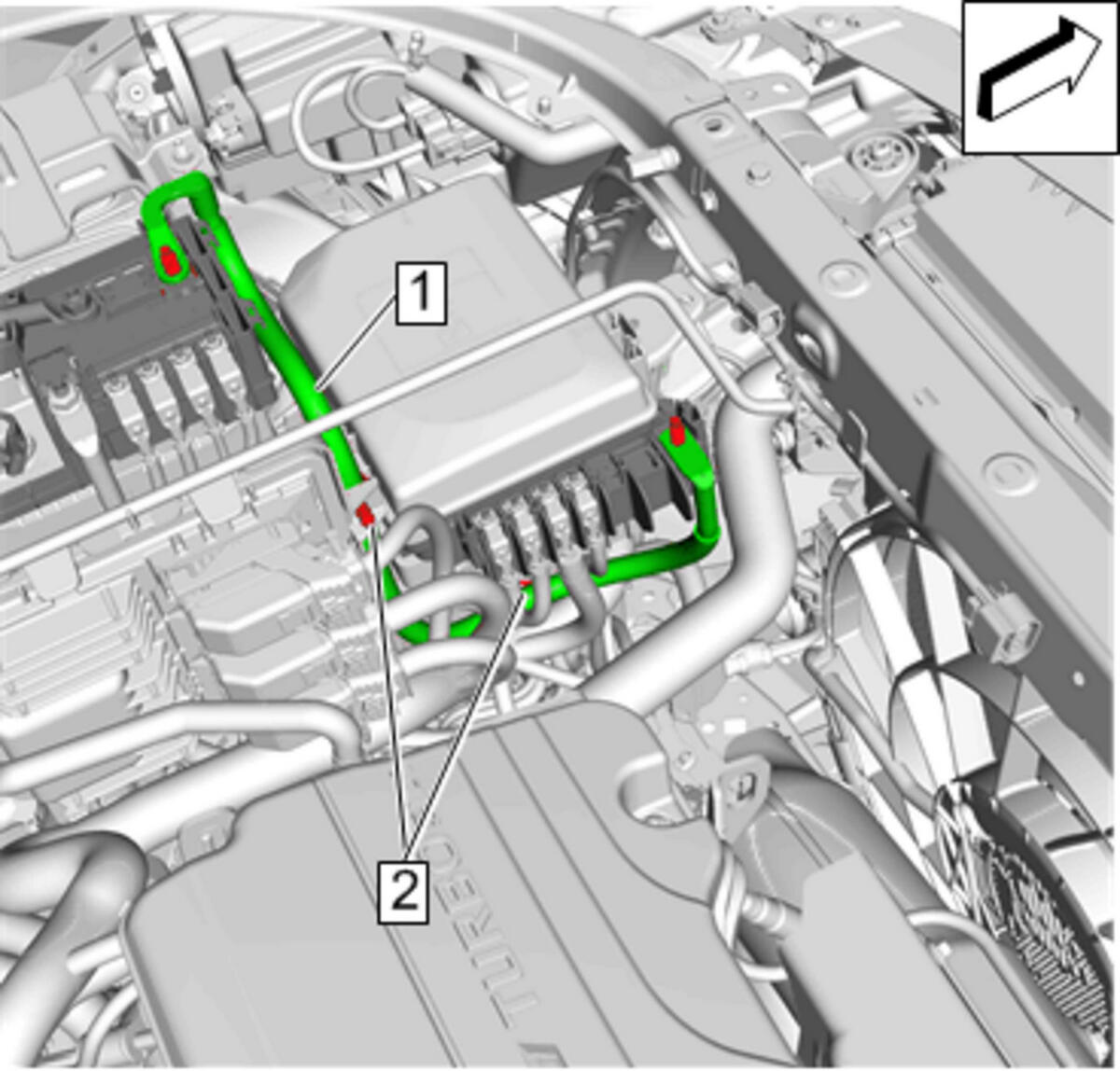

  7. GM4583647Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Disengage [2x]

  8. Battery Positive Junction Block Cable (1) - Remove
