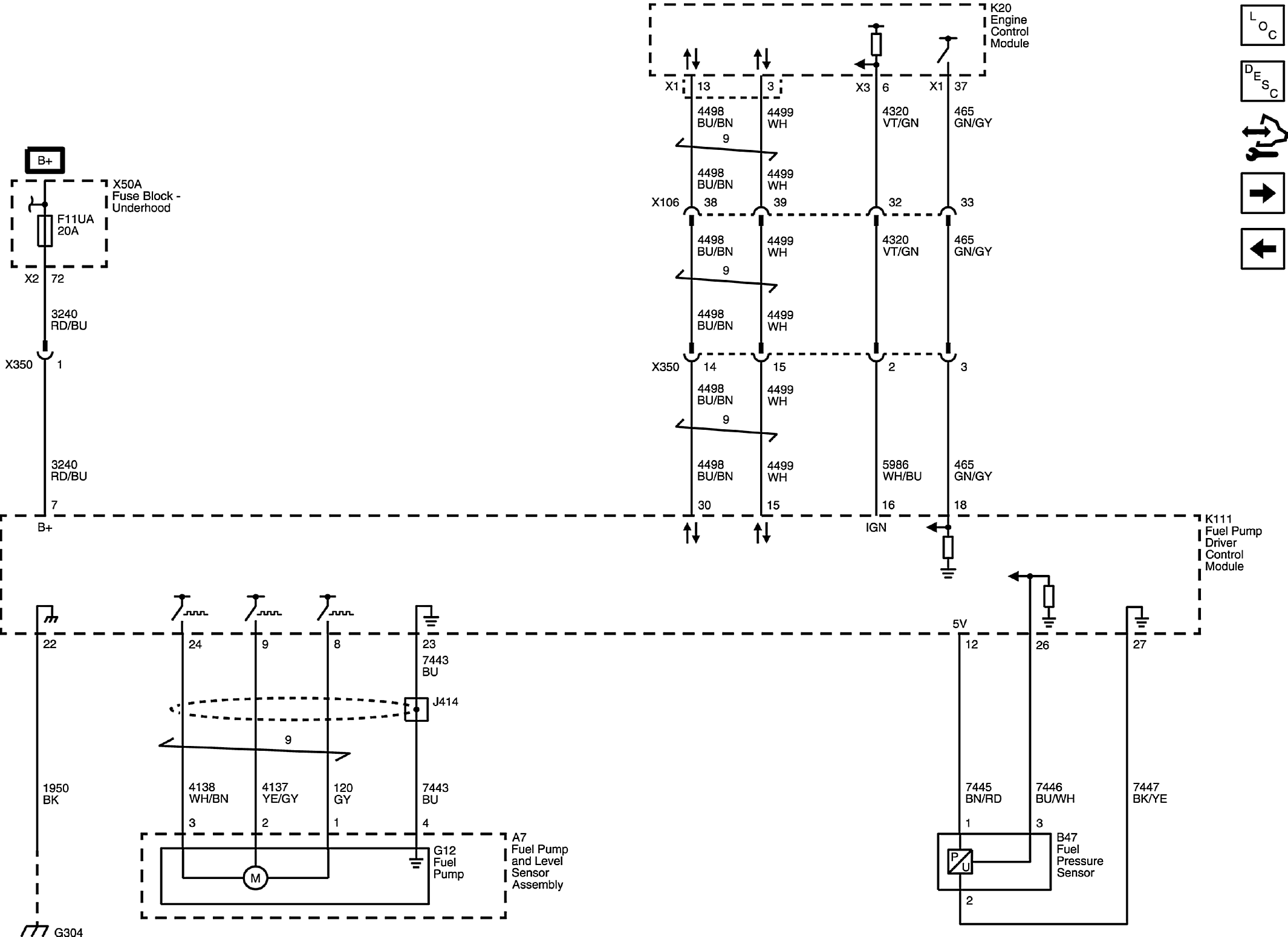

Fuel Controls - Fuel Pump and Fuel Pump Driver Control Module

GM5393683

Courtesy of GENERAL MOTORS COMPANY
