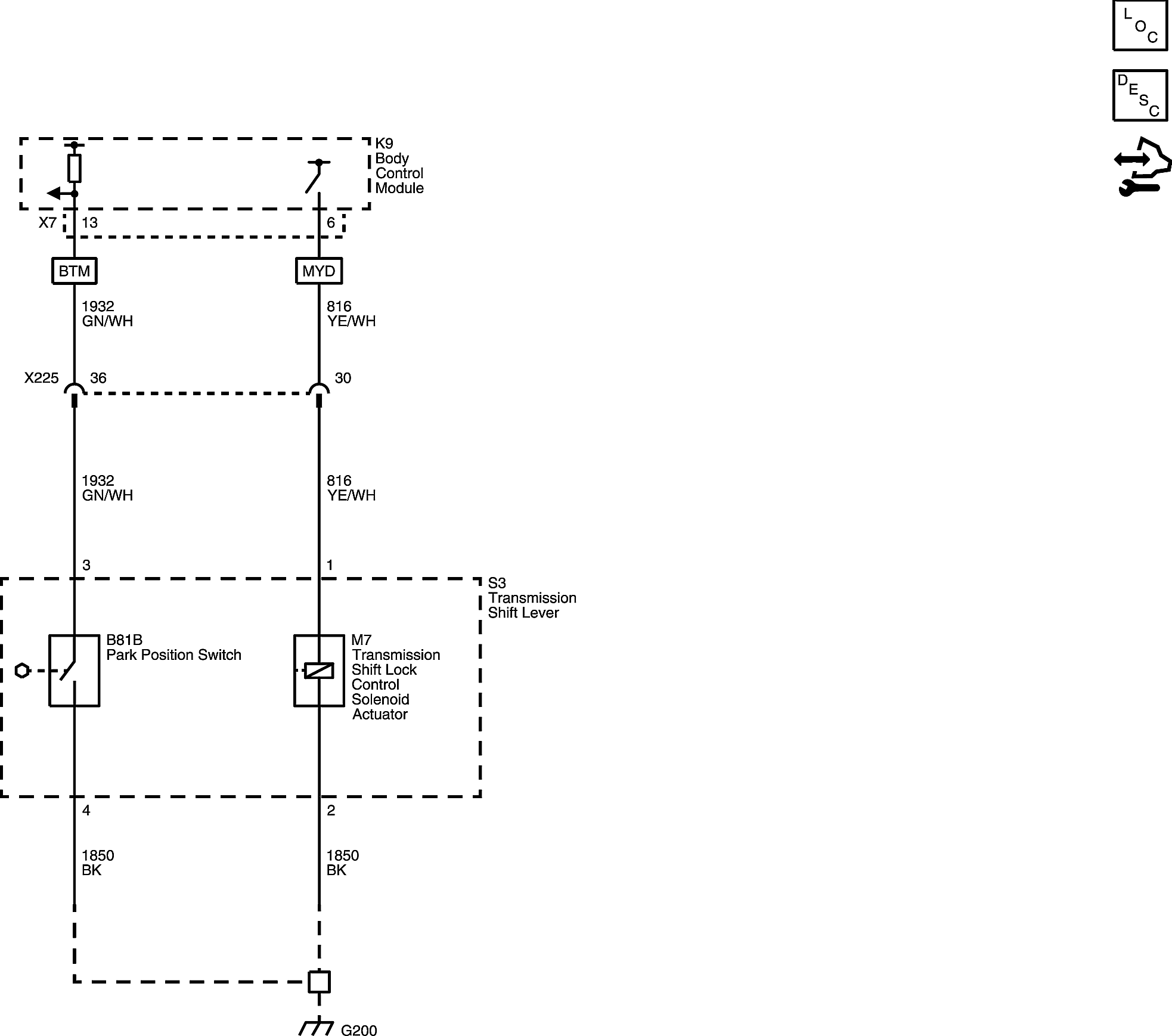

Home >> GMC >> 2020 >> Sierra 2500 HD AT4, 6.6L Eng VIN Y >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control
