Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

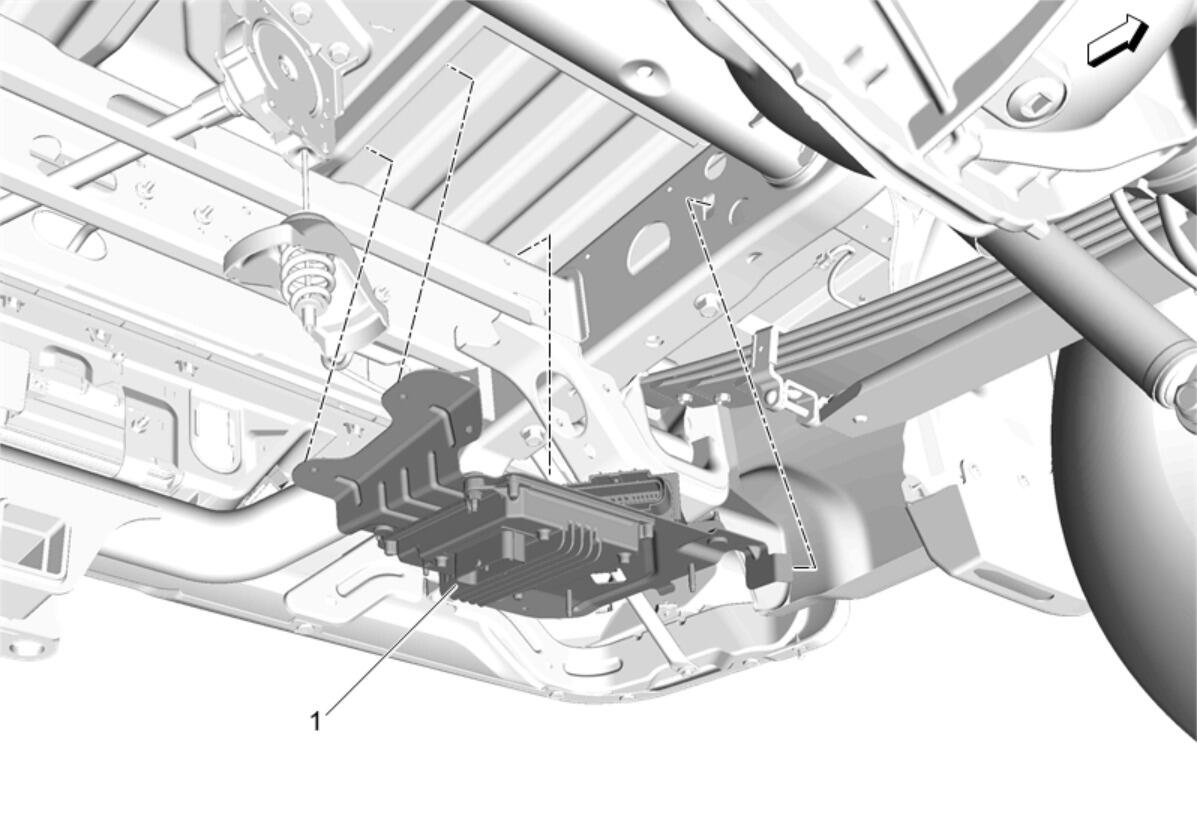

  2. GM5248147Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module And Bracket Assembly (1) - Remove - Fuel Pump Power Control Module Replacement (Crew Cab)

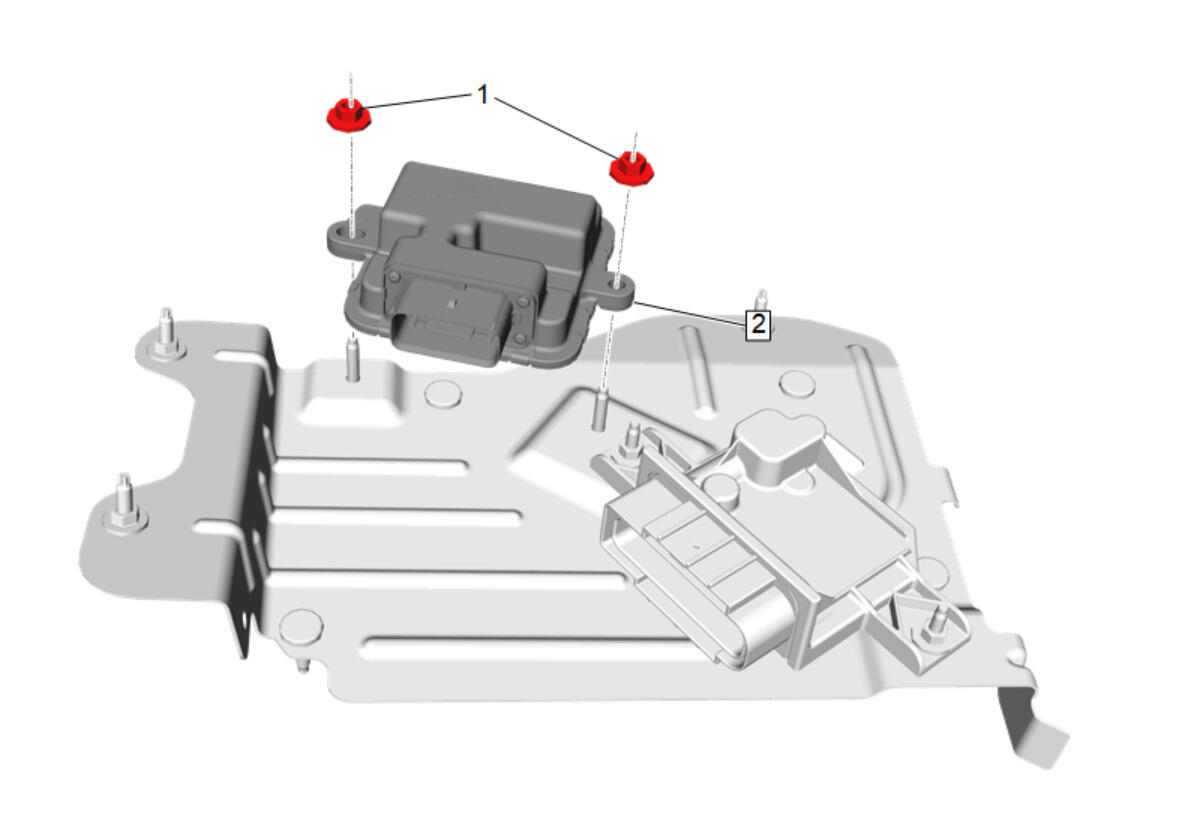

  3. GM5312832Courtesy of GENERAL MOTORS COMPANY

    Trailer Brake Power Control Module Nut (1) - Remove [ 2x]

  4. Trailer Brake Power Control Module (2) - Remove
