Pickup Box Endgate Lock Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

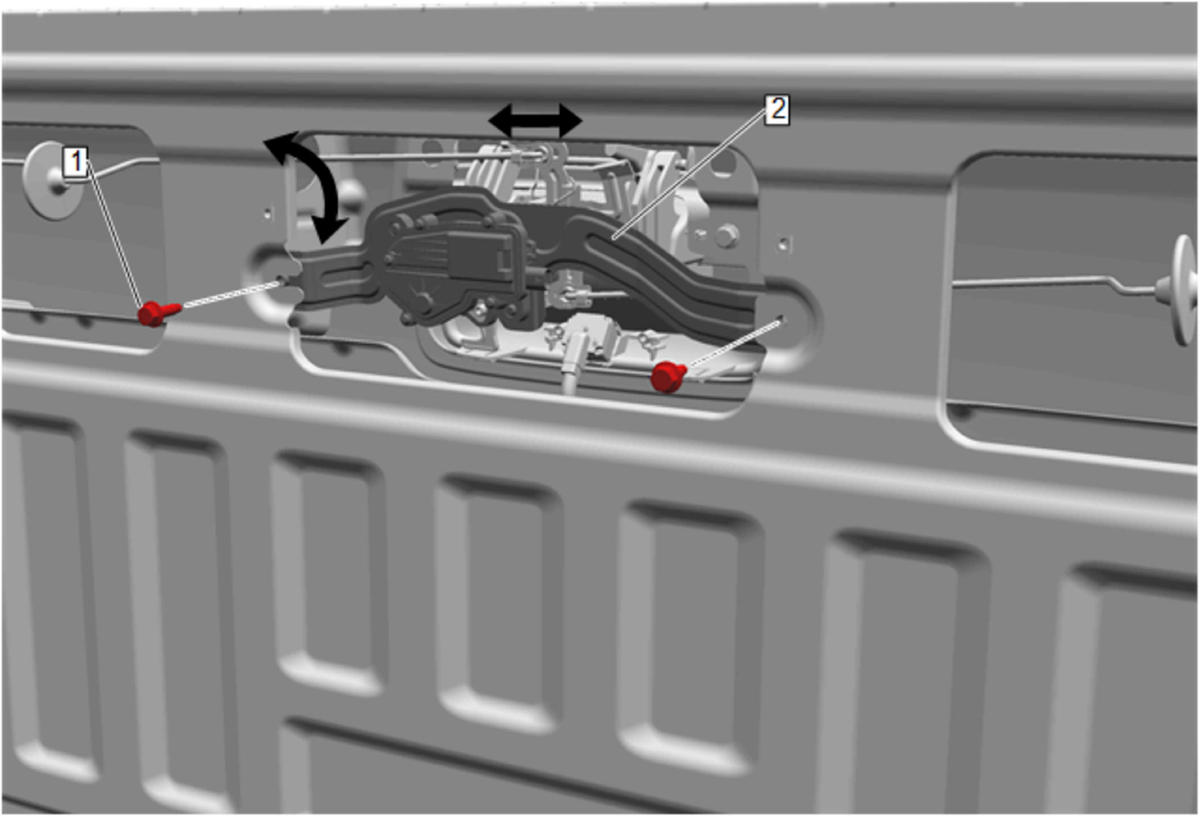

Callout	Component Name
Preliminary Procedure Pickup Box Endgate Access Hole Cover Panel Replacement
1	Pickup Box Endgate Lock Actuator Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Pickup Box Endgate Lock Actuator Procedure Slide the pickup box endgate lock actuator to the right or left and remove it from behind the pickup box endgate inner panel. Disconnect the electrical connectors.

Callout

Component Name

Pickup Box Endgate Lock Actuator Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Pickup Box Endgate Lock Actuator

Procedure

Slide the pickup box endgate lock actuator to the right or left and remove it from behind the pickup box endgate inner panel.
Disconnect the electrical connectors.
