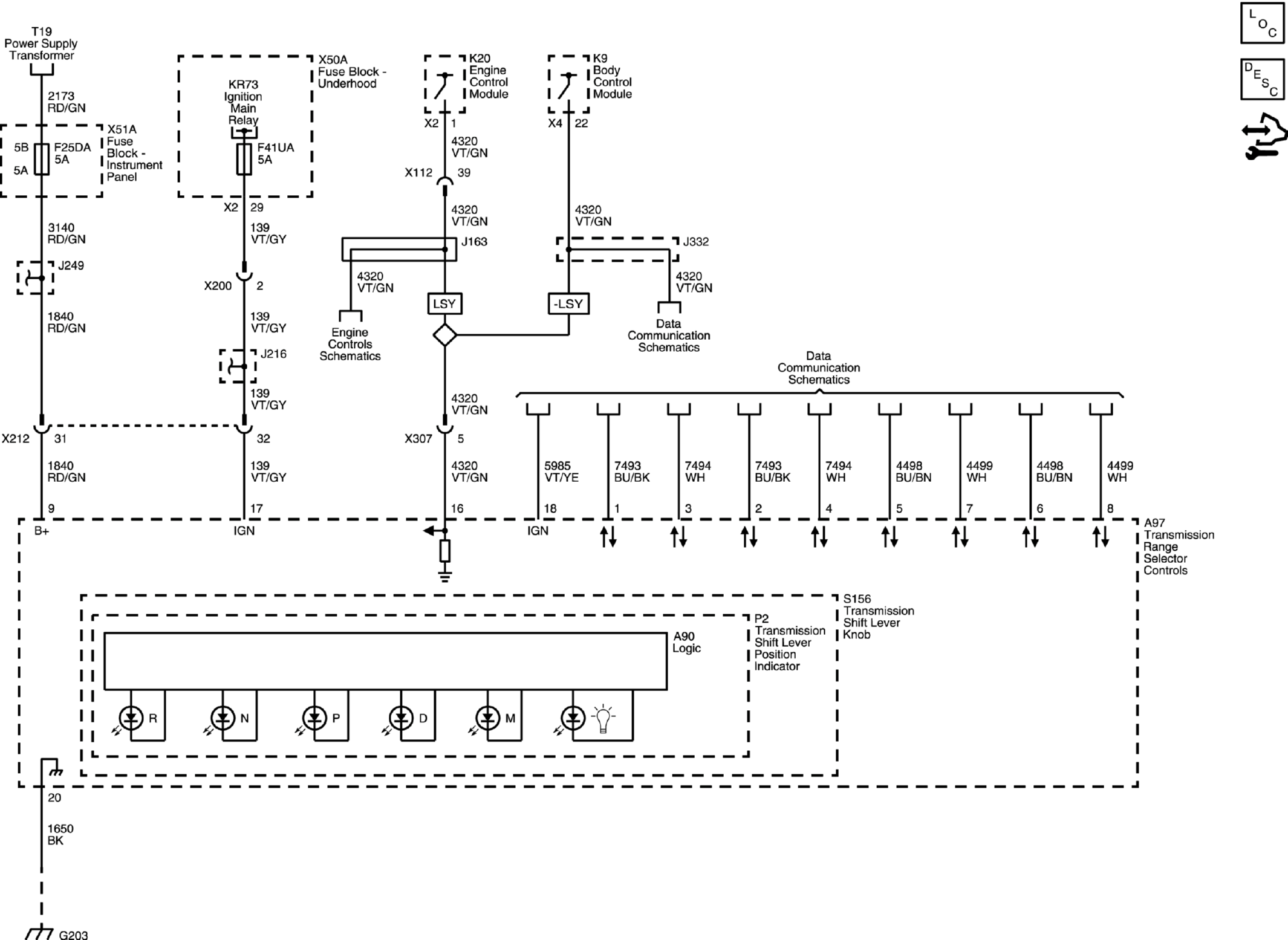

Electronic Shift Controls - Power, Ground and Serial Data

GM5342334

Courtesy of GENERAL MOTORS COMPANY
