Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

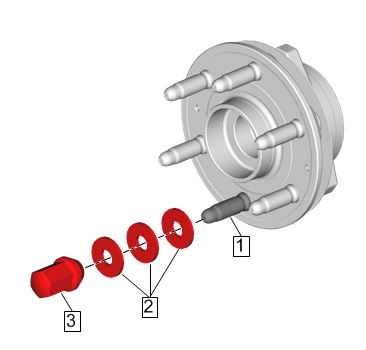

Position the NEW wheel stud (1) in the flange of the hub assembly.
- Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
- Use a suitable tool to prevent the flange on the hub assembly from rotating.
- Tighten the wheel nut until the wheel stud is firmly seated.
- Remove the wheel nut and flat washers.
- Front Wheel Bearing and Hub Assembly - Install - Front Wheel Bearing and Hub Replacement
