Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

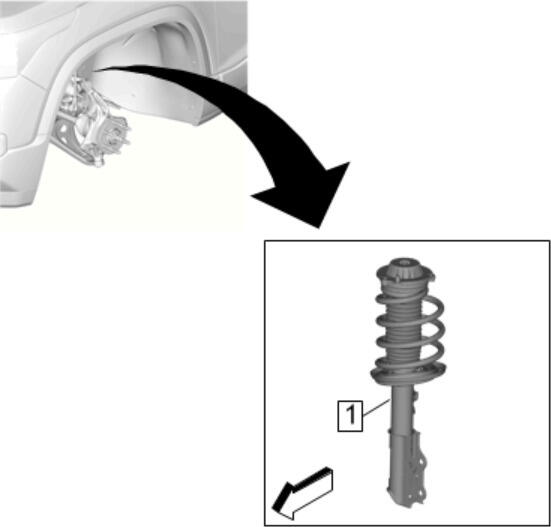

Position the front suspension strut assembly (1) on the vehicle.

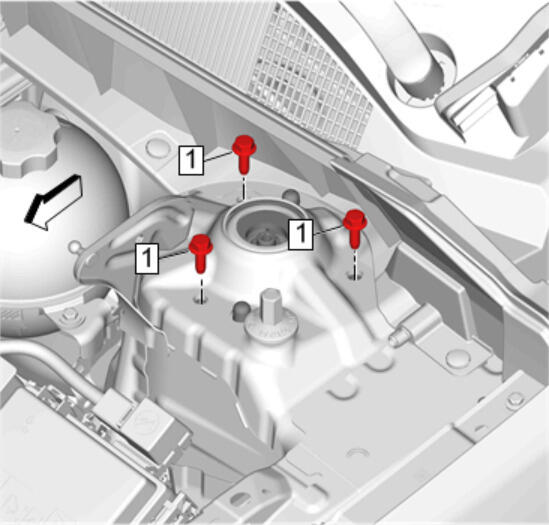

Front Suspension Strut Bolt (1) - Install, but do NOT tighten [3x]
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
Steering Knuckle Bolt (2) - Install NEW [2x]
- Steering Knuckle Nut (1) - Install and tighten [2x]
Tighten
- First Pass: 100 N.m (74 lb ft)
- Final Pass: (45 - 60 degrees)
Front Stabilizer Shaft Link (1)@Strut Assembly - Install - Stabilizer Shaft Link Replacement
Front Wheel Speed Sensor Wiring Harness (1)@Strut Assembly - Install
- { If equipped }Electrical Connector@Strut Assembly - Connect
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle completely.
Front Suspension Strut Bolt (1) - Tighten [3x] 22 N.m (16 lb ft)
- Measure and adjust the wheel alignment. Wheel Alignment Measurement
CAUTION:
Refer to Fastener Caution .
