Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

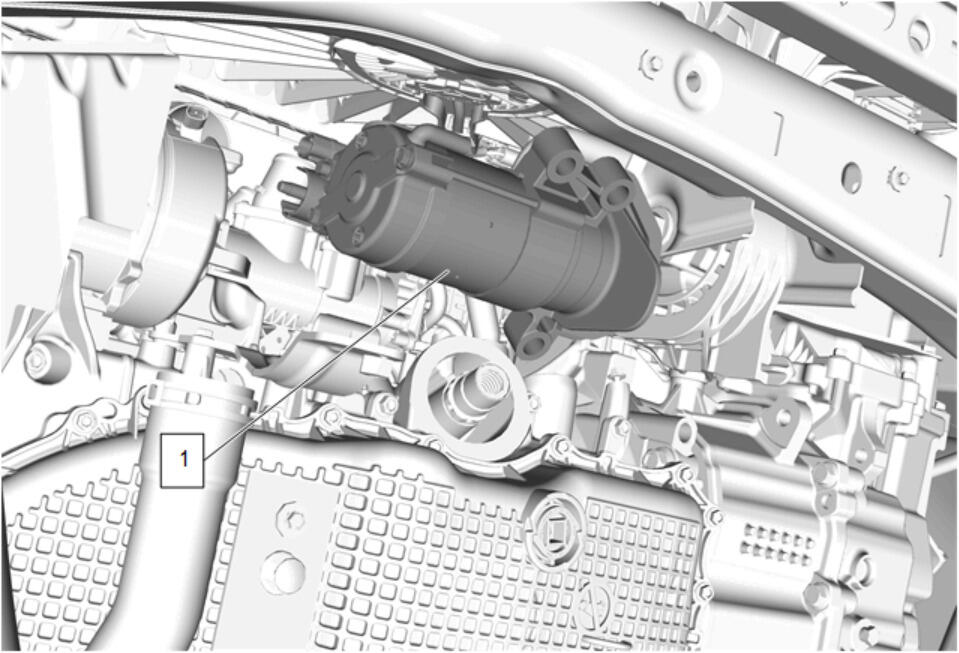

Starter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

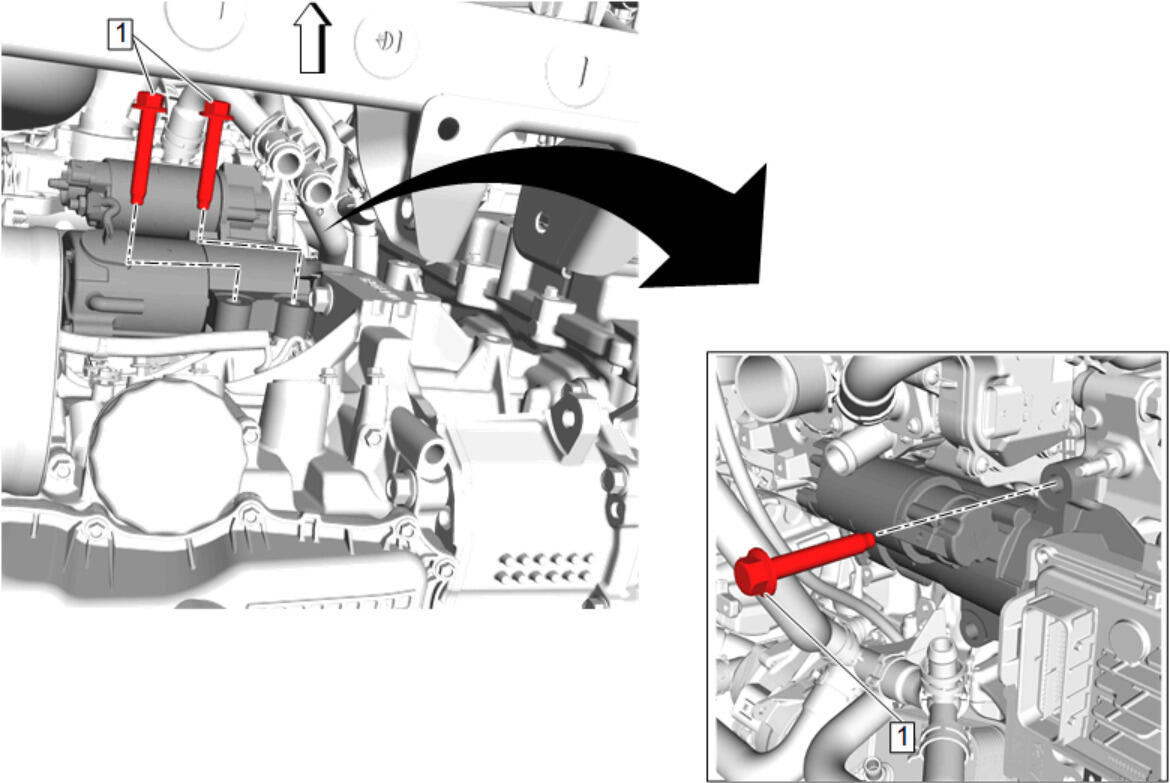

Starter Bolt (1) - Install and tighten [3x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

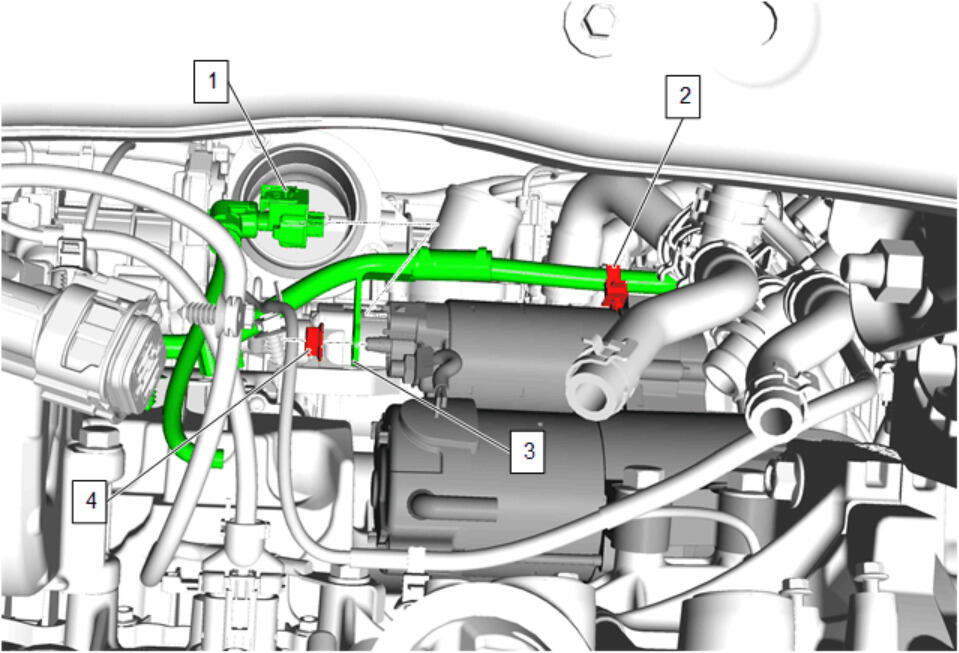

Battery Positive Cable (3) - Install
Battery Positive Cable Nut (4) @Starter Solenoid - Install and tighten 12.5 N.m (111 lb in)
Electrical Connector (1) - Connect
Retainer (2) - Engage
Courtesy of GENERAL MOTORS COMPANY

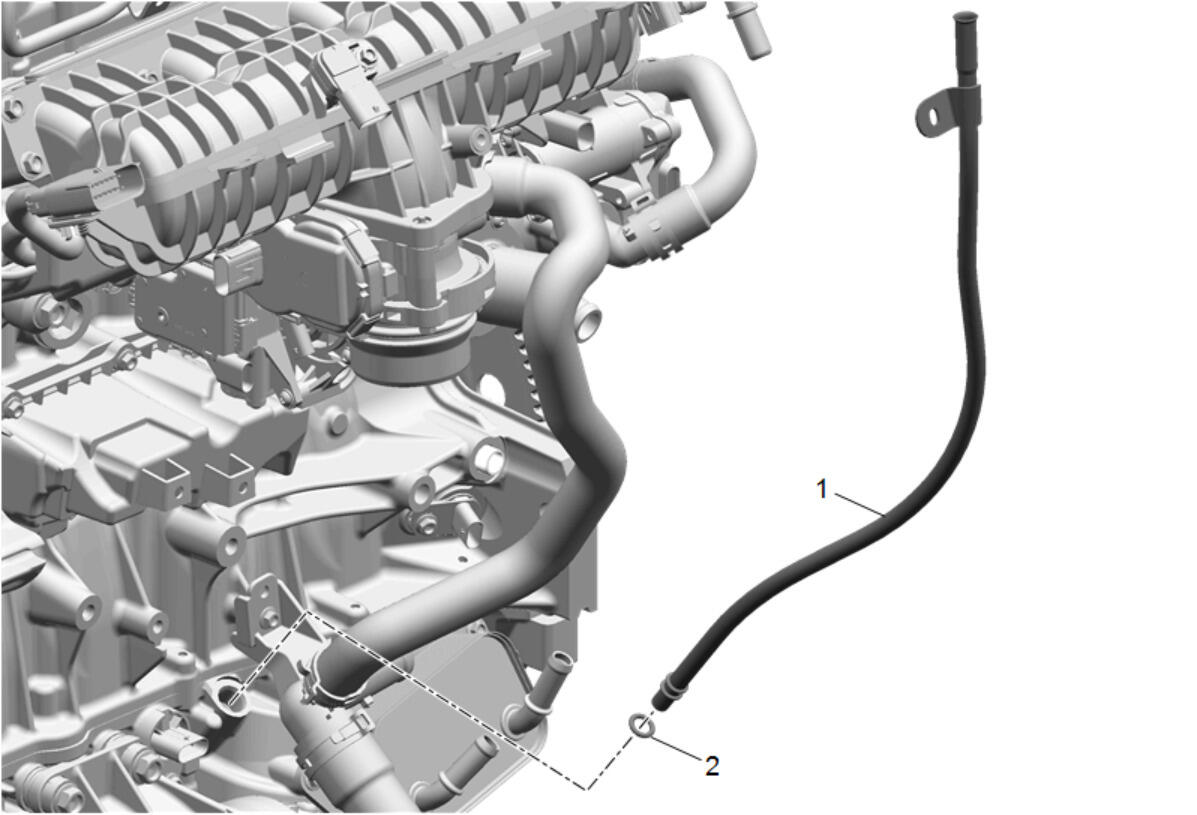

Oil Level Indicator Tube (1) - Install - Oil Level Indicator Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

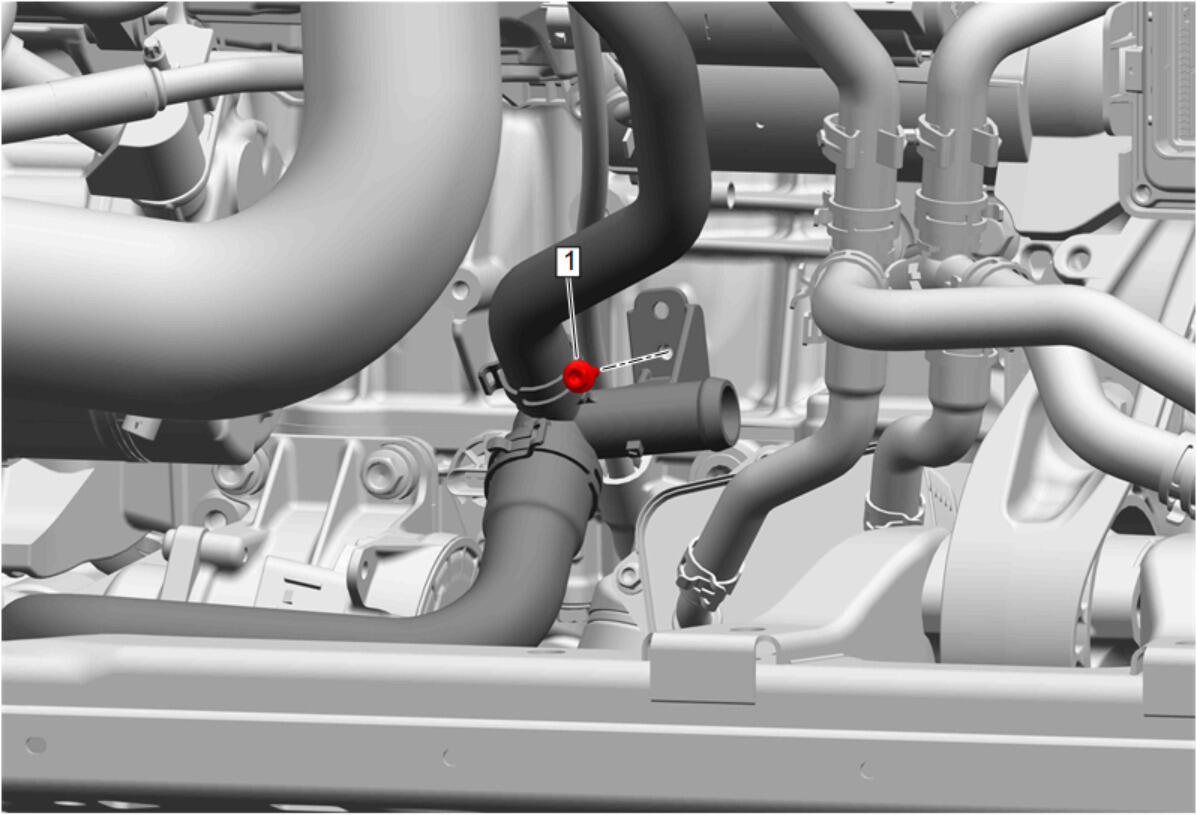

Install the thermostat bypass hose connector. Thermostat Bypass Hose Replacement (LSY)
Courtesy of GENERAL MOTORS COMPANY

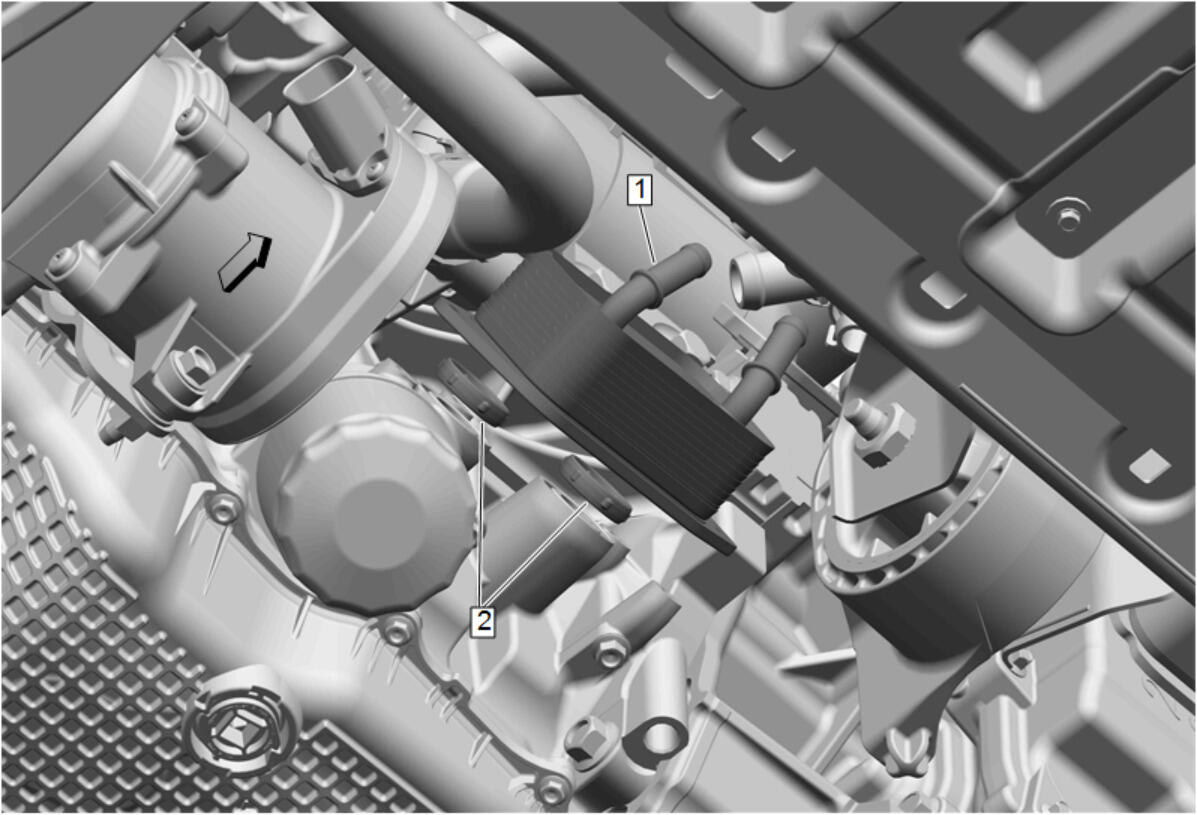

Engine Oil Cooler (1) - Install - Engine Oil Cooler Replacement (LSY)
Lower the vehicle.
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
