Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. GM5160670Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement

  3. Accessory Drive Primary Belt - Remove - Accessory Drive Primary Belt Replacement
  4. Drive Belt Tensioner - Reposition - Drive Belt Tensioner Replacement
  5. GM5159793Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut (2) @Generator - Remove

  6. Battery Positive Cable (1) - Remove
  7. GM5160903Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Disengage

  8. GM5161779Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) - Disconnect

  9. Position wire harness out of the way for ease of removal.

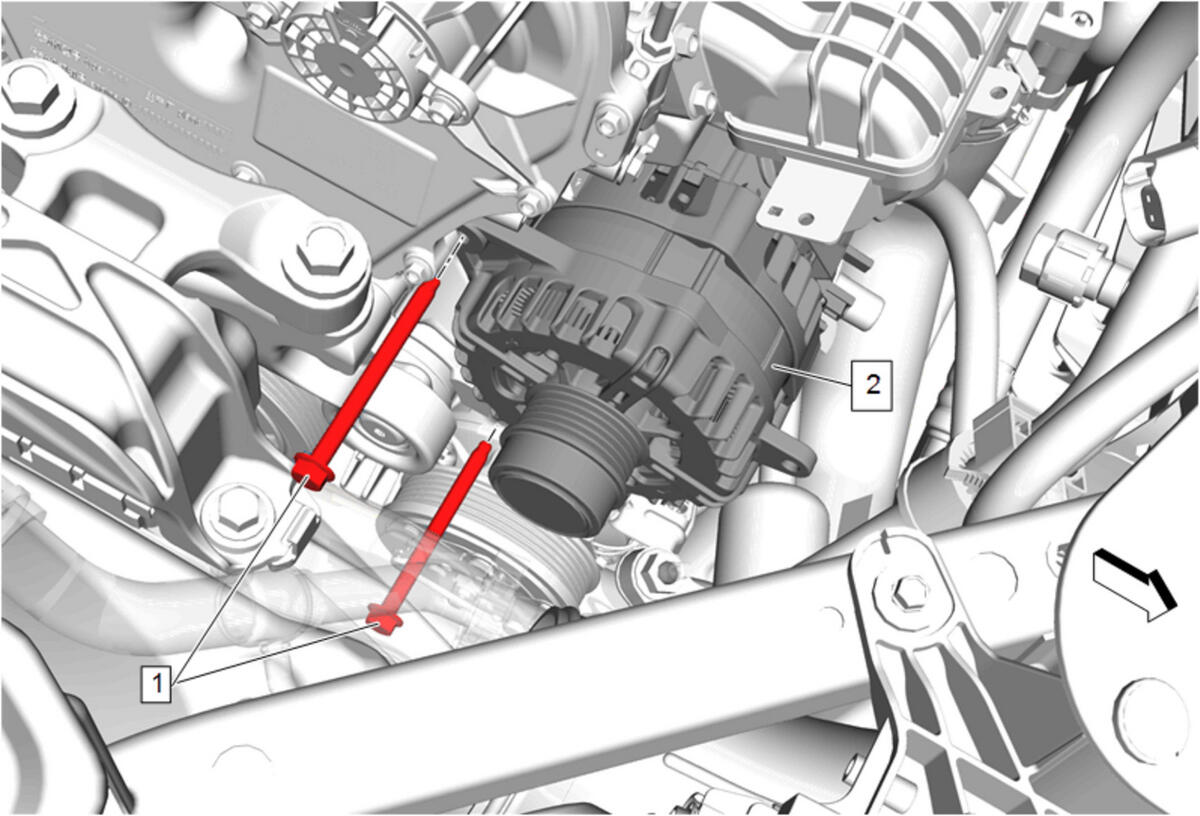

  10. GM5160912Courtesy of GENERAL MOTORS COMPANY

    Generator Bolt (1) - Remove [2x]

  11. Generator (2) - Remove
