Installation Procedure

  1. GM4310677Courtesy of GENERAL MOTORS COMPANY

    Generator (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bolt (1) Install and tighten [2x] 22 N.m (16 lb ft)
  3. GM4288970Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (4) - Connect

  4. Battery Positive Cable (1) - Install
  5. Battery Positive Cable Nut (2) @Generator - Install and tighten 15 N.m (11 lb ft)
  6. Protective Cap (3) - Install
  7. GM4295383Courtesy of GENERAL MOTORS COMPANY

    Drive Belt Idler Pulley (2) - Install - Drive Belt Idler Pulley Replacement

  8. GM4283461Courtesy of GENERAL MOTORS COMPANY

    Install the drive belt. (1) - Drive Belt Replacement

  9. Connect the A/C Refrigerant Pressure Sensor Connector. Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LCV, LGX)
  10. GM4372139Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (1) - Remove - Radiator Air Upper Baffle Replacement (LGX)

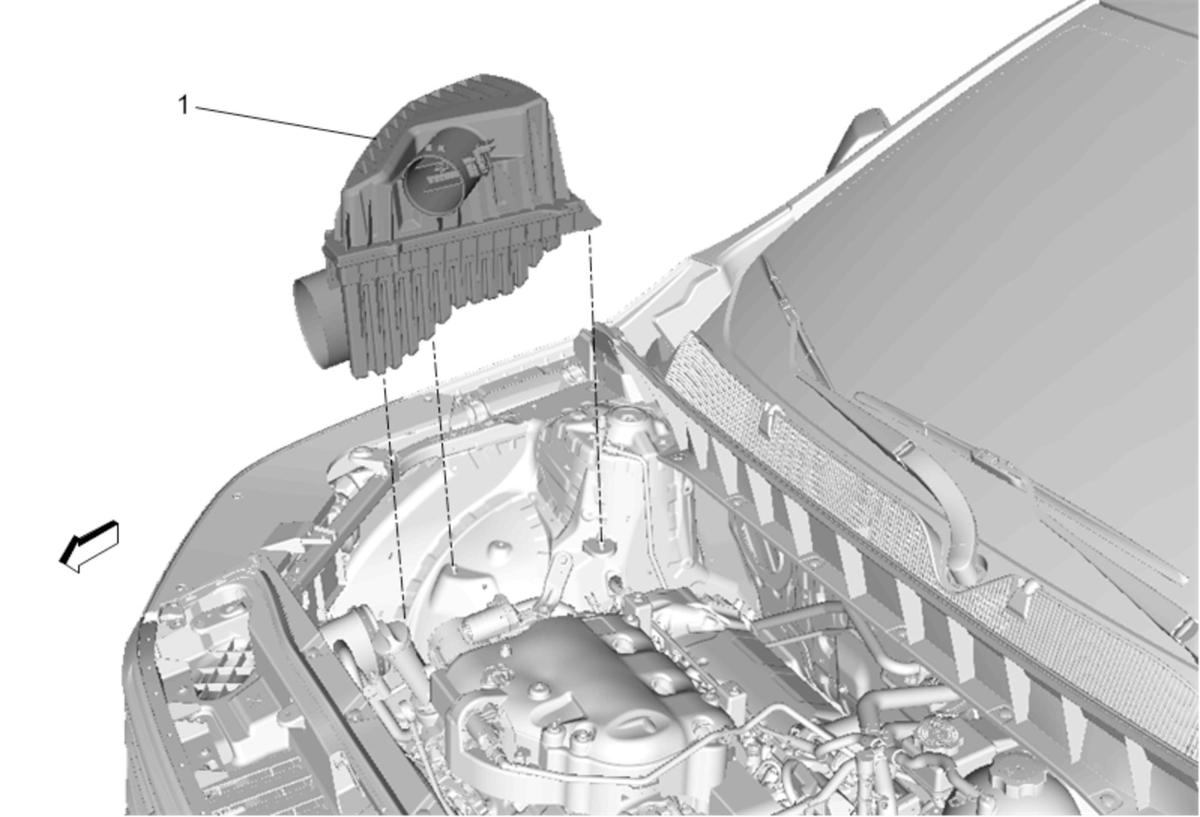

  11. GM4363930Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement

  12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
