Installation Procedure

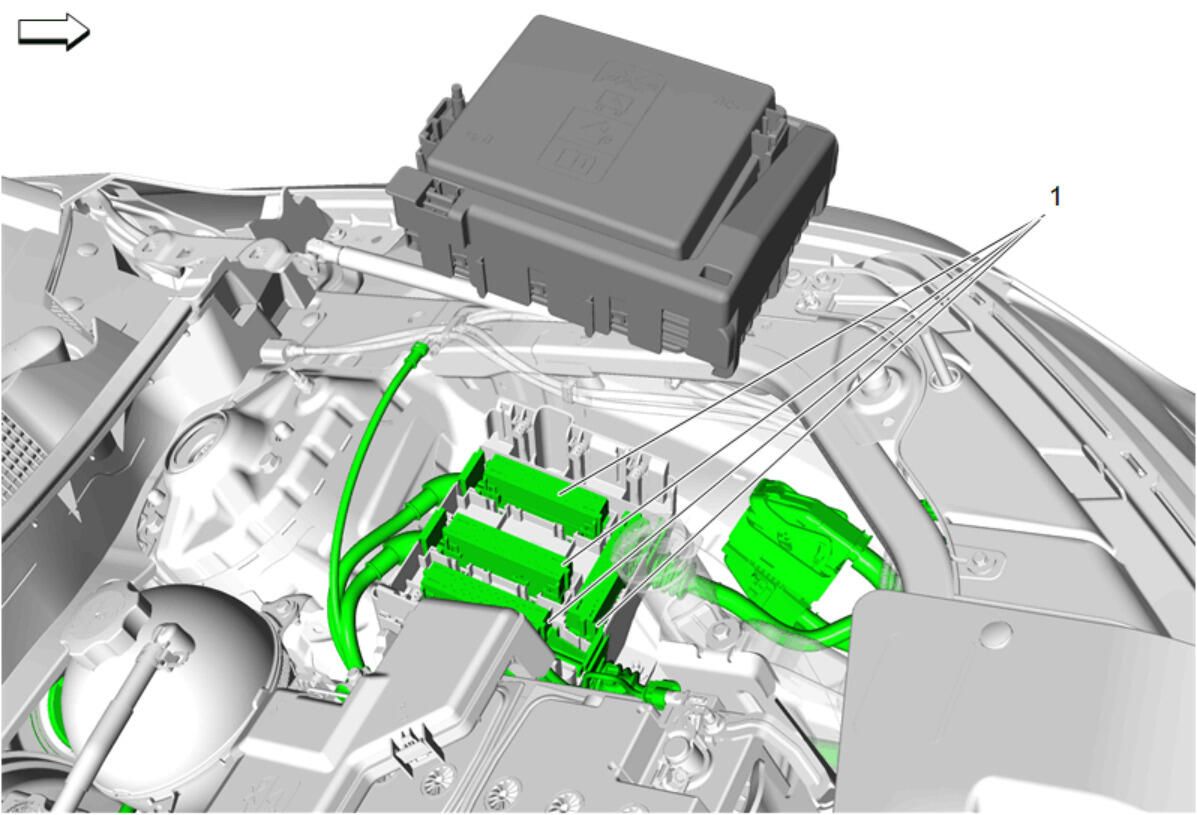

Ensure all electrical connectors (1) are properly seated in the bracket assembly cavity.

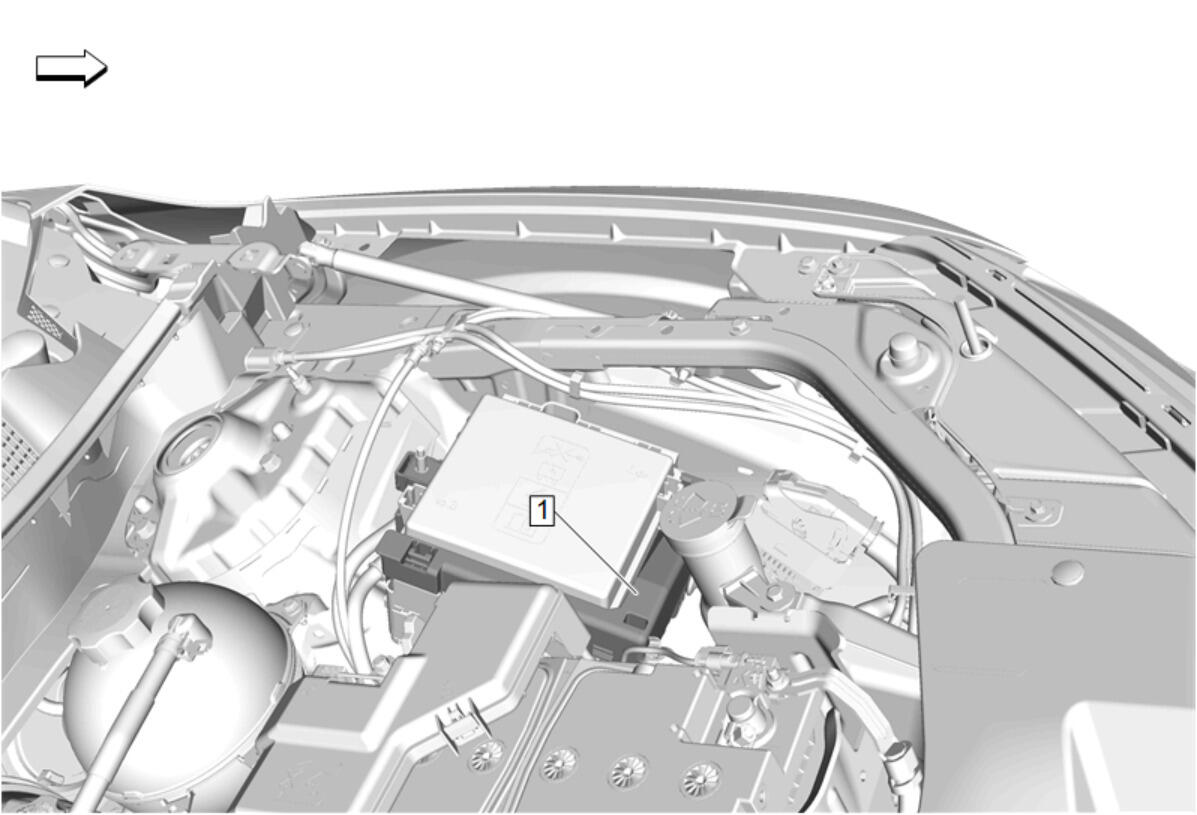

Ensure the lever (1) is in the fully closed position prior to pre-set to the bracket assembly.
Pre-set the engine wiring harness junction block, ensuring that the 4 integral T-features are properly aligned prior to applying downward force.

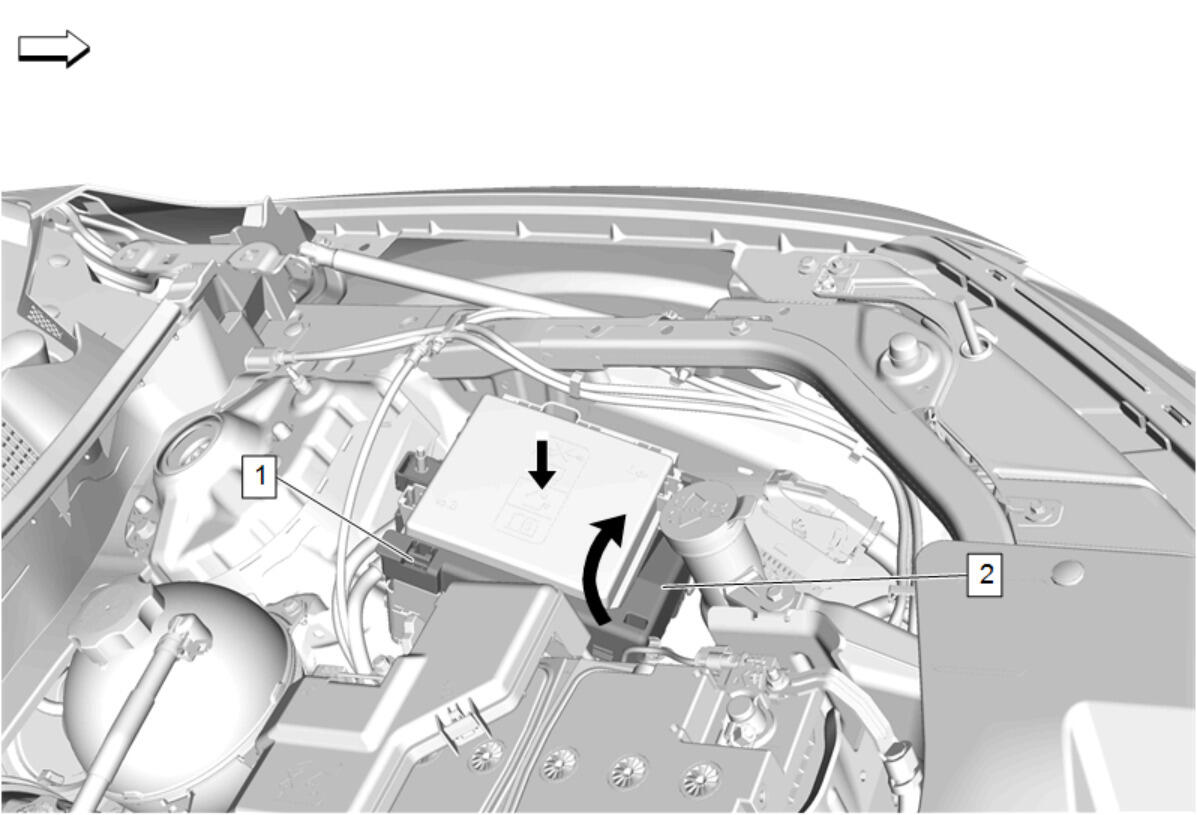

- Release the lever lock (1) and pull the handle (2) upwards.
- Pull lever when it is fully open, while at the same time, push down lightly on the top cover to engage the lever side features.

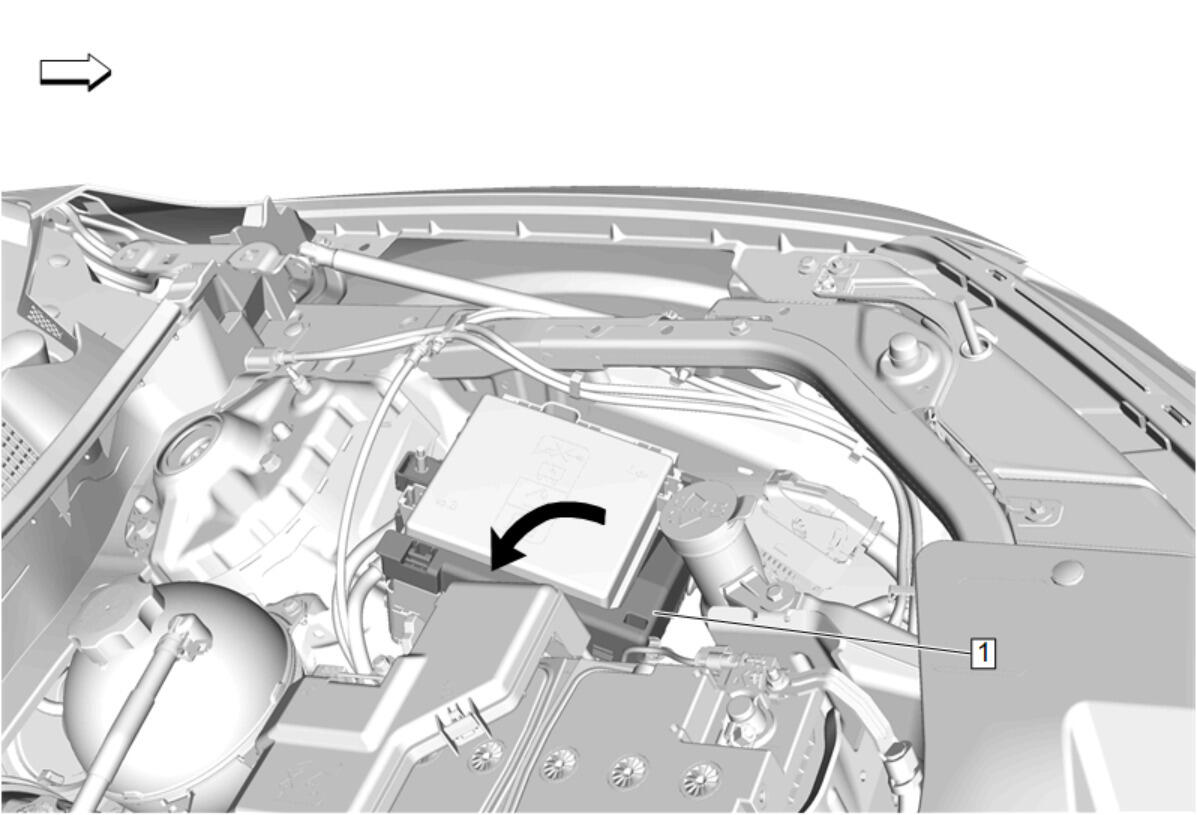

Push the lever (1) closed to secure the block assembly to the bracket assembly and connectors.

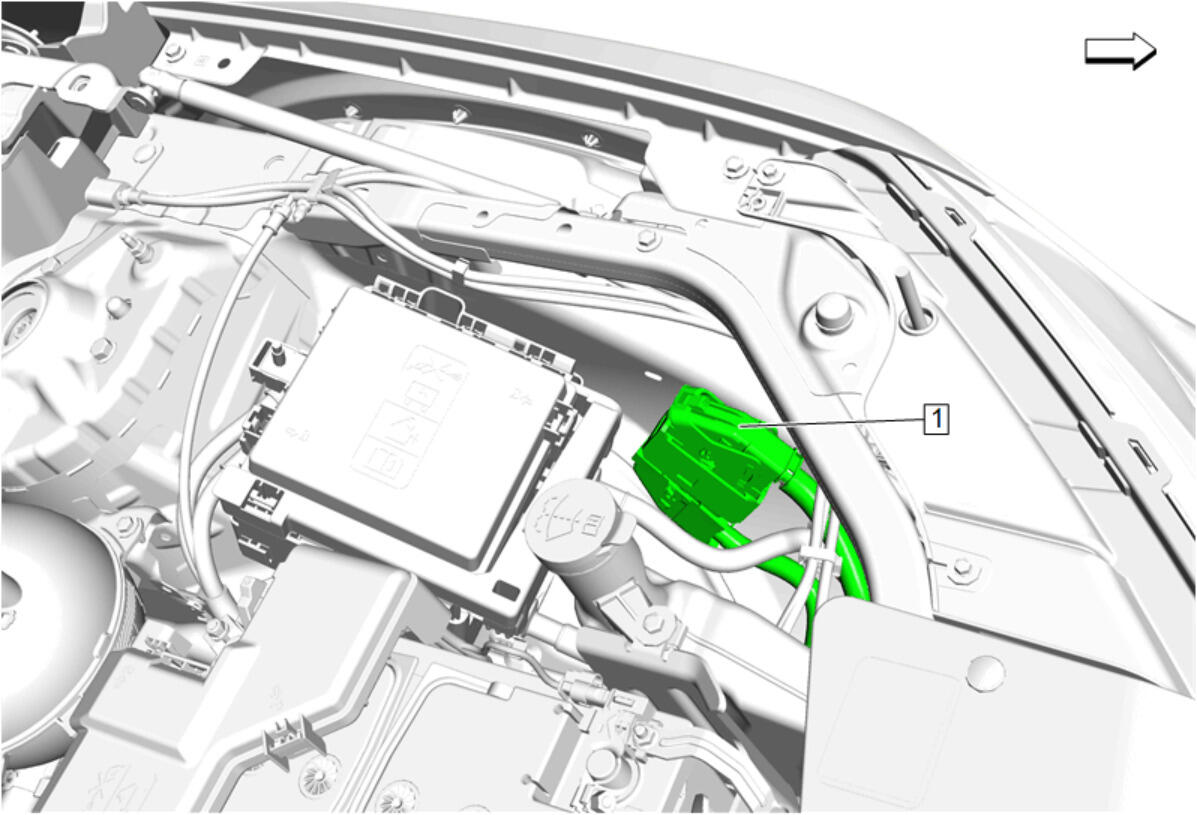

Electrical Connector (1) - Connect
Battery Positive Junction Block Cable (4) - Install
- Lower Terminal Cover (1) - Install
- Battery Positive Junction Block Cable Nut (2) - Install and tighten 16 N.m (12 lb ft)
- Upper Terminal Cover (3) - Install
Install the battery hold down retainer (2). Battery Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
