Removal Procedure

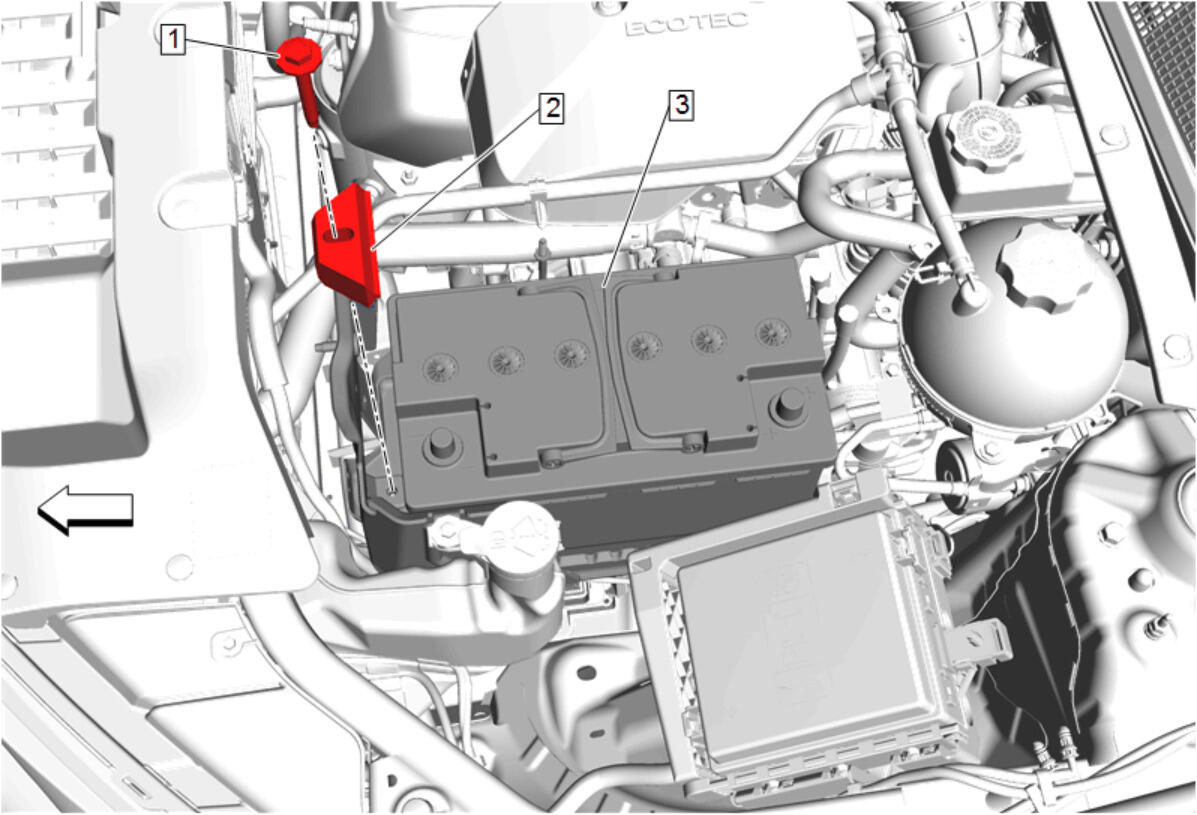

  1. GM5145833Courtesy of GENERAL MOTORS COMPANY

    Battery (3) - Remove - Battery Replacement

  2. Disconnect any harness retainers attached to the battery tray.

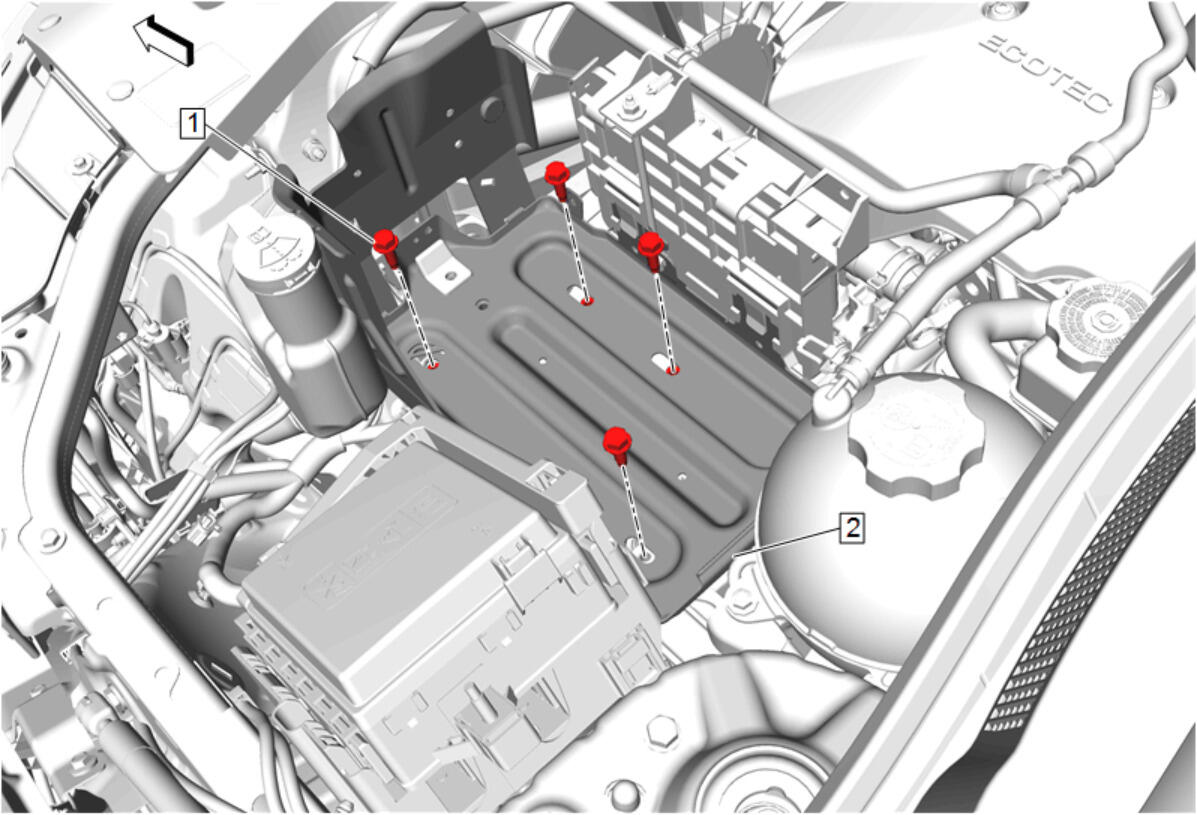

  3. GM5146873Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Guide Bolt (1) @Battery Tray (2) - Remove [4x]

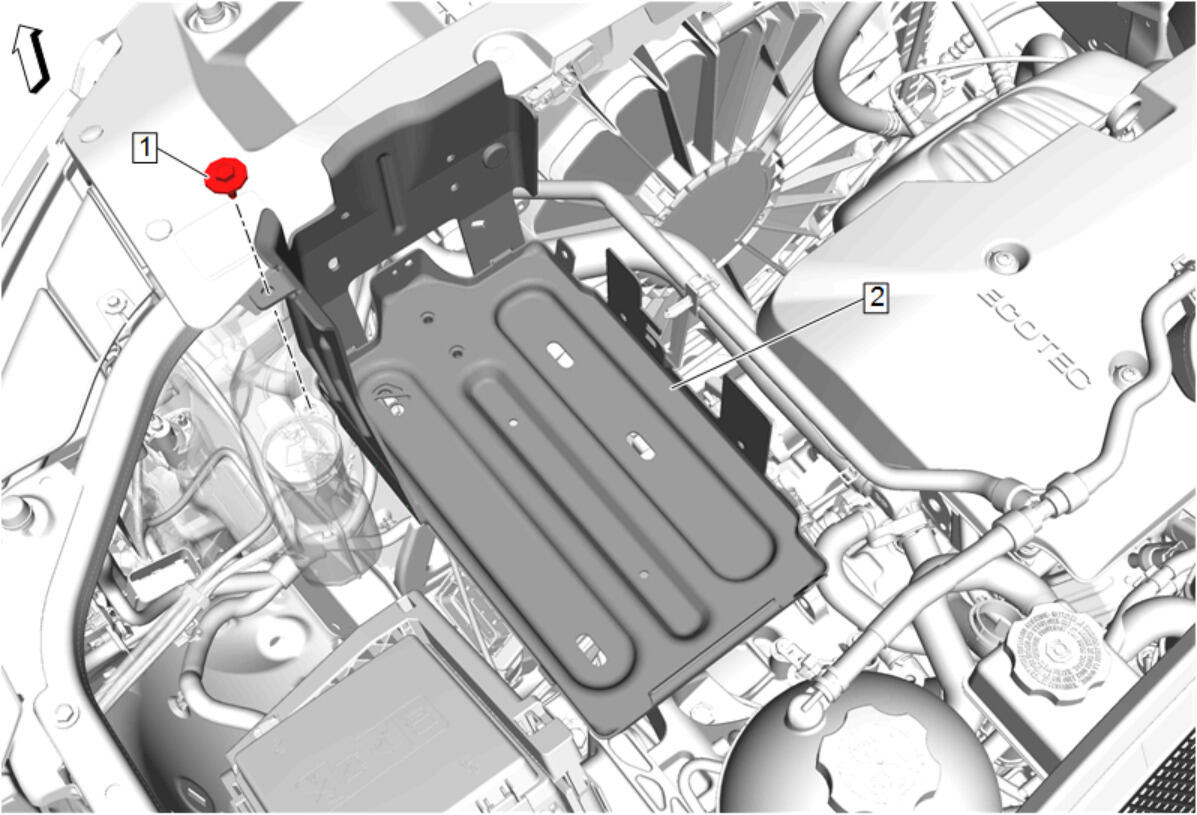

  4. GM5146874Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Solvent Container Bolt (1) - Remove

  5. Battery Tray (2) - Remove
