Installation Procedure

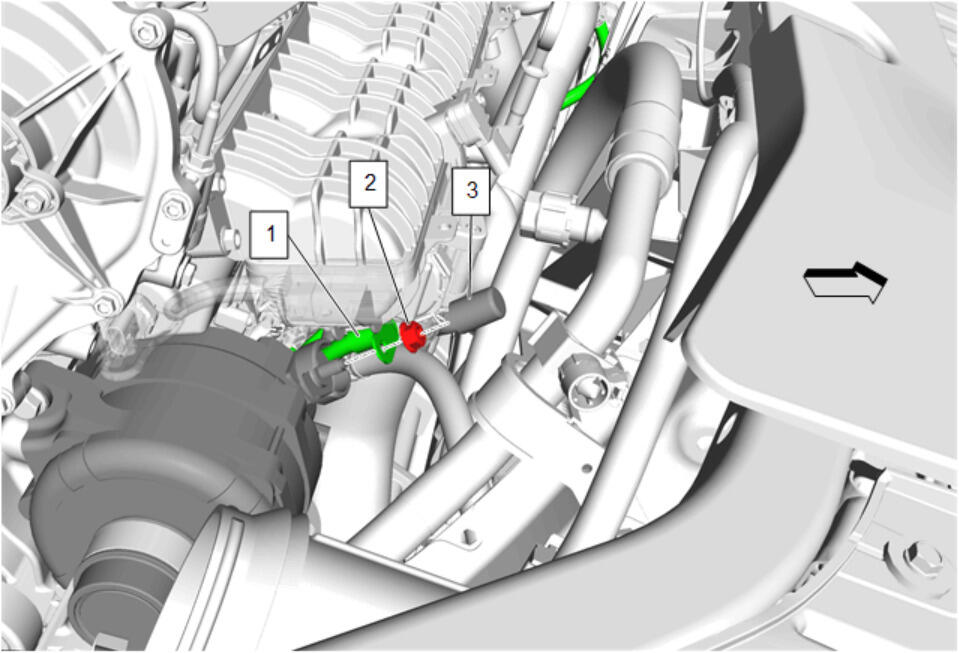

Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (1) - Install
Battery Positive Cable Nut (2) @Generator - Install - Generator Replacement (LSY)
Protective Cap (3) - Install
Raise and support the vehicle. Lifting and Jacking the Vehicle

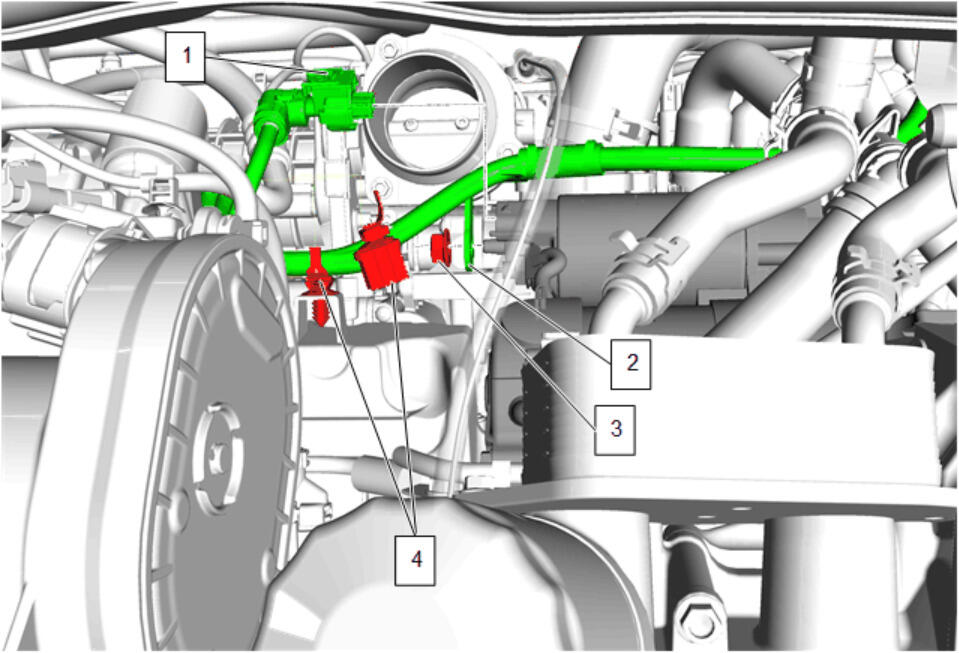

Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (2) - Install
Battery Positive Cable Nut (3) @Starter Solenoid - Install - Starter Replacement (LSY)
Electrical Connector (1) @Starter Solenoid - Connect
Retainer (4) - Engage [2x]
Lower the vehicle.

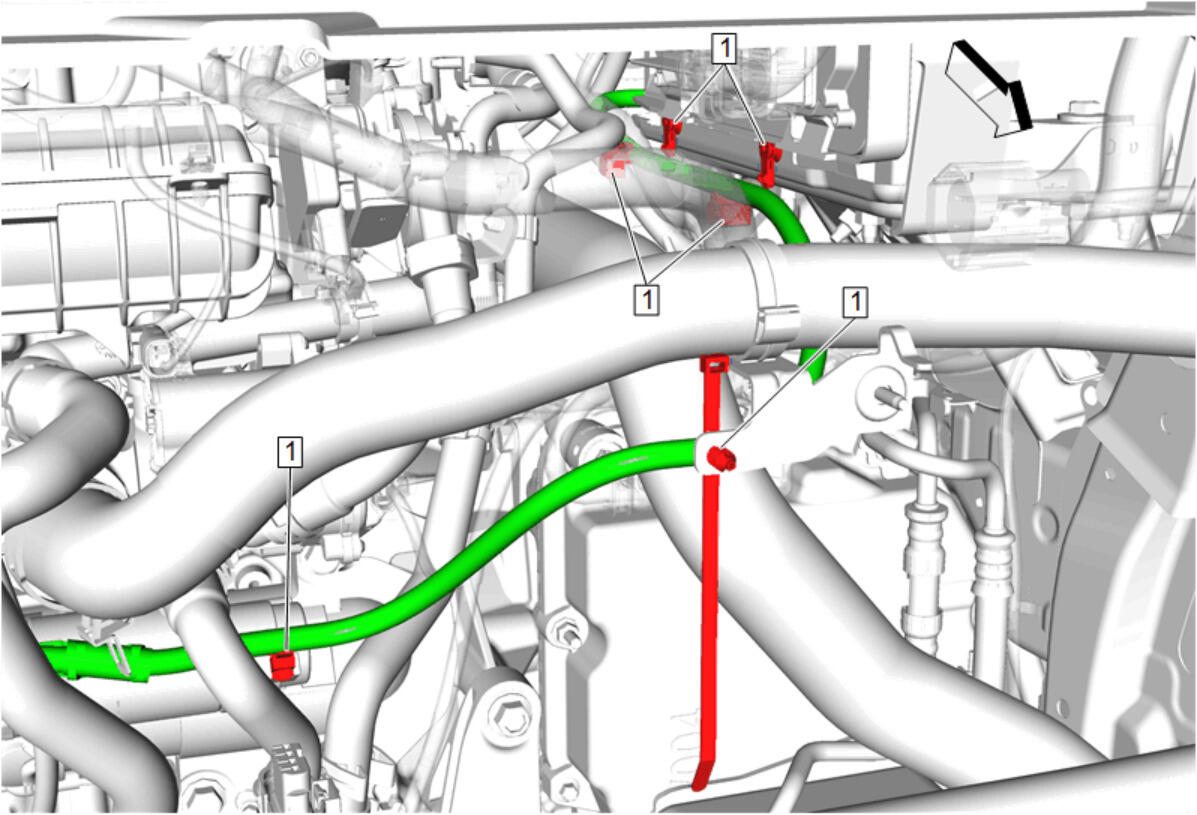

Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Engage [6x]
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Pump (2) - Install - Evaporative Emission Canister Purge Pump Replacement
Courtesy of GENERAL MOTORS COMPANY

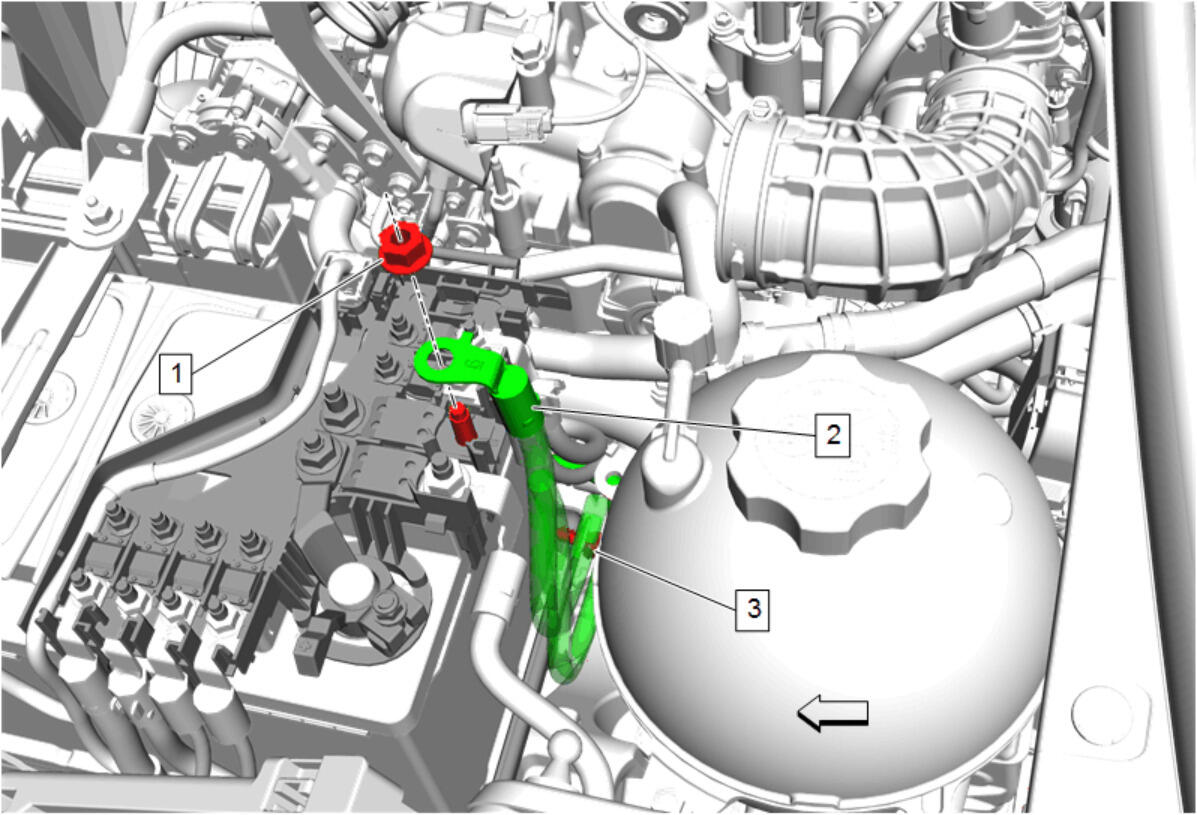

Battery Positive Cable (2) - Install
Battery Positive Cable Nut (1) @Battery Distribution Engine Compartment Fuse Block - Install - Battery Distribution Engine Compartment Fuse Block Replacement (LSY)
Retainer (3) - Engage
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Fuse Block Cover (1) - Install
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
