Installation Procedure

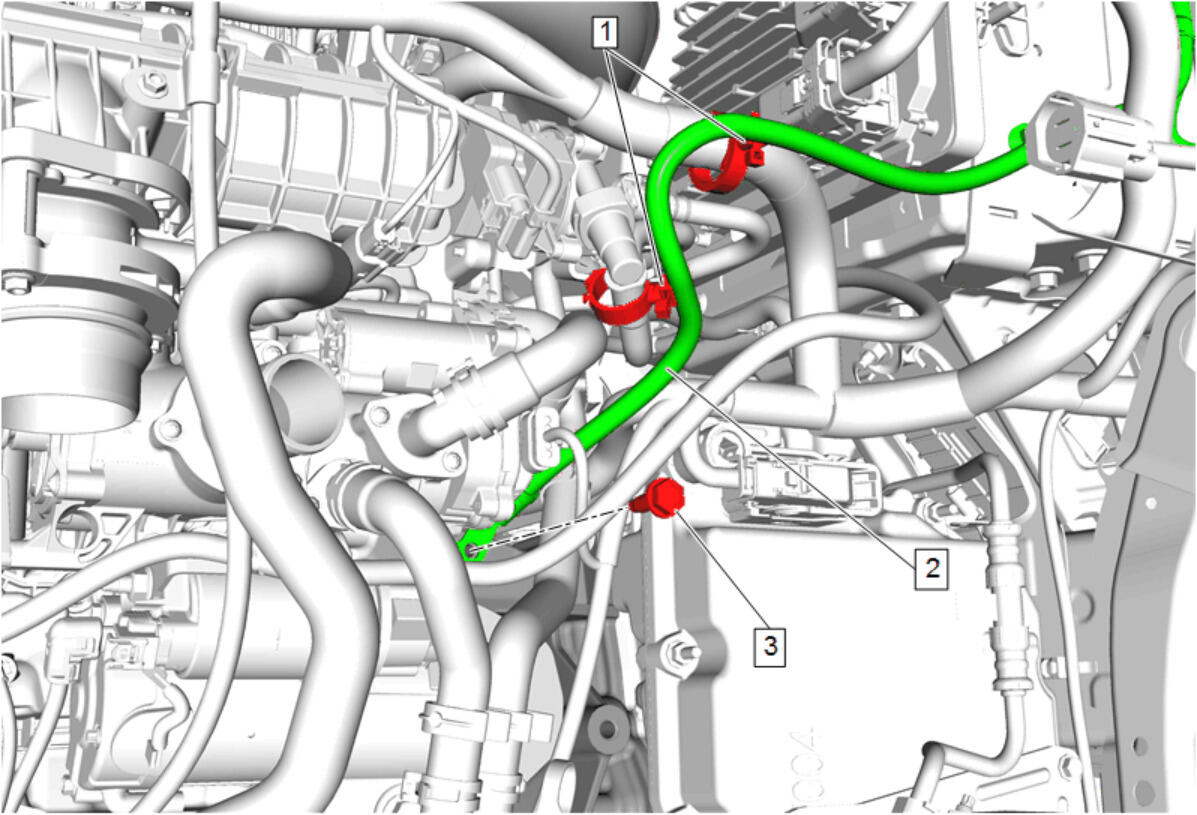

Battery Negative Cable (2) - Install
- Battery Negative Cable Ground Bolt (3) @Transmission - Install and tighten 22 N.m (16 lb ft)
- Retainer Clip (1) - Engage [2x]

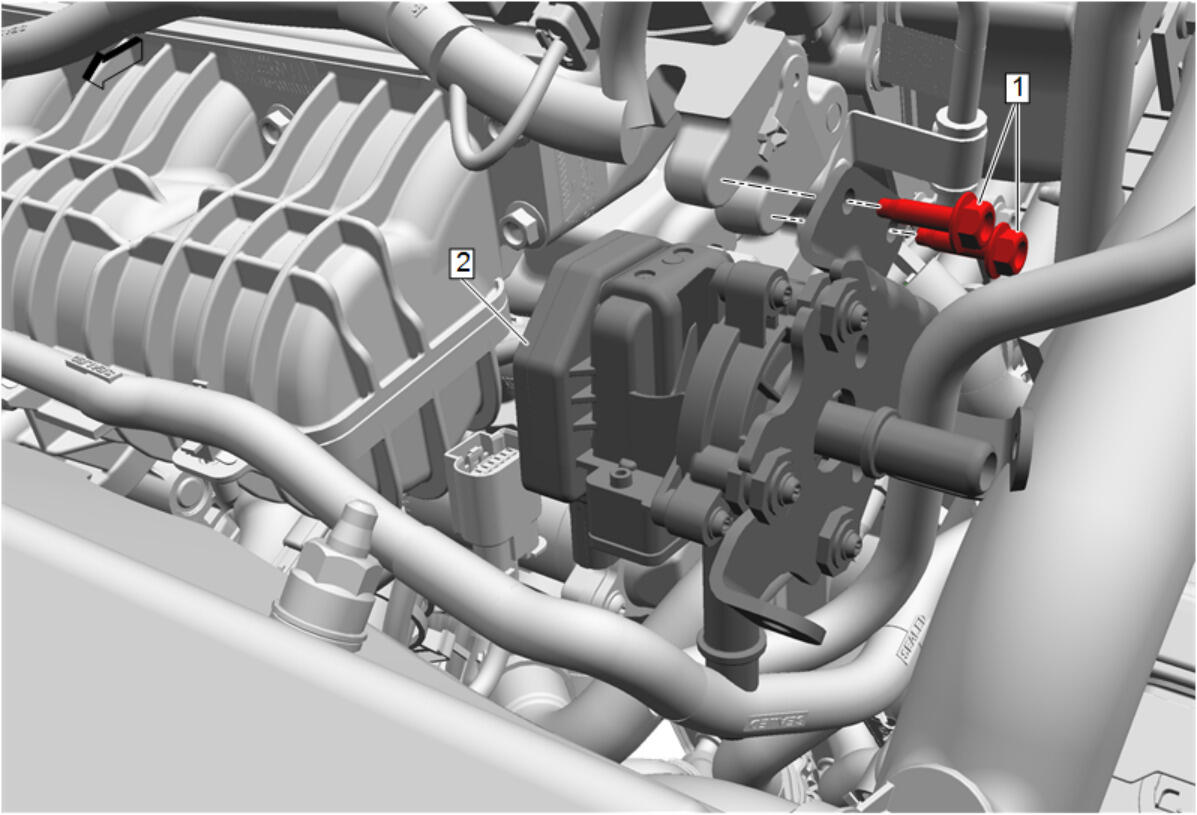

Evaporative Emission Canister Purge Pump (2) - Install - Evaporative Emission Canister Purge Pump Replacement

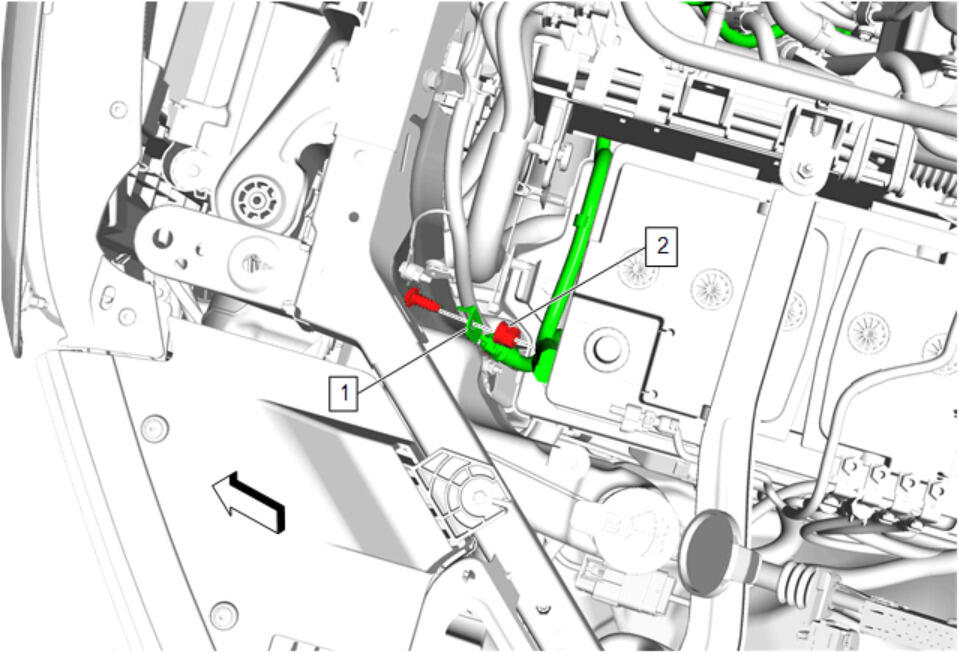

Battery Negative Cable (1) - Install
- Battery Negative Cable Ground Nut (2) @Front End Upper Tie Bar Support - Install and tighten 22 N.m (16 lb ft)

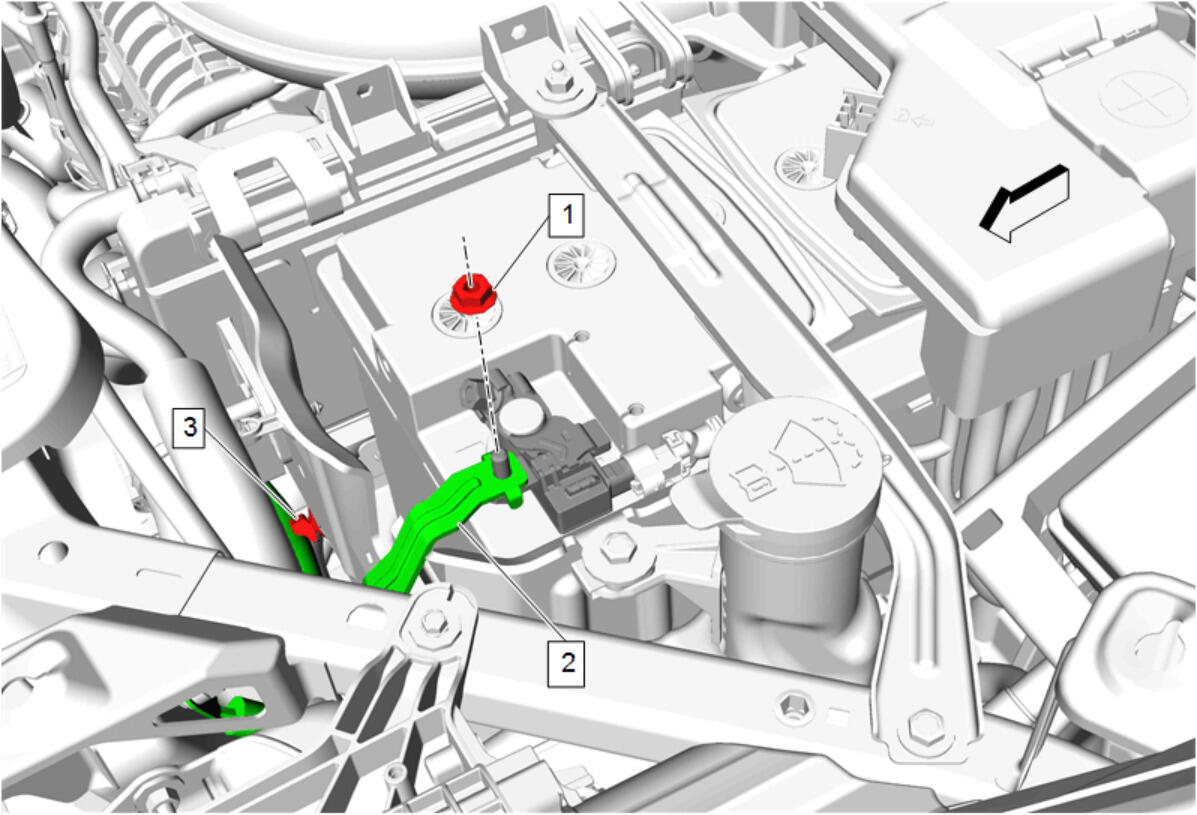

Battery Negative Cable (2) - Install
- Battery Negative Cable Nut (1) @Battery Monitor Module - Install - Battery Monitor Module Replacement (KL9)
- Retainer (3) - Engage
CAUTION:
Refer to Fastener Caution
