Battery Negative Cable Disconnection and Connection

Courtesy of GENERAL MOTORS COMPANY

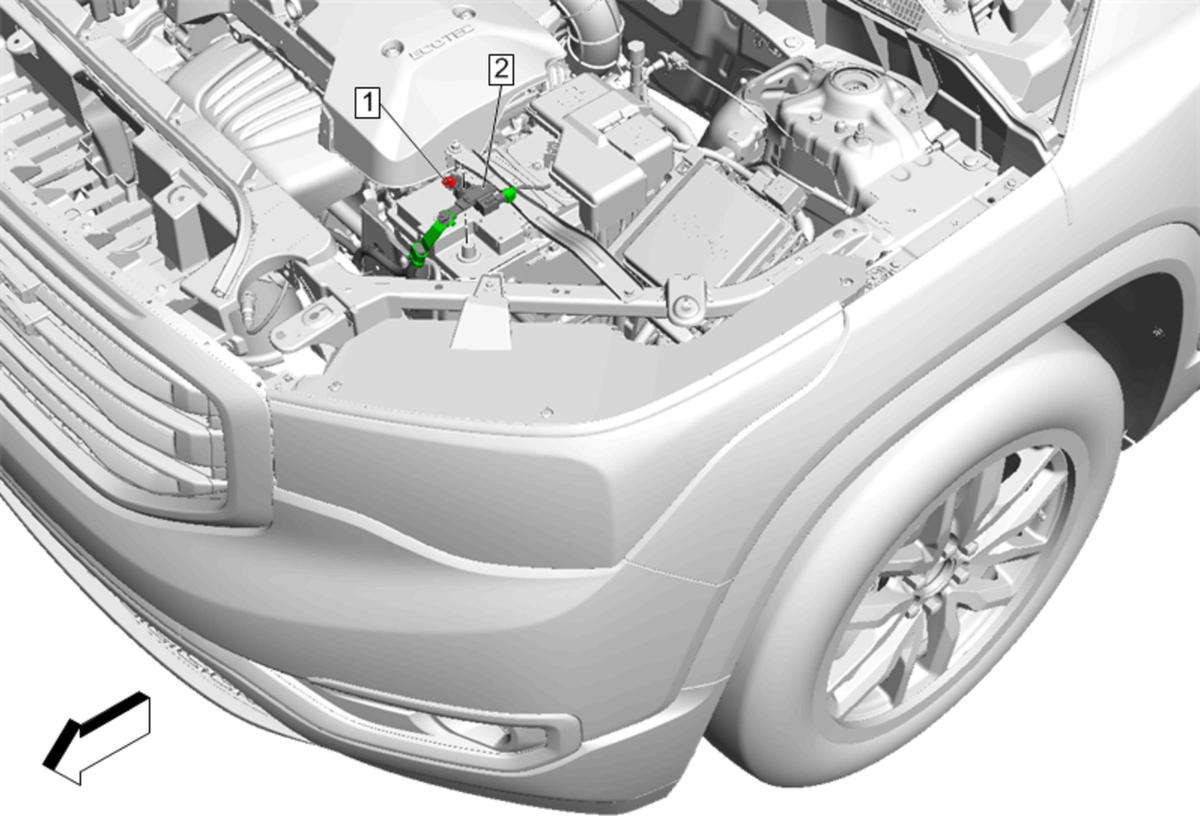

Callout	Component Name
1	Battery Negative Post Clamp Nut WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution Tighten  4.5 N.m (40 lb in)
2	Battery Negative Cable Procedure  Loosen the battery negative post clamp nut (1) and reposition away the battery negative cable. (2)
