Theft Deterrent Module Replacement (Holden)

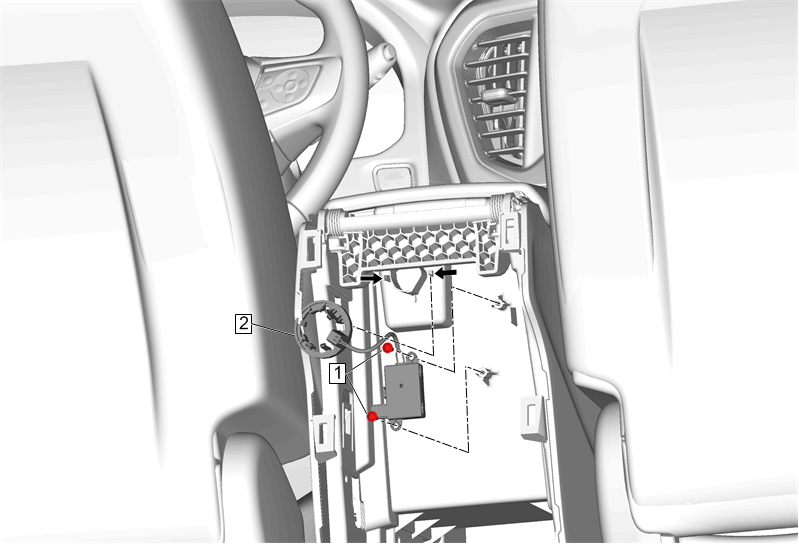

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement (Holden)
1	Front Floor Console Bolt [2x] CAUTION: Fastener Caution Tighten 1 N.m (9 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement (Holden)

Front Floor Console Bolt [2x]

CAUTION:

Fastener Caution

Tighten
1 N.m (9 lb in)

Theft Deterrent Module

Procedure
