Home >> GMC >> 2020 >> Acadia SL >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> SchematicWiring Diagrams >> Defogger Wiring Schematics >> Defogger

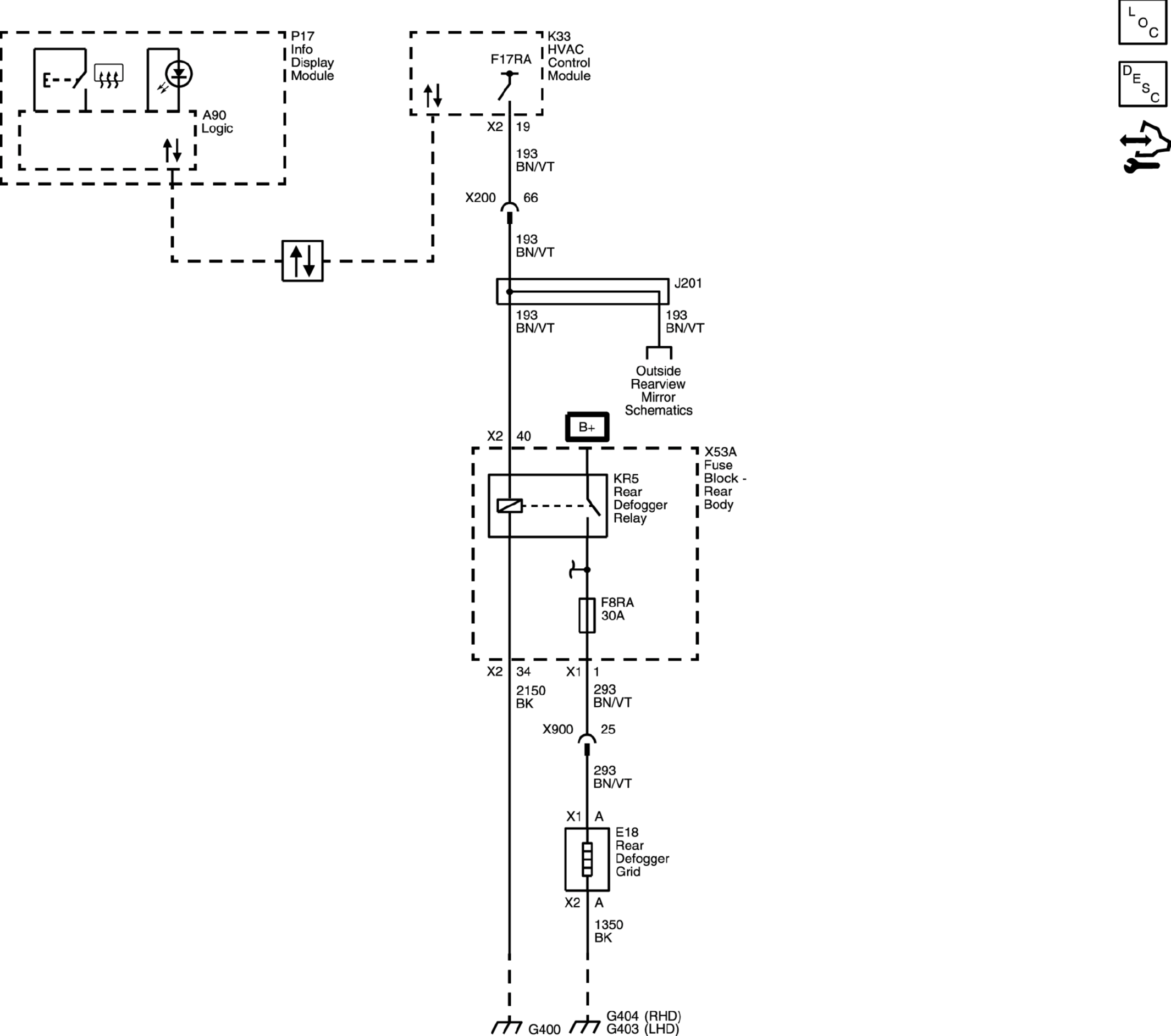

Defogger Wiring Schematics: Defogger

GM5278461

Courtesy of GENERAL MOTORS COMPANY
