Windshield Wiper Blade Replacement

Courtesy of GENERAL MOTORS COMPANY

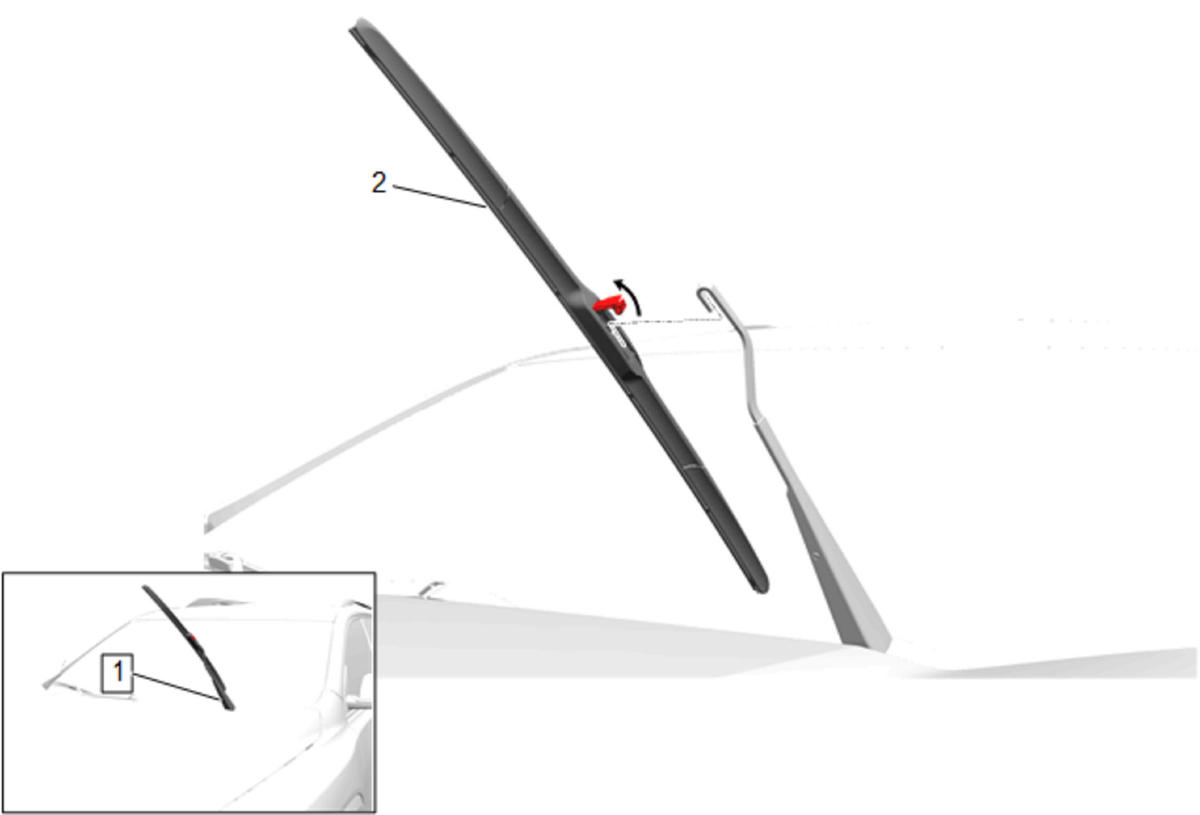

Callout	Component Name
1	Windshield Wiper Arm NOTE: Do not lock wiper arm away from the windshield without a wiper blade installed on the arm. Procedure Lift the windshield wiper arm off the windshield to the service-up position.
2	Windshield Wiper Blade Procedure Using a suitable tool, release the windshield wiper blade retaining clip. While holding the wiper arm, pull gently downward on the wiper blade to remove the wiper blade from the wiper arm.

Callout

Component Name

Windshield Wiper Arm

NOTE:

Do not lock wiper arm away from the windshield without a wiper blade installed on the arm.

Procedure
Lift the windshield wiper arm off the windshield to the service-up position.

Windshield Wiper Blade

Procedure

Using a suitable tool, release the windshield wiper blade retaining clip.
While holding the wiper arm, pull gently downward on the wiper blade to remove the wiper blade from the wiper arm.
