Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

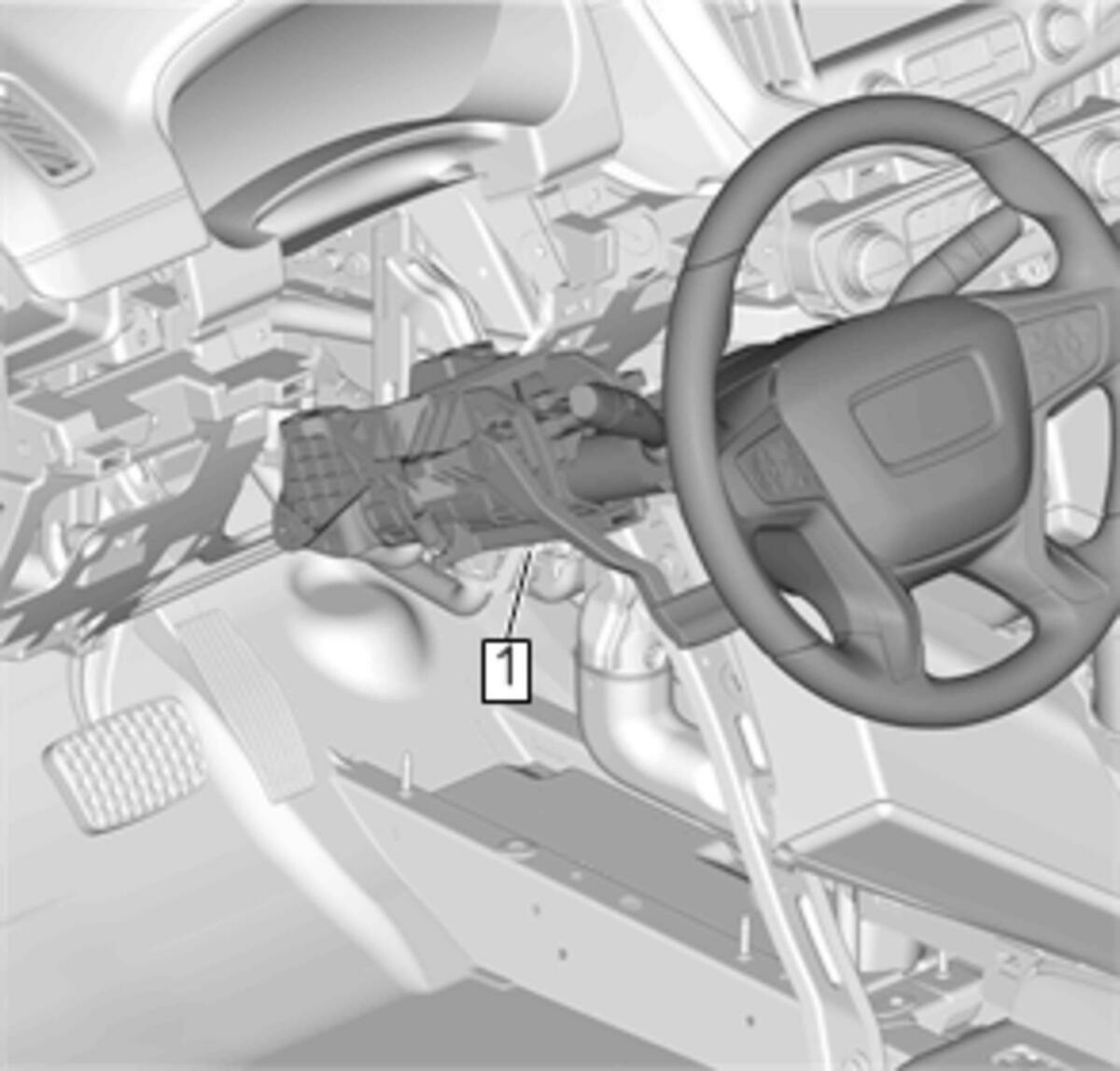

Position the steering column (1) in the vehicle.
Fig 1: Steering Column Nut Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the steering column nuts (1) and tighten in the sequence shown to 22 N.m (16 lb ft).
Connect the steering column electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft(1)@Steering Column - Install - Intermediate Steering Shaft Replacement (Equinox) Intermediate Steering Shaft Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct - Left Side(1) - Install - Floor Front Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster(1) - Install - Instrument Panel Knee Bolster Replacement (Equinox)Instrument Panel Knee Bolster Replacement (Terrain)
Unlock the steering column.
Courtesy of GENERAL MOTORS COMPANY

Steering Column Lower Trim Cover(1) - Install - Steering Column Lower Trim Cover Replacement (Equinox) Steering Column Lower Trim Cover Replacement (Terrain)
Courtesy of GENERAL MOTORS COMPANY

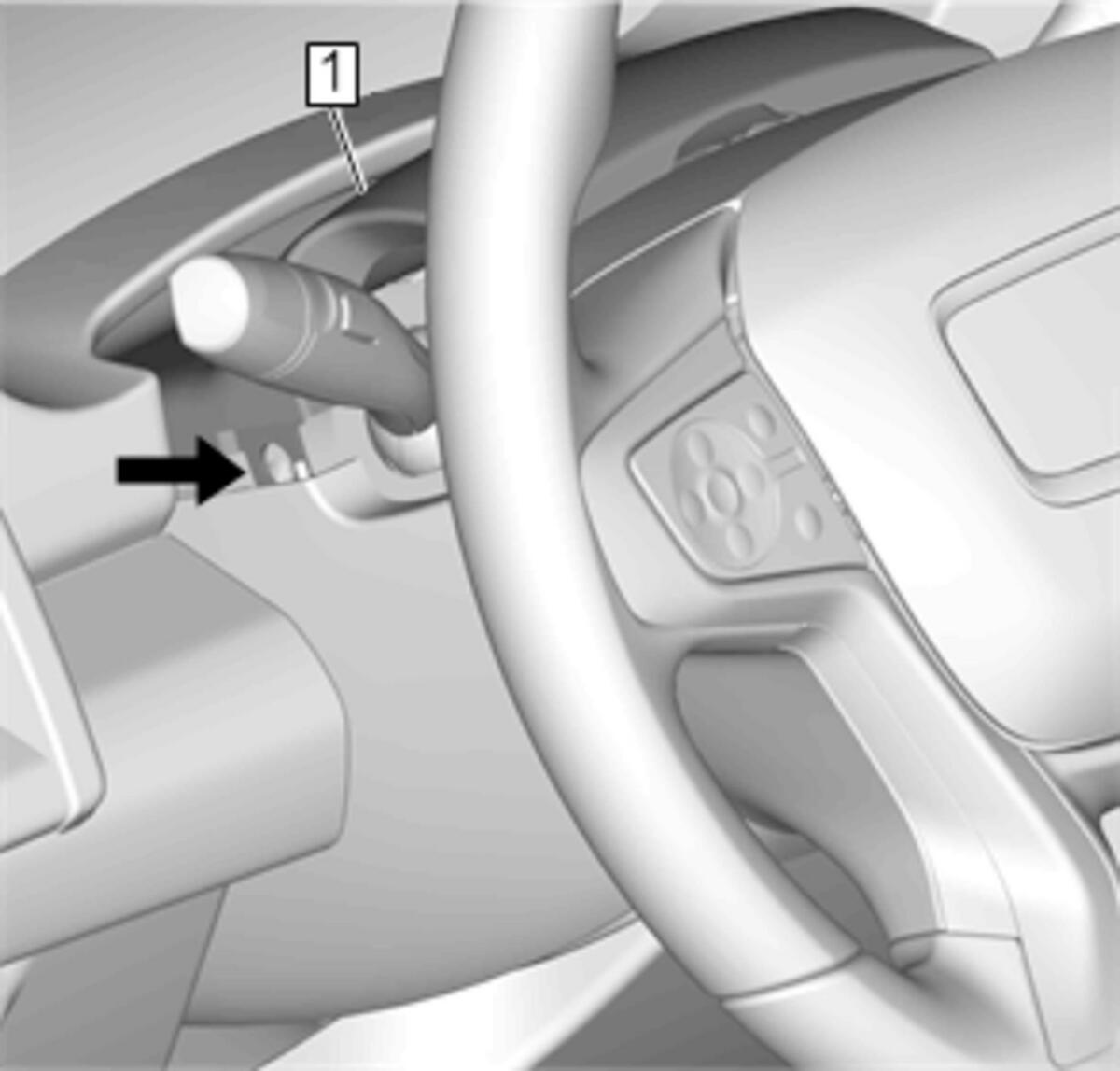

Secure the steering column upper trim (1) to the steering column lower trim cover.
Center the steering angle sensor. Steering Wheel Angle Sensor Centering
