Fuel Pump Power Control Module Replacement (AWD)
WARNING: This page is about a different variant/trim than selected.

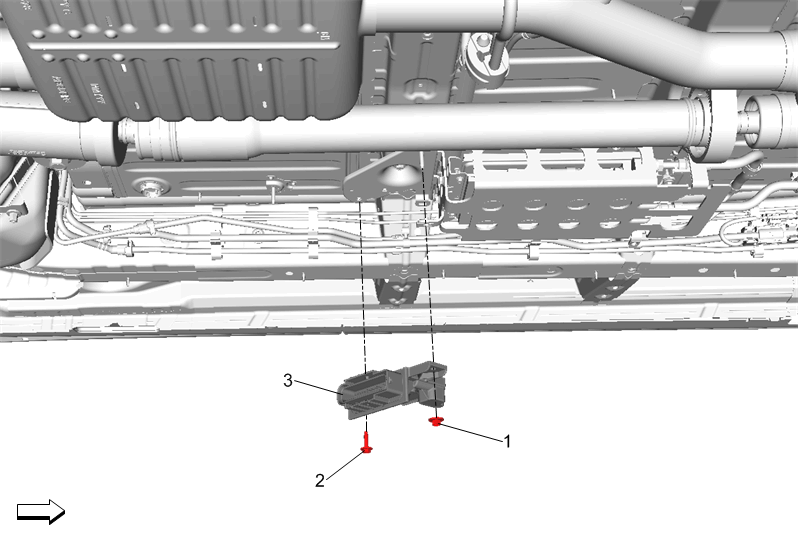

| Callout | Component Name |
|---|---|
| Preliminary Procedure Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel) |
|
| 1 | Fuel Pump Power Control Module Nut
CAUTION:
Refer to Fastener Caution . Tighten 9N.m (80 lb in) |
| 2 | Fuel Pump Power Control Module Bolt Tighten 9N.m (80 lb in) |
| 3 | Fuel Pump Power Control Module Procedure
|
