Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

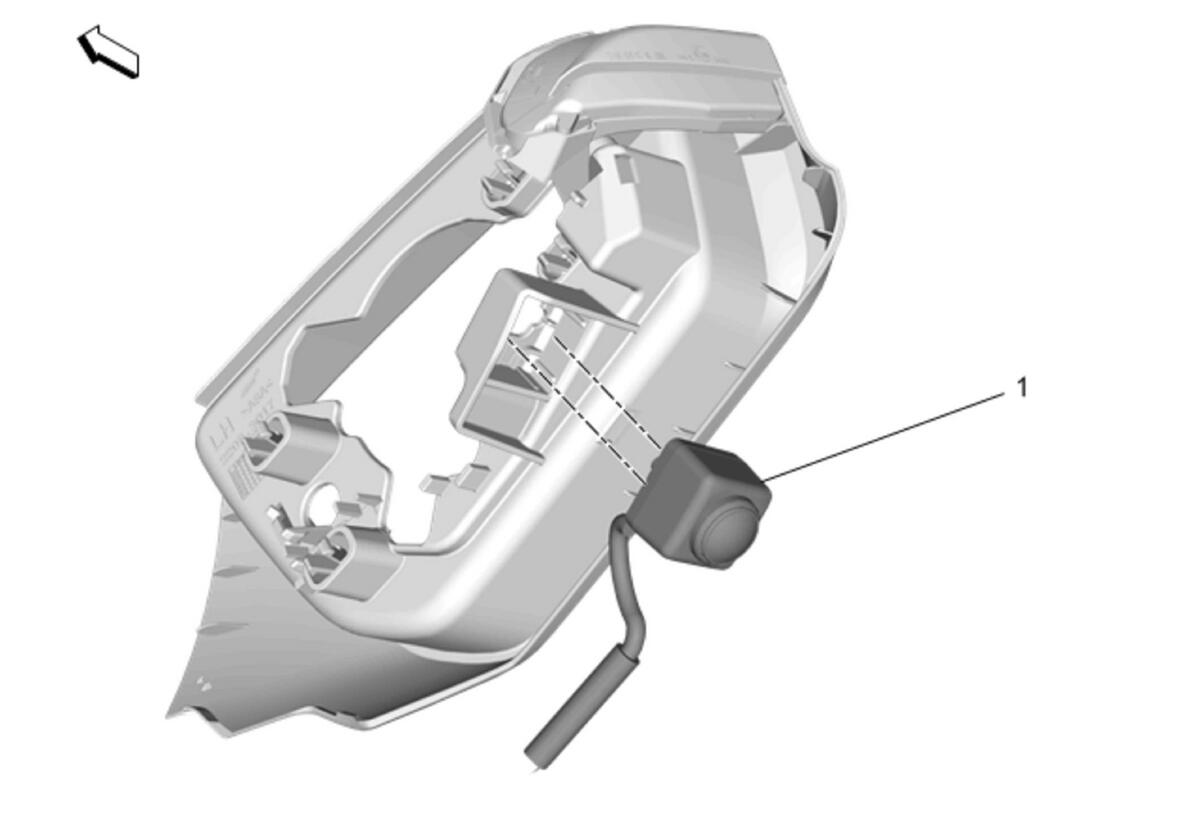

Fig 1: Side View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Route the side view driver information camera (1) through the opening in the housing bezel.
Connect the electrical connector.

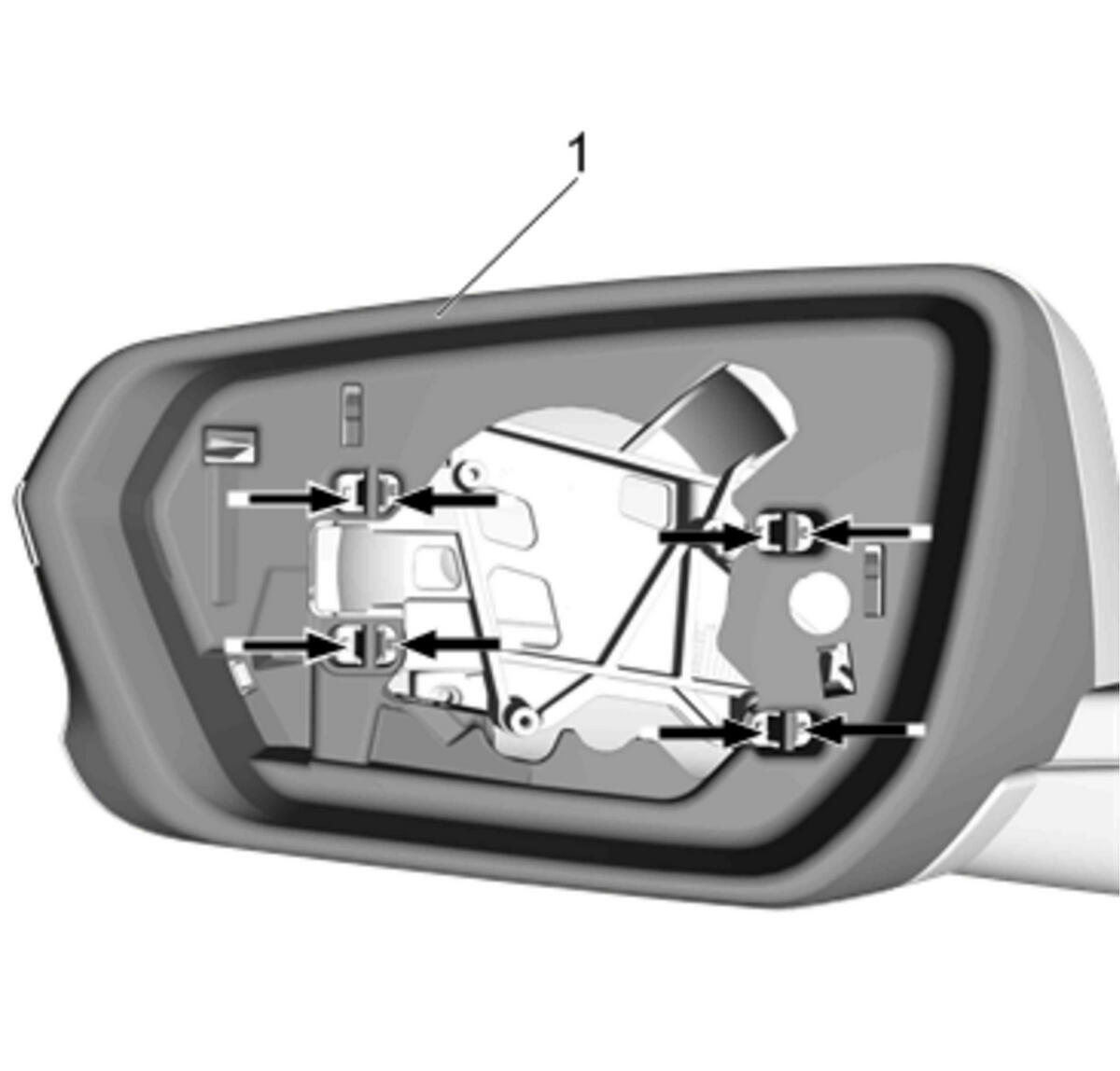

Fig 2: Outside Rearview Mirror Housing Bezel

Courtesy of GENERAL MOTORS COMPANY

Push the outside rearview mirror housing bezel (1) into the retaining clips until seated.

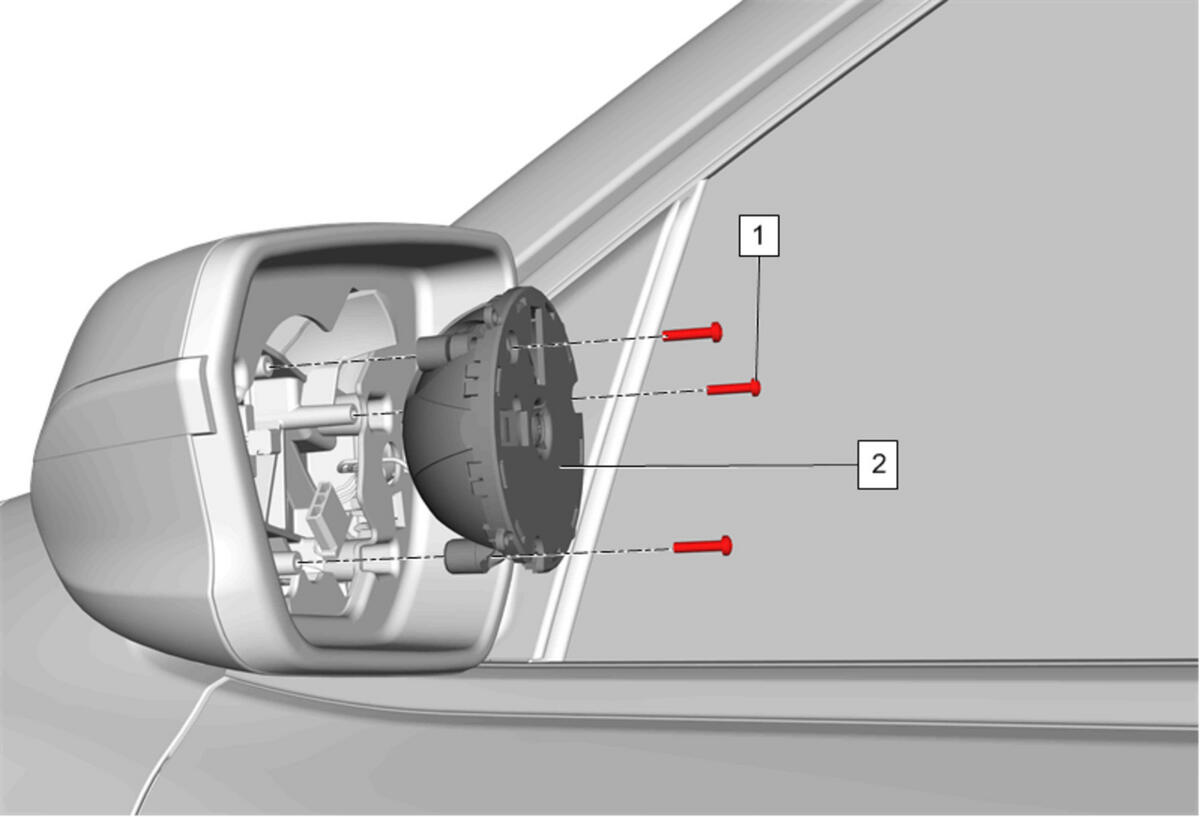

Fig 3: Outside Rearview Mirror Inner Actuator

Courtesy of GENERAL MOTORS COMPANY

Install Outside Rearview Mirror Inner Actuator (2). Outside Rearview Mirror Inner Actuator Replacement
Connect the electrical connectors.

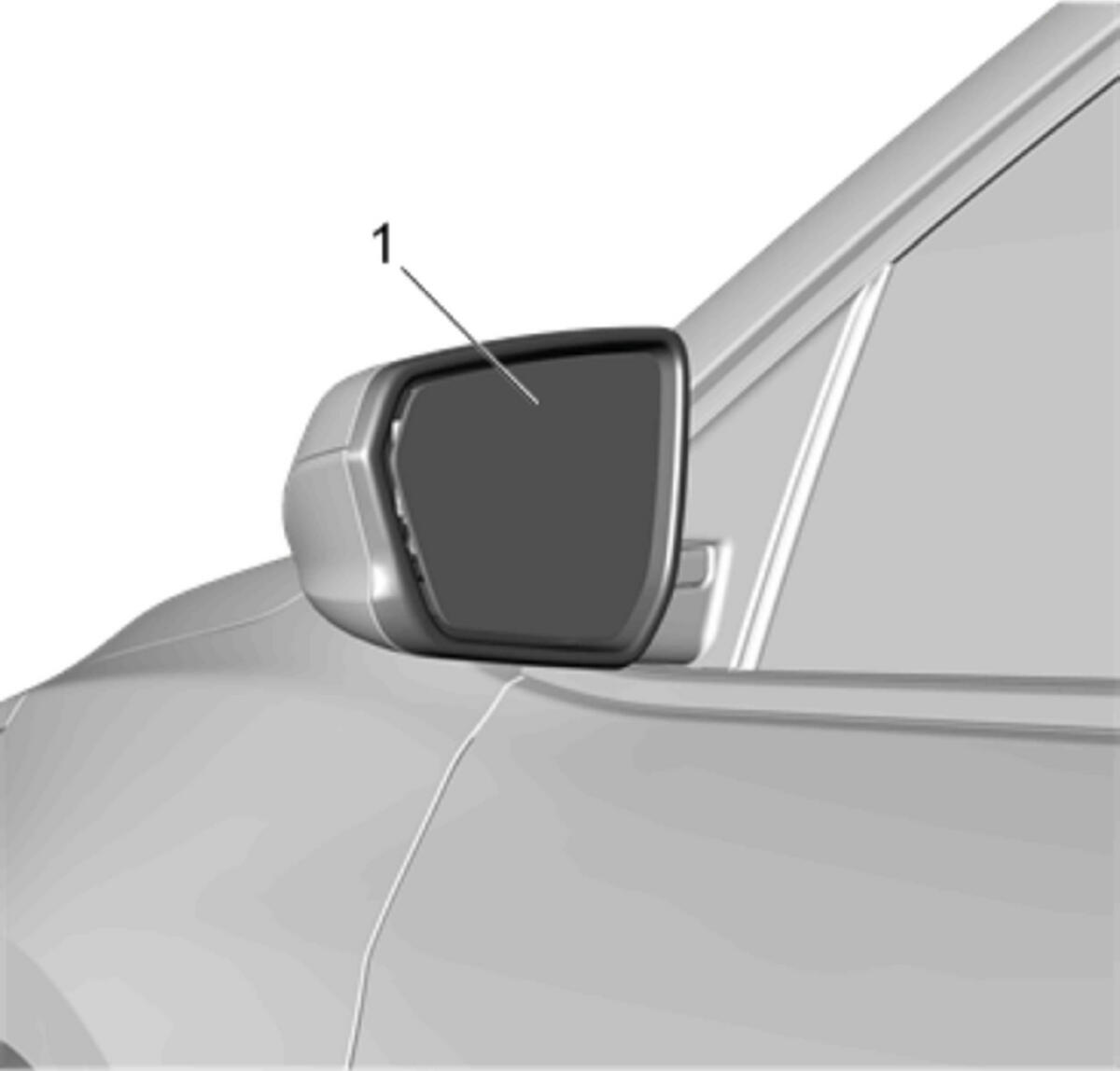

Fig 4: Outside Rearview Mirror Glass

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Inspect the outside rearview mirror for proper operation.

Install Outside Rearview Mirror Glass (1)Outside Rearview Mirror Glass Replacement
