Installation Procedure
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

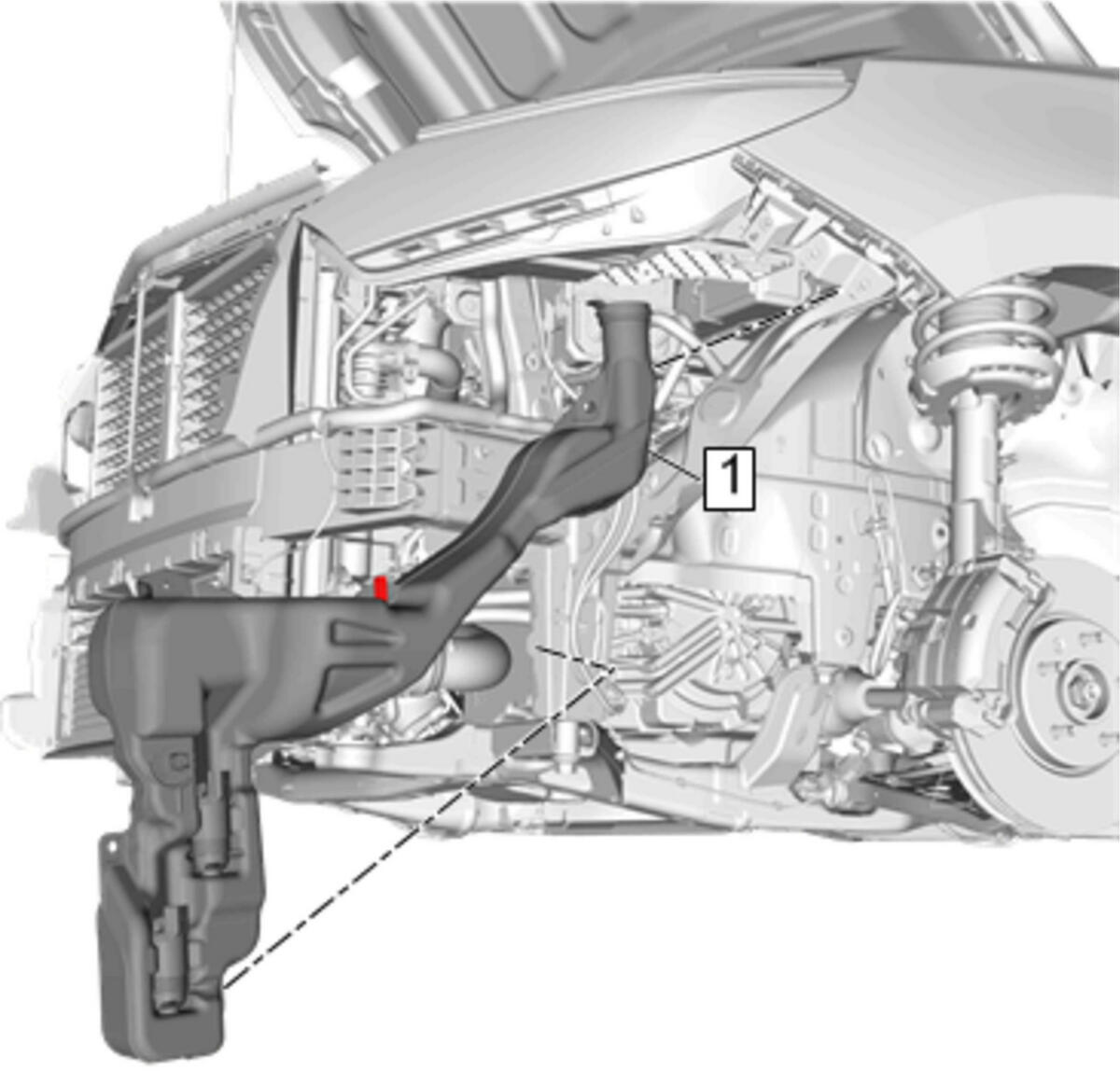

- Install Windshield Washer Solvent Container (1)

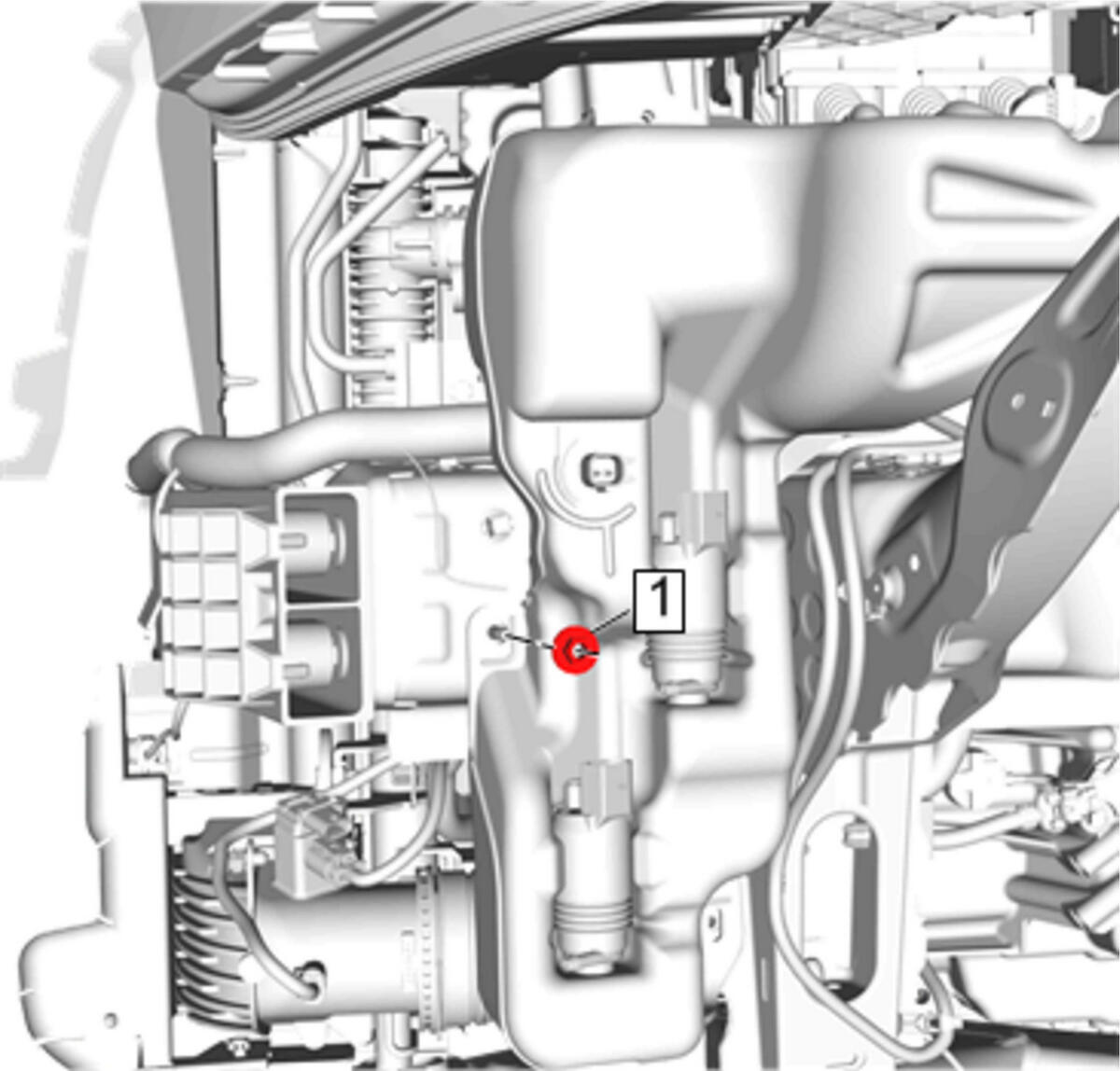

- Install and tighten Windshield Washer Solvent Container Nut (1) to 9 N.m (80 lb in)

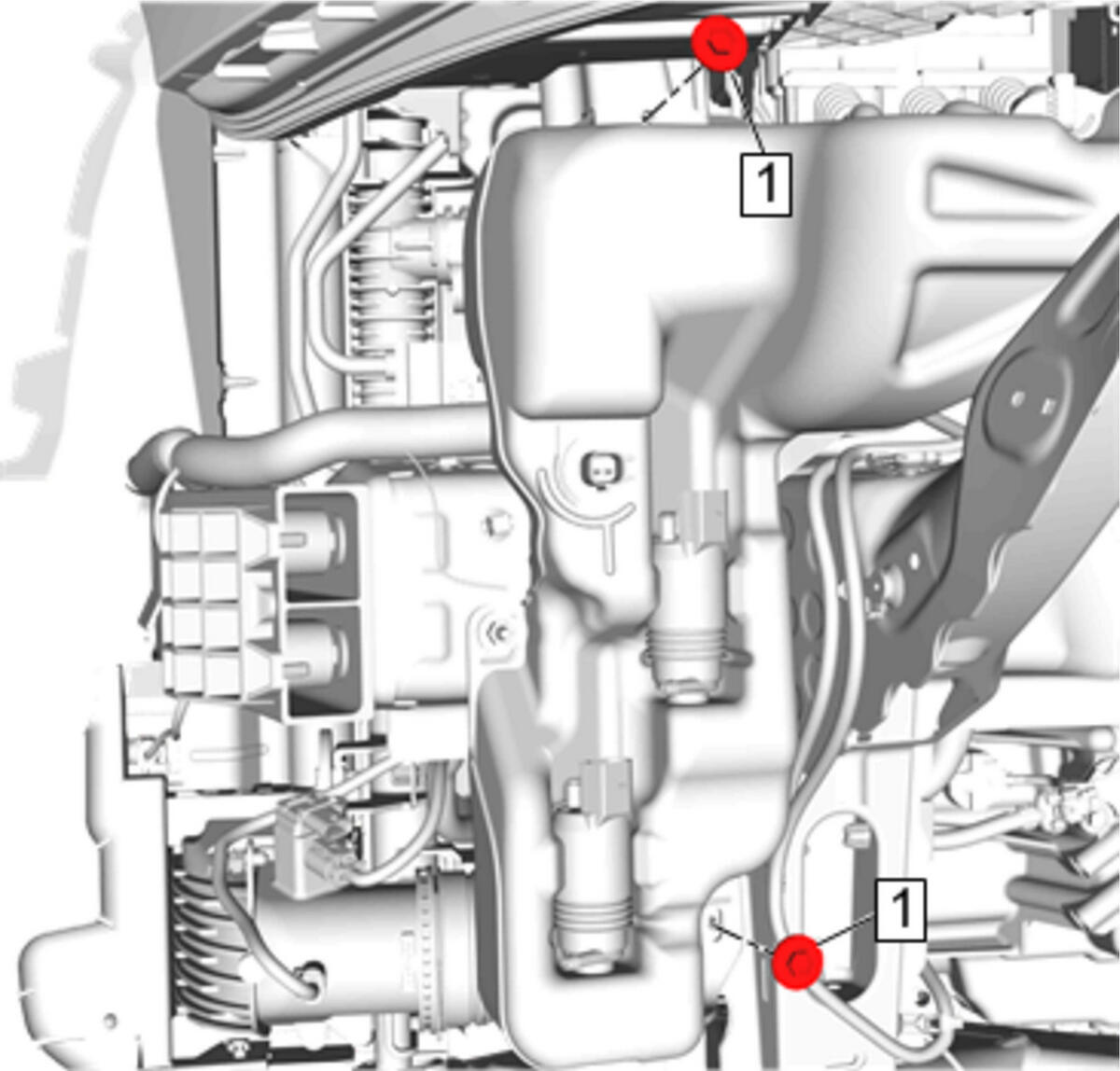

- Install and tighten Windshield Washer Solvent Container Bolts (1) (Qty: 2) to 9 N.m (80 lb in)

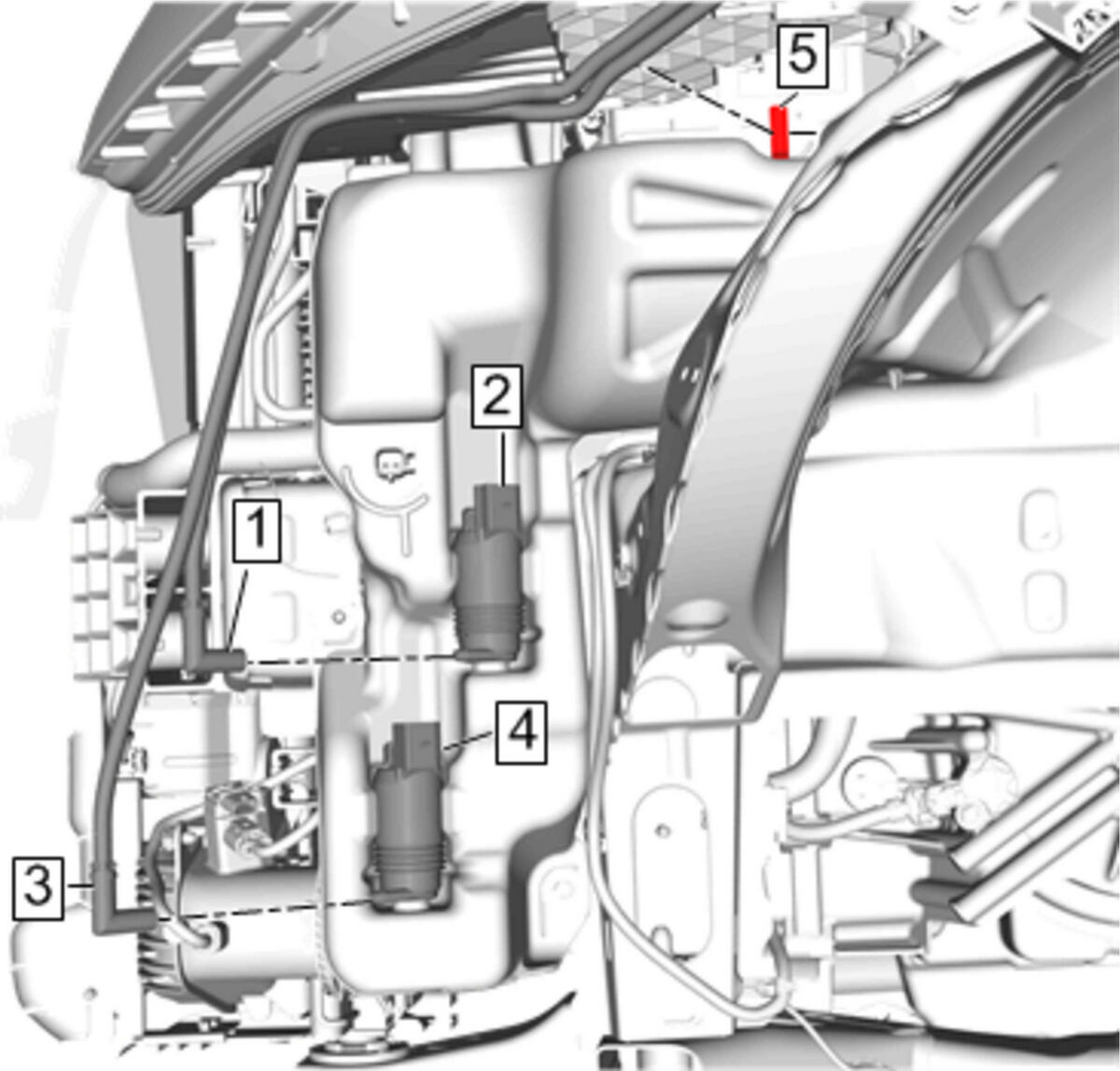

- Install both windshield washer solvent container hoses (1, 3) to the windshield washer solvent container retainer. (5)
- Install Windshield Washer Pump Hose - Front (3) @ Windshield Washer Pump (4)
- Install Windshield Washer Pump Hose - Rear (1) @ Rear Window Washer Pump (2)
- Connect the electrical connectors.

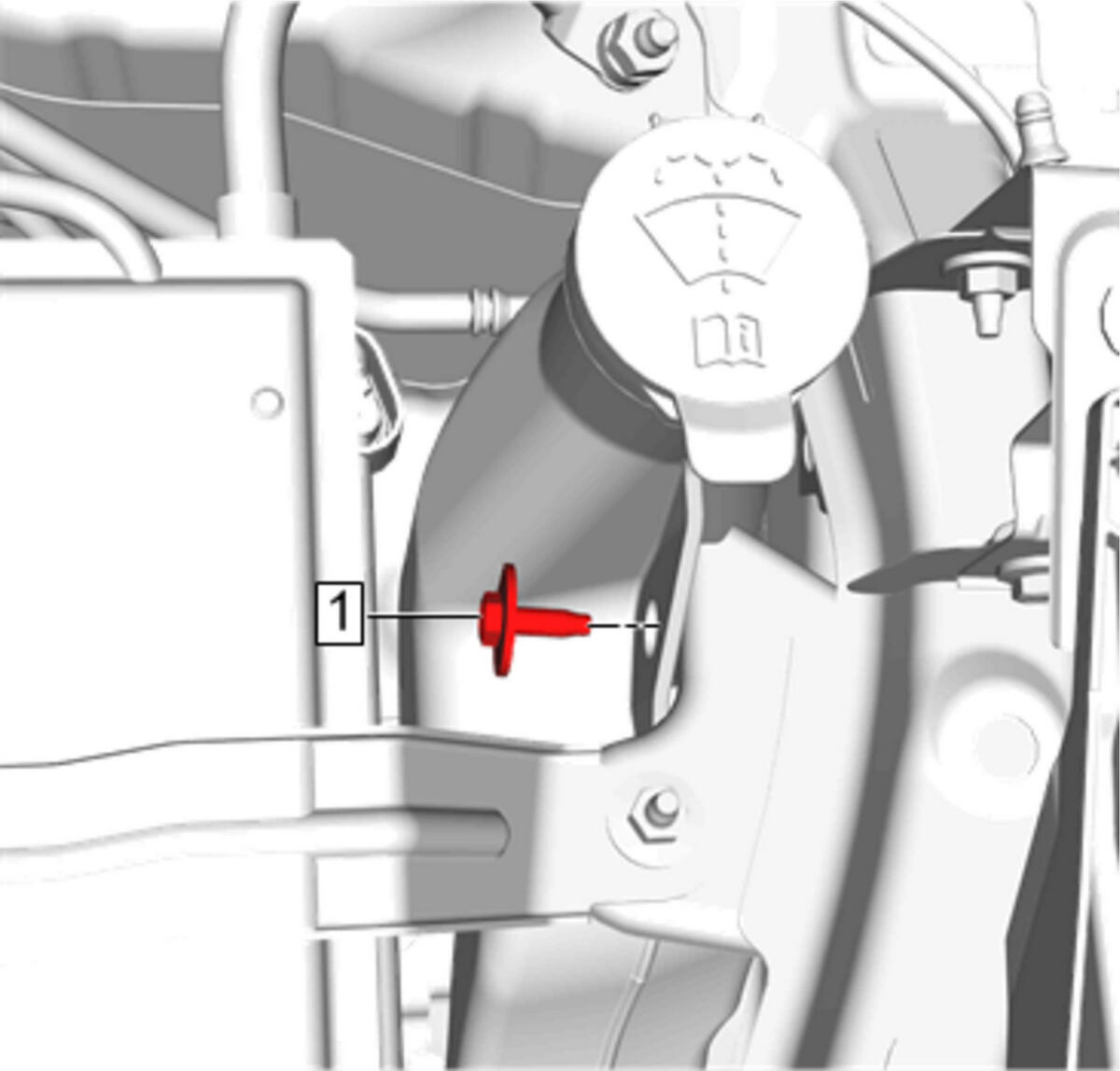

- Install and tighten Windshield Washer Solvent Container Bolt (1) to 9 N.m (80 lb in)
- Remove the clean suitable drain pan from under the windshield washer solvent container.
- Install Headlamp-Left Side. Refer to Headlamp Replacement (GMC)
- Install Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (Terrain)
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle
- Fill the windshield washer system to the proper level.
CAUTION:
Refer to Fastener Caution .
