Rear Window Wiper Cover Replacement

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

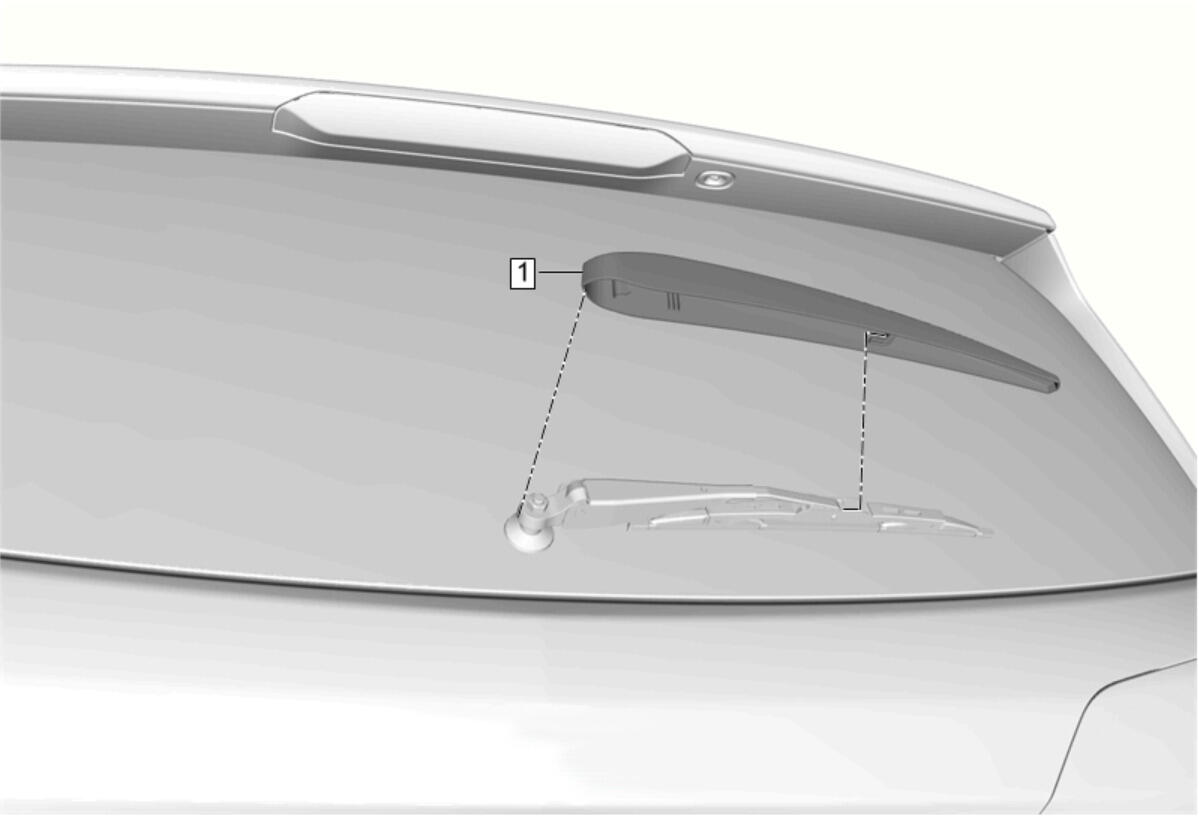

Fig 1: Rear Window Wiper Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Window Wiper Cover Procedure Slide the cover to the left to disengage the hook on the underside of cover. Line up the wiper arm cover with the hook on the underside of the cover at the hole in the wiper blade. Insert the hook and slide the cover to the right to lock in place. Push the base of the wiper arm cover down to secure it in place.

Callout

Component Name

Rear Window Wiper Cover

Procedure

Slide the cover to the left to disengage the hook on the underside of cover.
Line up the wiper arm cover with the hook on the underside of the cover at the hole in the wiper blade.
Insert the hook and slide the cover to the right to lock in place.
Push the base of the wiper arm cover down to secure it in place.
