USB Receptacle Replacement

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

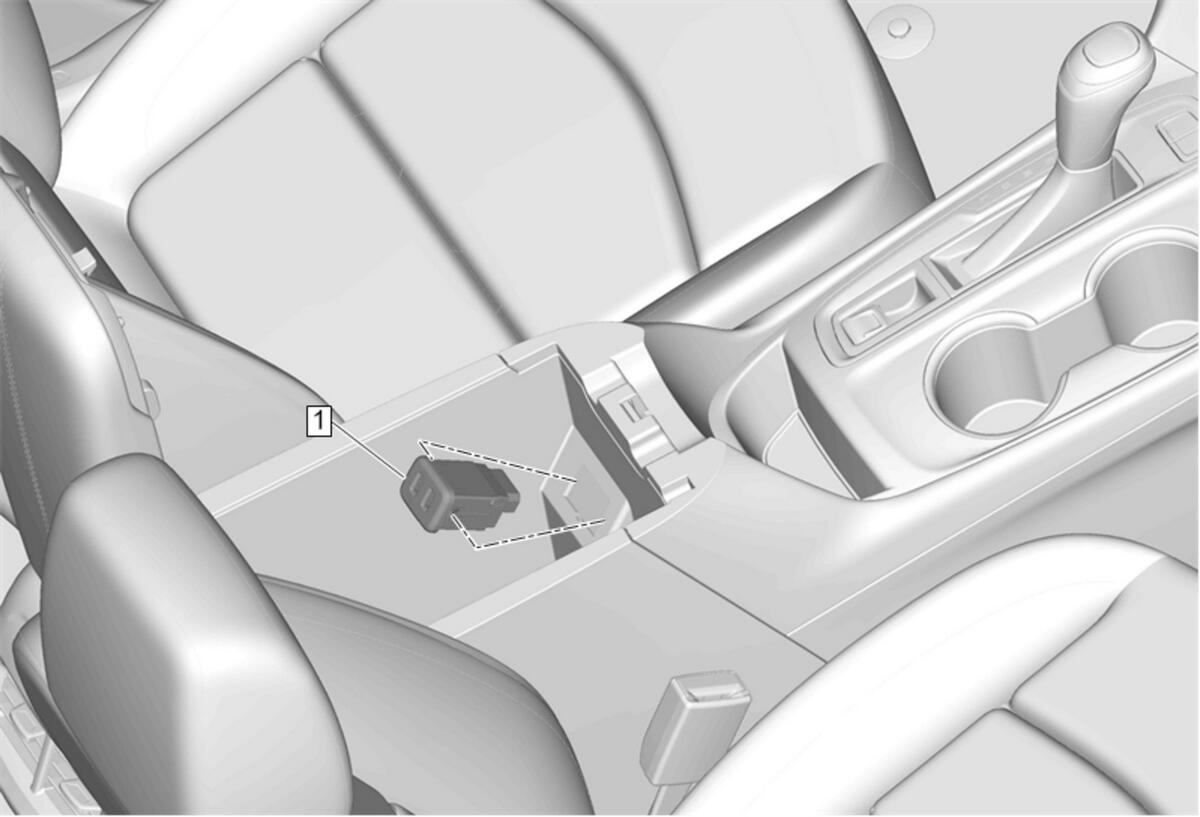

Fig 1: USB Receptacle
GM4587908Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 USB Receptacle

Procedure

  1. Depress the tabs on the receptacle to remove.
  2. Use a suitable tool.
  3. Disconnect the electrical connectors.
