Radio Replacement (IO5, IO6, IOB, IOR)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

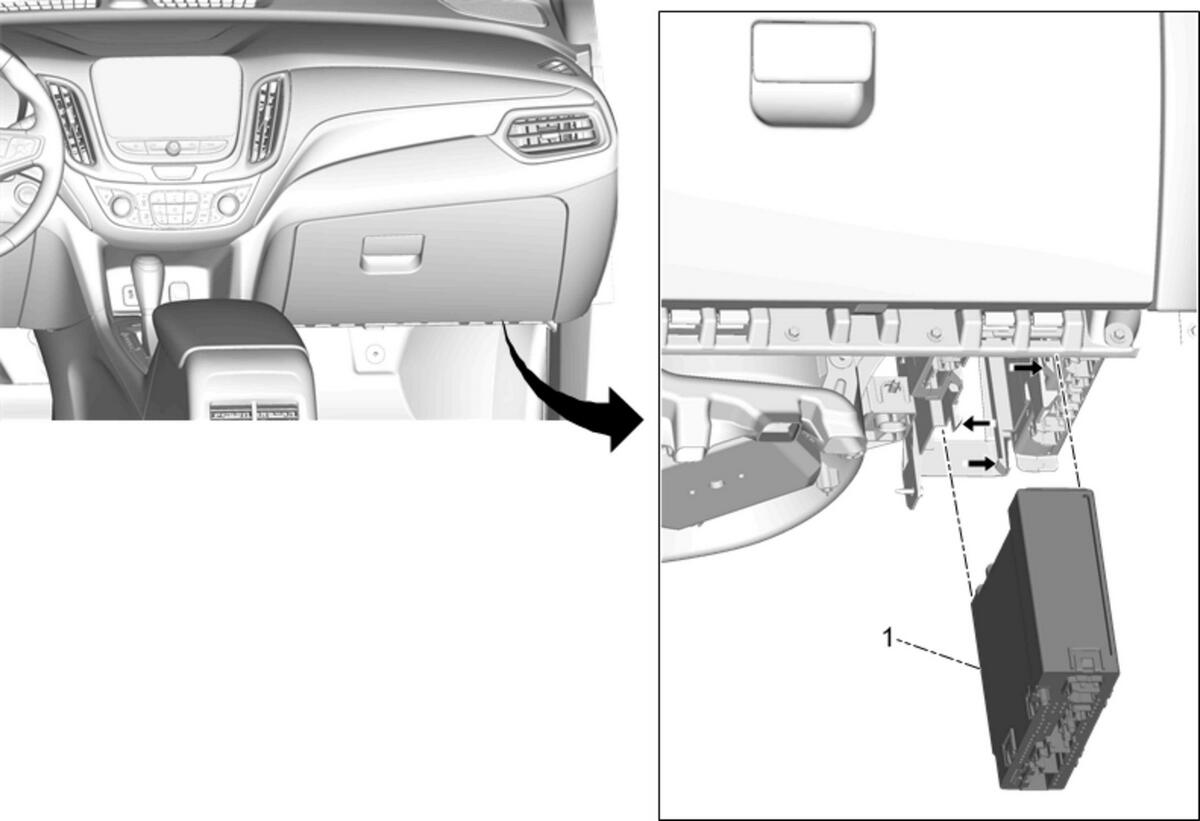

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Before removing the radio, perform the radio reset. Radio Reset Remove the front side door sill garnish molding - right side. Front Side Door Sill Garnish Molding Replacement (Equinox)Front Side Door Sill Garnish Molding Replacement (Terrain) Reposition the front floor panel carpet as necessary.
1	Radio Procedure Disconnect the electrical connectors. Release the retaining tabs. After installing the radio, perform the radio reset. Radio Reset

Callout

Component Name

Preliminary Procedures

Before removing the radio, perform the radio reset. Radio Reset
Remove the front side door sill garnish molding - right side. Front Side Door Sill Garnish Molding Replacement (Equinox)Front Side Door Sill Garnish Molding Replacement (Terrain)
Reposition the front floor panel carpet as necessary.

Radio

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
After installing the radio, perform the radio reset. Radio Reset
