Radio Control Switch Replacement - Steering Wheel (Terrain, Right Front)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

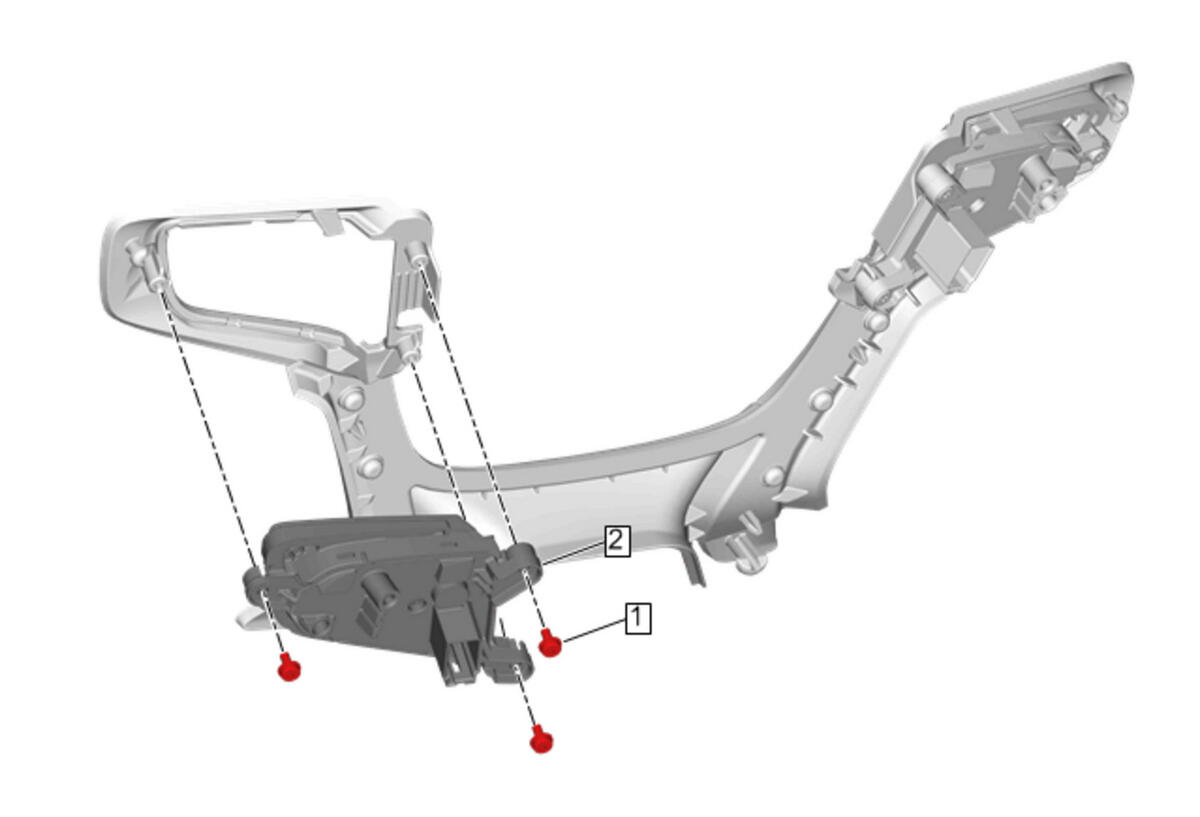

| Callout | Component Name |
|---|---|
| Preliminary Procedure Steering Wheel Spoke Cover Replacement (Terrain) |
|
| 1 | Steering Wheel Spoke Cover Fastener [3x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Radio Control Switch - Steering Wheel Procedure Release the retaining tabs and remove the radio control switch from the steering wheel spoke cover. |
