Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

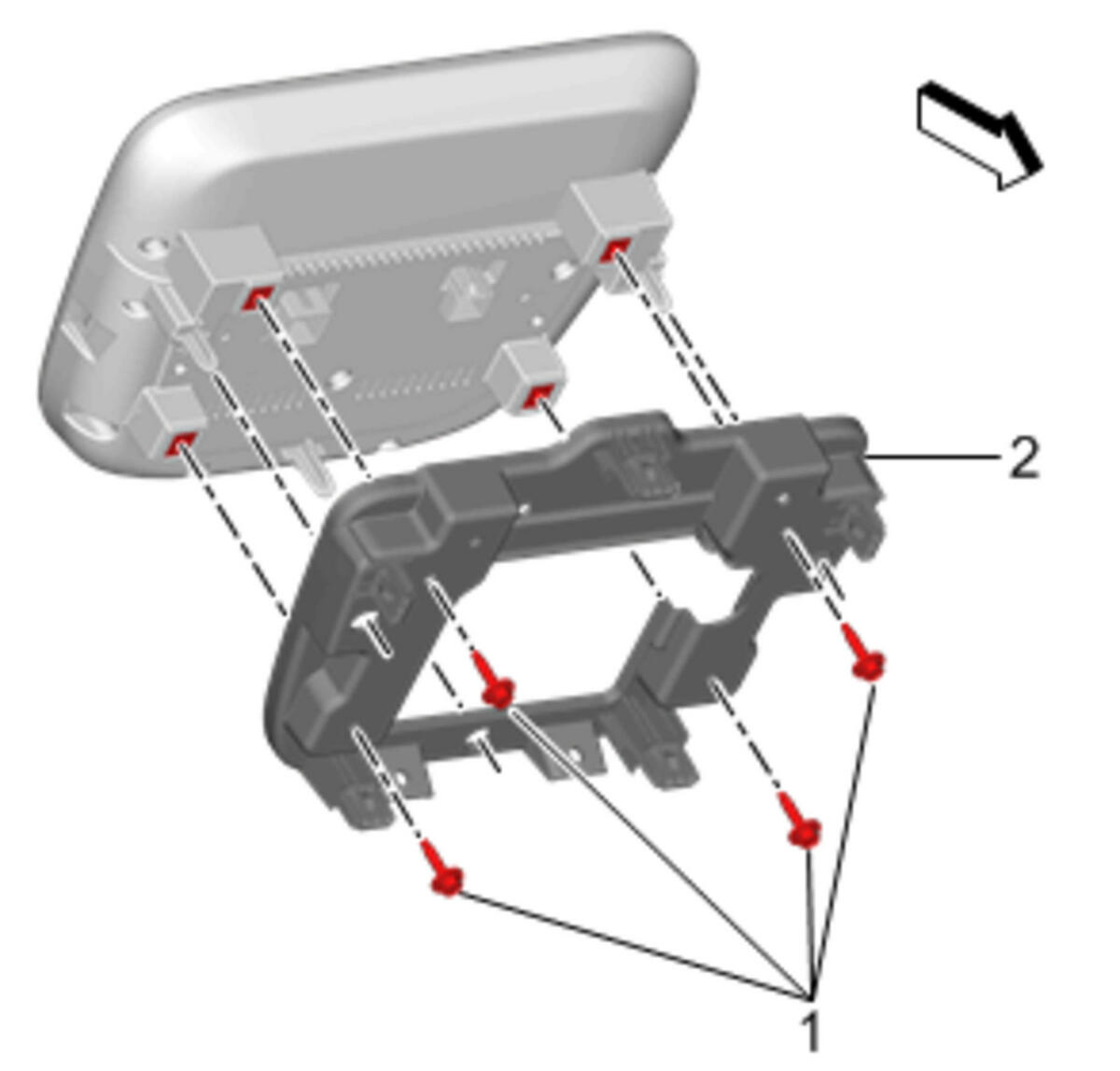

Fig 1: Radio Control Bracket And Bolt

Courtesy of GENERAL MOTORS COMPANY

Install Radio Control Bracket (2)

CAUTION:

Refer to Fastener Caution .

Install Radio Control Bracket Bolt (1) and tighten [4x] 2.5 N.m (22 lb in)

Fig 2: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Install Radio Control Assembly (1)

Fig 3: Radio Control Bracket Bolt

Courtesy of GENERAL MOTORS COMPANY

Install Radio Control Bracket Bolt (1) and tighten [2x] 2.5 N.m (22 lb in)
Install Heater and Air Conditioning User Interface Control - Heater and Air Conditioning User Interface Control Replacement (Equinox)
