Installation Procedure

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

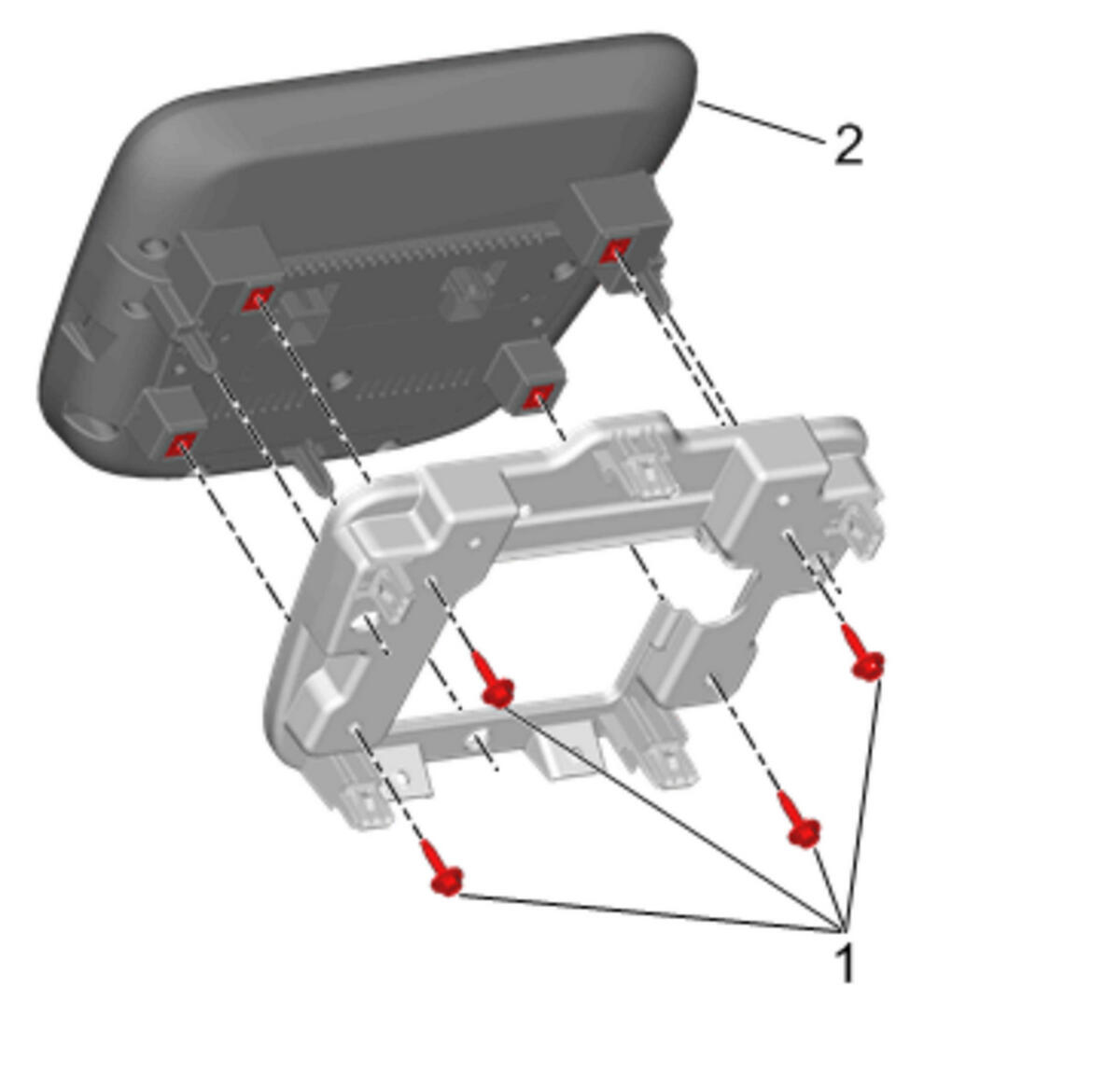

    Fig 1: Radio Control Bracket Assembly And Bolt
    GM4567319Courtesy of GENERAL MOTORS COMPANY
  1. Install Radio Control Assembly (2)
    2. CAUTION:

    Fastener Caution

  2. Install Radio Control Bracket Bolt (1) and tighten [4x] 2.5 N.m (22 lb in)
    3. Fig 2: Radio Control Assembly
    GM4566303Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connectors.
  4. Install Radio Control Assembly (1)
    5. Fig 3: Radio Control Bracket Bolt
    GM4566302Courtesy of GENERAL MOTORS COMPANY
  5. Install Radio Control Bracket Bolt (1) and tighten [4x] 2.5 N.m (22 lb in)
    6. Fig 4: Heater and Air Conditioning User Interface Control
    GM4588499Courtesy of GENERAL MOTORS COMPANY
  6. Heater and Air Conditioning User Interface Control (1)Heater and Air Conditioning User Interface Control Replacement (Equinox)
