Radio Bracket Replacement (Terrain)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

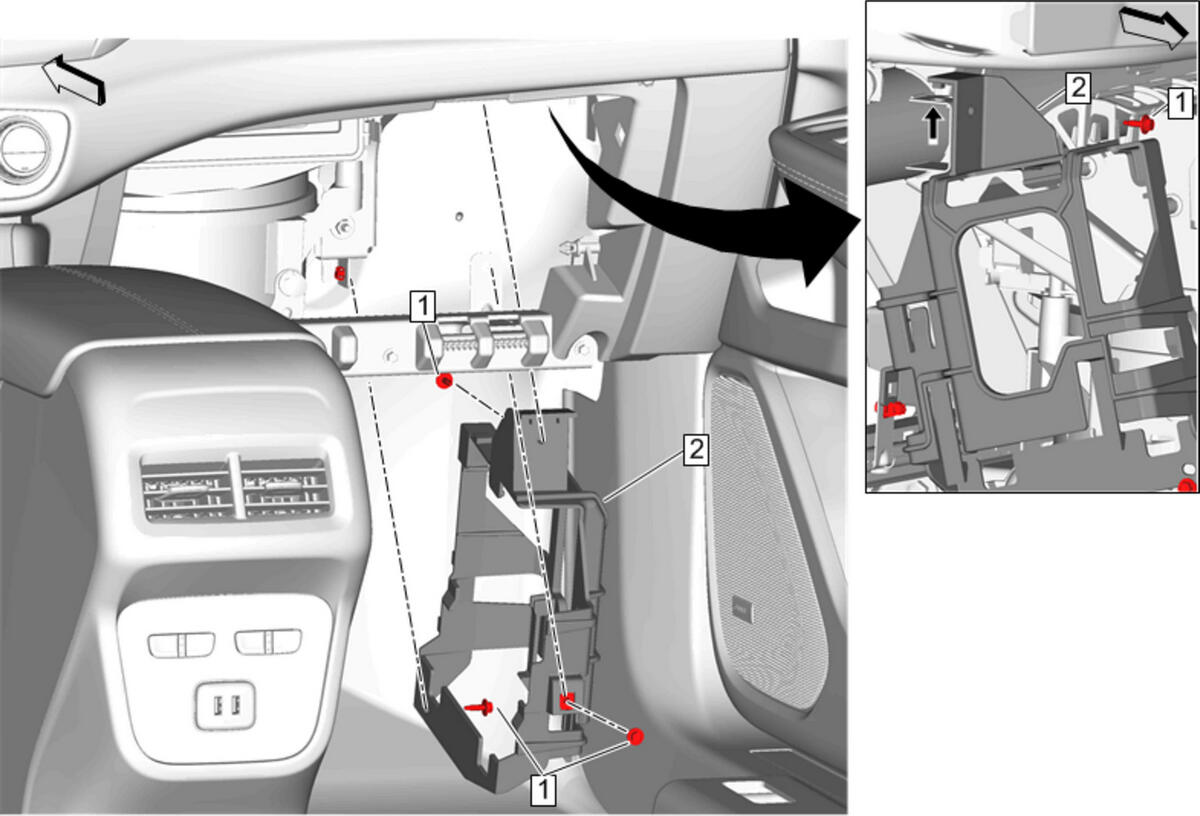

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Door Replacement (Terrain)
1	Radio Bracket Bolt [3x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Disconnect all electrical connectors. Transfer components as necessary. The top of the bracket has 2 locking tabs on an arm that goes on the instrument panel tie bar bracket, lift the arm up and out of the locking holes to release the bracket.

Callout

Component Name

Preliminary Procedure
Instrument Panel Compartment Door Replacement (Terrain)

Radio Bracket Bolt [3x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Radio Bracket

Procedure

Disconnect all electrical connectors.
Transfer components as necessary.
The top of the bracket has 2 locking tabs on an arm that goes on the instrument panel tie bar bracket, lift the arm up and out of the locking holes to release the bracket.
