Radio And Navigation Antenna Cable Replacement

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

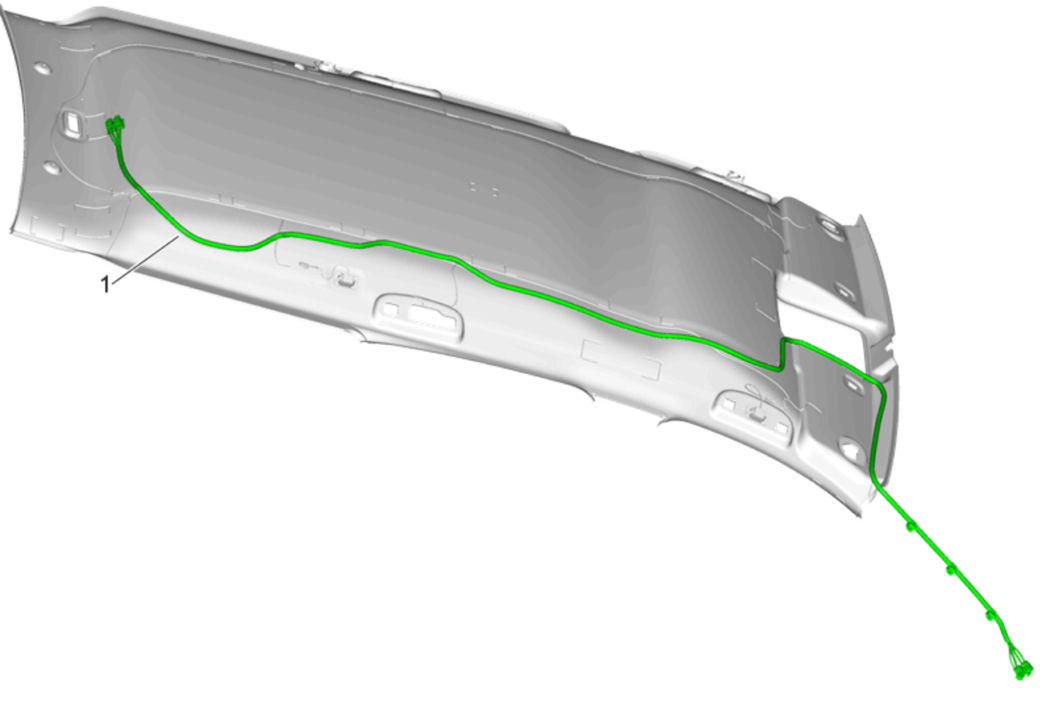

Fig 1: Radio And Navigation Antenna Cable
GM4580394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Headlining Trim Panel Replacement
1 Radio and Navigation Antenna Cable
Procedure
Using an adhesive, secure the harness back onto the headlining trim panel.
NOTE:

Prior to removal, note the routing of the cable to aid in reassembly and ensure proper installation.
