Floor Console Accessory Function Switch Replacement (Equinox)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

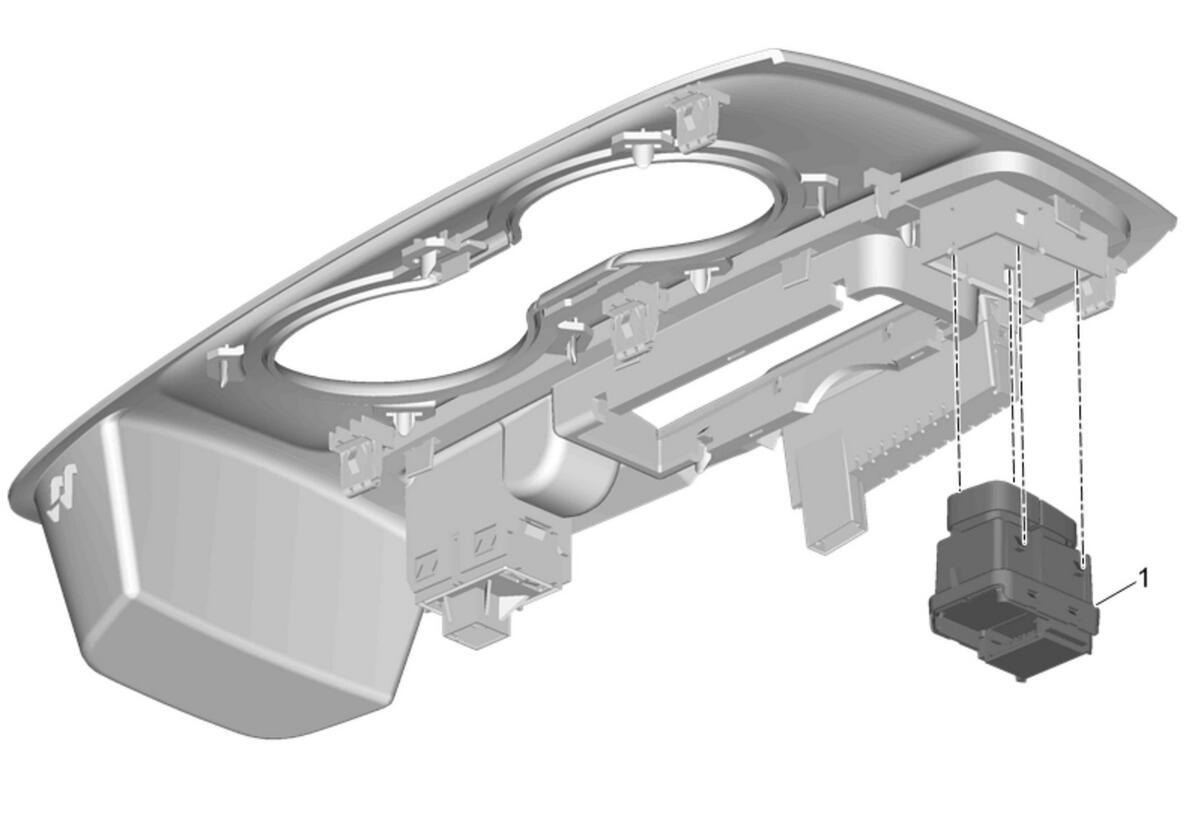

Fig 1: Floor Console Accessory Function Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Trim Plate Replacement (Equinox)
1	Floor Console Accessory Function Switch Procedure Release the retaining tabs. Use a suitable tool.

Callout

Component Name

Preliminary Procedure
Front Floor Console Trim Plate Replacement (Equinox)

Floor Console Accessory Function Switch

Procedure

Release the retaining tabs.
Use a suitable tool.
